關鍵詞： HV9861A , LED驅動 , Supertex

Supertex公司的HV9861A是平均模式恒流控制的LED驅動器,從而大大地改善了LED電流的精度,線路和負載調整精度而不需要回路補償或高邊電流檢測,LED輸出電流精度±3%.主要用在DC/DC或AC/DC LED驅動器,LCD屏的LED背光驅動,通用恒流源,LED顯示屏,建筑和裝飾照明以及LED街道照明.本文介紹了HV9861A主要特性,方框圖,典型應用電路以及21W通用AC輸入電壓LED驅動器演示板主要指標,電路圖,材料清單和PCB布局圖.

The HV9861A is a patented, average-mode, constant current control LED driver IC operating in a constant off-time mode. Unlike the HV9910B, this control IC does not produce a peak-to-average error, and therefore greatly improves the accuracy, line and load regulation of the LED current without any need for loop compensation or highside current sensing. The output LED current accuracy is ±3%.

The IC is equipped with a current limit comparator for hiccup-mode output short circuit protection. Internal over-temperature protection is provided. The internally regulated voltage (VDD) for the HV9861A is 7.5V.

The IC can be powered from a 12 - 450V supply. A PWM dimming input is provided that accepts an external control TTL-compatible signal. The output current can be programmed by an internal 270mV reference, or controlled externally through a 0 - 1.5V dimming input.

The IC is pin-to-pin compatible with the Supertex HV9910B and HV9961, and can be used as a drop-in replacement for many applications to improve the LED current accuracy and regulation.

HV9861A主要特性:

►► Fast average current control

►► Programmable constant off-time switching

►► PWM / linear dimming input

►► Output short circuit protection with skip mode

►► Ambient operating temperature -40OC to +125OC

►► Pin-compatible with the HV9910B and HV9961

HV9861A應用:

►► DC/DC or AC/DC LED driver applications

►► LED backlight driver for LCD displays

►► General purpose constant current source

►► LED signage and displays

►► Architectural and decorative LED lighting

►► LED street lighting

2011-11-2 12:48:02 上傳

下載附件 (26.45 KB)

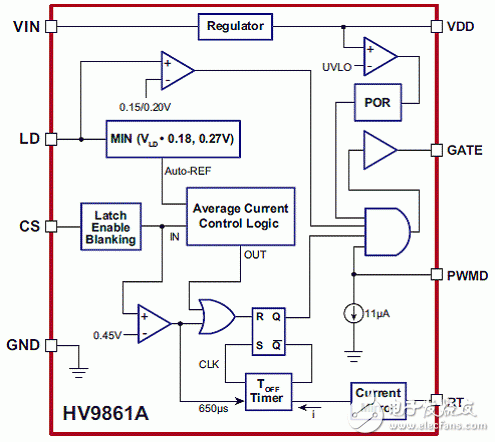

圖1.HV9861A方框圖

2011-11-2 12:48:02 上傳

下載附件 (11.71 KB)

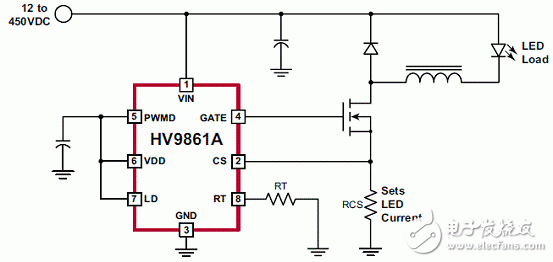

圖2.HV9861A應用電路圖

21W通用AC輸入電壓LED驅動器

21-Watt, Universal, AC LED Driver Demoboard with Accurate Average-Mode, Constant Current Control

The HV9861ADB1 demoboard is a high-brightness LED driver employing the patented average-mode, constant current control scheme by Supertex Inc. The power conversion stage of the HV9861ADB1 consists of a diode bridge rectifier followed by a buck converter operating with fixed off-time of 20μs.

The HV9861ADB1 LED driver features tight regulation of the LED current within a few milliamps over the entire range of the input AC line and the output LED string voltage. The LED current accuracy is almost insensitive to the passive component tolerances, such as the output filter inductance or the timing resistor. The accuracy of the LED current is mainly determined by the internal 270mV ± 3% reference voltage of the HV9861A control IC and by the external current sense resistor tolerance.

(Note, that the linear dimming input of the HV9861A disables switching, when its voltage falls below a 200mV threshold. Expect the LED driver to shut off when the LED current falls below 50 ~ 55mA.)

PWM dimming can be achieved by applying a pulse-widthmodulated square wave signal between the PWMD and GND pins.

The HV9861ADB1 features protection from an output short circuit condition. Open LED protection is inherent, since the output filter capacitor can accept the full rated rectified AC line voltage.

Please, note that the demoboard is not CISPR15 compliant.An additional input EMI filter circuit is required to make the board meet conducted electro-magnetic emission limits.
