ST公司的PWD5F60是先進的電源片上系統，集成了柵極驅動器和雙路半橋配置的四個N溝功率MOSFET，其RDS（ON）=1.38?，BVDSS=600V;驅動器工作電壓10V-20V，負載電流高達1A，主要用在工業風扇和泵，烹飪罩和氣體加熱器，吹風機，工業驅動和工廠自動化以及電源單元。本文介紹了PWD5F60主要特性，框圖和應用框圖，以及評估板EVALPWD5F60主要特性和指標，電路圖，材料清單和PCB設計圖。

High density power driver - high voltage full bridge with integrated comparators

The PWD5F60 is an advanced power system-in package integrating gate drivers and four N-channel power MOSFETs in dual half-bridge configuration.

The PWD5F60 is an advanced power system-in-package integrating gate drivers and four N-channel power MOSFETs in a compact QFN package.

The integrated power MOSFETs have an RDS（ON） of 1.38 ? and 600 V drain-source breakdown voltage. The embedded gate drivers feature two comparators that can be used for peak current control or overcurrent protection and integrate bootstrap diodes. This allows to effectively drive loads in a tiny space and to drastically reduce external components and bill of materials.

The EVALPWD5F60 demonstrates how to use the PWD5F60 to drive a single-phase load in full-bridge topology. This allows control of both the direction and the value of the current flowing into the load. Typical applications that can benefit from the high integration of the PWD5F60 are， for example， single-phase BLDC motors and fans.

The board has a very small footprint and an optimized layout thanks to the integrated features of the PWD5F60， and it can be simply run by applying the supply voltages and a direction signal.

The board allows easy selection and modification of the relevant external component values， enabling fast performance evaluation under different applicative conditions as well as fine tuning of final application components.

PWD5F60主要特性：

Power system-in-package integrating gate drivers and power MOSFETs featuring： RDS（ON） = 1.38 ?

BVDSS = 600 V

2 embedded comparators

Very low area occupation， all active devices in SMT technology and no heatsink

Fast-decay or slow-decay on-board constant OFF-time peak current control

PWM voltage mode control with overcurrent protection possible via external logic signals

Driver supply voltage range： 10 V to 20 V

UVLO protection on low-side and high-side

3.3 V to 15 V compatible inputs with hysteresis and pull-down

Internal bootstrap diode

Bill of materials reduction

Very compact and simplified layout

Flexible， easy and fast design

RoHS compliant

Load current up to 1 A

PWD5F60應用：

? Industrial fans and pumps

? Cooking hoods and gas heaters

? Blowers

? Industrial drives and factory automation

? Power supply units

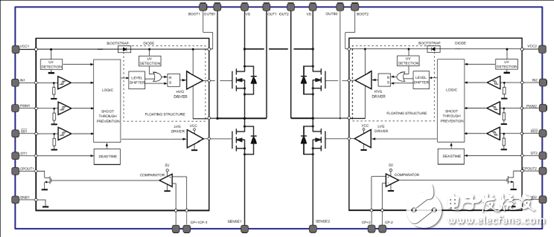

圖1.PWD5F60框圖

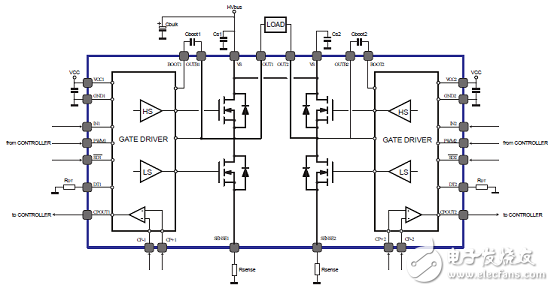

圖2.PWD5F60通用應用框圖

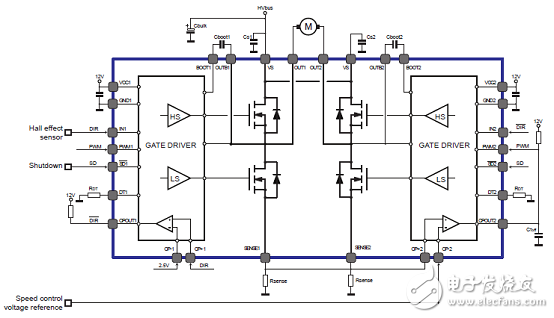

圖3.PWD5F60電流模式馬達控制框圖

評估板EVALPWD5F60

The EVALPWD5F60 demonstrates how to usethe PWD5F60 to drive a single-phase load in fullbridgetopology. This allows control of both thedirection and the value of the current flowing intothe load. Typical applications that can benefitfrom the high integration of the PWD5F60 are， forexample， single-phase BLDC motors and fans.

The board has a very small footprint and anoptimized layout thanks to the integrated featuresof the PWD5F60， and it can be simply run byapplying the supply voltages and a directionsignal.

The board allows easy selection and modificationof the relevant external component values，enabling fast performance evaluation underdifferent applicative conditions as well as finetuning of final application components.

評估板EVALPWD5F60主要特性：

? Power system-in-package integrating gatedrivers and power MOSFETs featuring：

– RDS（ON） = 1.38 Ω

– BVDSS = 600 V

– 2 embedded comparators

? Very low area occupation， all active devices inSMT technology and no heatsink

? Fast-decay or slow-decay on-board constantOFF-time peak current control

? PWM voltage mode control with overcurrentprotection possible via external logic signals

? Driver supply voltage range： 10 V to 20 V

? UVLO protection on low-side and high-side

? 3.3 V to 15 V compatible inputs with hysteresisand pull-down

? Internal bootstrap diode

? Bill of materials reduction

? Very compact and simplified layout

? Flexible， easy and fast design

? RoHS compliant

? Load current up to 1 A

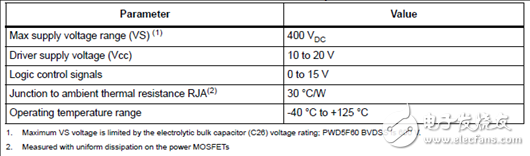

評估板EVALPWD5F60主要指標：

圖4.評估板EVALPWD5F60外形圖

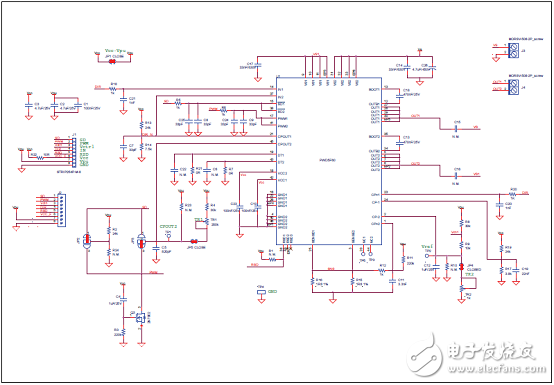

圖5.評估板EVALPWD5F60電路圖

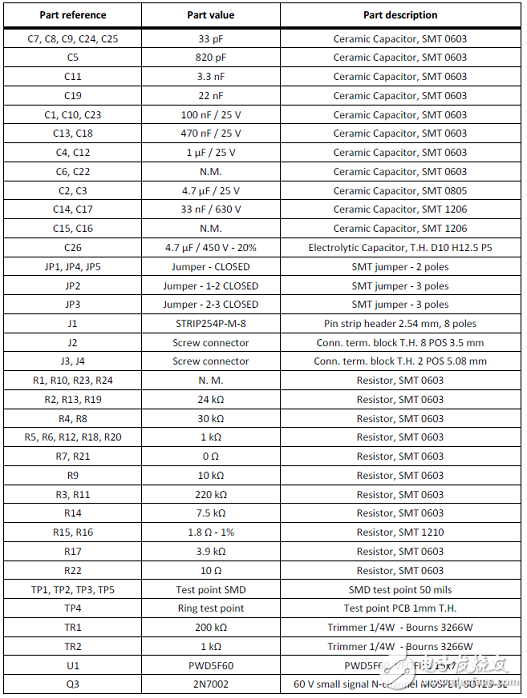

評估板EVALPWD5F60材料清單：

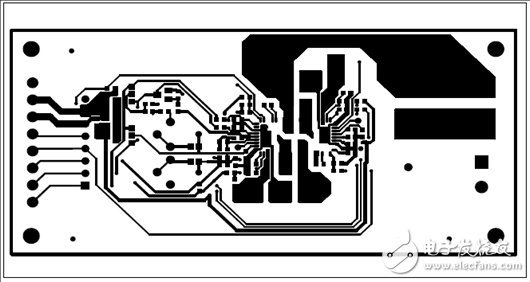

圖6.評估板EVALPWD5F60 PCB布局圖（頂層）

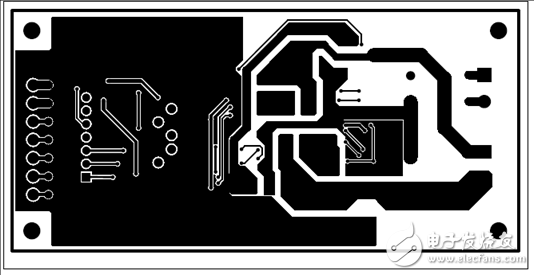

圖7.評估板EVALPWD5F60 PCB布局圖（底層）

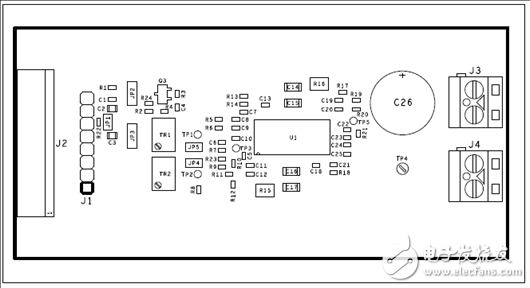

圖8.評估板EVALPWD5F60 PCB元件布局圖
