TI公司的CAN4550-Q1是集成了收發器的汽車控制器局域網絡(CAN)靈活數據速率(FD)控制器,支持?jǐn)?shù)據速率高達標8Mbps,滿足ISO11898-1:2015高速CAN數據鏈接層的指標,滿足ISO11898–2:2016高速CAN指標.器件通過串行外設接口(SPI)提供CAN總線和系統處理器間接口,支持經典CAN和CAN FD.CAN4550-Q1提供CAN FD收發器功能:差分發送數據到總線和從總線差分接收數據.器件包括許多保護特性,使得設備和CAN總線魯棒性.CAN總線工作時有兩個邏輯狀態:隱性和顯性.在隱性總線狀態,總線通過每個節點的接收器高阻抗內部輸入電阻偏壓到共通節點的2.5V,隱性狀態等效于邏輯高電平,可是空閑狀態.而在顯性總線狀態,總線由一個或多個驅動器驅動,電流通過端電阻,在總線上產生差分電壓.顯性狀態等效于邏輯低電平.CAN4550-Q1滿足汽車應用的規范AEC Q100,工作溫度–40℃到125℃,工作模式包括正常,待機,睡眠和故障等,3.3V-5V輸入/輸出邏輯支持微處理器.主要用在人體電子學和照明,信息娛樂和集群和工業運輸.本文介紹了CAN4550-Q1主要特性,功能框圖和簡化電路,CAN收發器框圖,SPI和數字IO框圖,典型CAN應用電路以及評估模塊TCAN4550 EVM主要特性,電路圖和材料清單.

The TCAN4550-Q1 is a CAN FD controller with anintegrated CAN FD transceiver supporting data ratesup to 8 Mbps. The CAN FD controller meets thespecifications of the ISO11898-1:2015 high speedcontroller area network (CAN) data link layer andmeets the physical layer requirements of theISO11898–2:2016 high speed CAN specification. TheTCAN4550-Q1 provides an interface between theCAN bus and the system processor through serialperipheral interface (SPI), supporting both classicalCAN and CAN FD, allowing port expanision or CANsupport with processors that do not support CAN FD.

The TCAN4550-Q1 provides CAN FD transceiverfunctionality: differential transmit capability to the busand differential receive capability from the bus. Thedevice supports wake up via local wake up (LWU)and bus wake using the CAN bus implementing theISO11898-2:2016 Wake Up Pattern (WUP).The device includes many protection featuresproviding device and CAN bus robustness. Thesefeatures include failsafe mode, internal dominantstate timeout, wide bus operating range and a timeoutwatchdog as examples.

The TCAN4550-Q1 is a CAN FD controller with an integrated CAN FD transceiver supporting data rates up to 8Mbps. The CAN FD controller meets the specifications of the ISO 11898-1:2015 high speed Controller AreaNetwork (CAN) data link layer and meets the physical layer requirements of the ISO 11898-2:2016 High SpeedController Area Network (CAN) specification providing an interface between the CAN bus and the CAN protocolcontroller supporting both classical CAN and CAN FD up to 5 megabits per second (Mbps). The TCAN4550-Q1provides CAN FD transceiver functionality: differential transmit capability to the bus and differential receivecapability from the bus. The device includes many protection features providing device and CAN bus robustness.

The device can also wake up via remote wake up using CAN bus implementing the ISO 11898-2:2016 Wake UpPattern (WUP). Input/Output support for 3.3 V and 5 V microprocessors using VIO pin for seamless interface. TheTCAN4550-Q1 has a Serial Peripheral Interface (SPI) that connects to a local microprocessor for the device ’sconfiguration; transmission and reception of CAN frames. The SPI interface supports clock rates up to 18 MHz.

The CAN bus has two logical states during operation: recessive and dominant.In the recessive bus state, the bus is biased to a common mode of 2.5 V via the high resistance internal inputresistors of the receiver of each node. Recessive is equivalent to logic high. The recessive state is also the idlestate.

In the dominant bus state, the bus is driven differentially by one or more drivers. Current flows through thetermination resistors and generates a differential voltage on the bus. Dominant is equivalent to logic low. Adominant state overwrites the recessive state.During arbitration, multiple CAN nodes may transmit a dominant bit at the same time. In this case the differentialvoltage of the bus will be greater than the differential voltage of a single driver.

CAN4550-Q1主要特性:

? AEC Q100: qualified for automotive applications
– Temperature grade 1: –40℃ to 125℃ TA
? CAN FD controller with integrated CAN FDtransceiver and serial peripheral interface (SPI)
? CAN FD controller supports both ISO 11898-1:2015 and Bosch M_CAN Revision 3.2.1.1
? Meets the requirements of ISO 11898-2:2016
? Supports CAN FD data rates up to 8 Mbps with upto 18 MHz SPI clock speed
? Classic CAN backwards compatible
? Operating modes: normal, standby, sleep, andfailsafe
? 3.3 V to 5 V input/output logic support formicroprocessors
? Wide operating ranges on CAN bus
– ±58 V bus fault protection
– ±12 V common mode
? Integrated low drop out voltage regulator suppling5 V to CAN transceiver and up to 70 mA forexternal devices
? Optimized behavior when unpowered
– Bus and logic terminals are high impedance(No load to operating bus or application)
– Power up and down glitch free operation

CAN4550-Q1應用:

? Body electronics and lighting
? Infotainment and cluster
? Industrial transportation

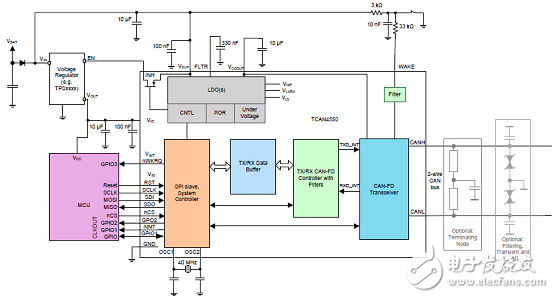

圖1.CAN4550-Q1簡化電路:MCU CLKIN

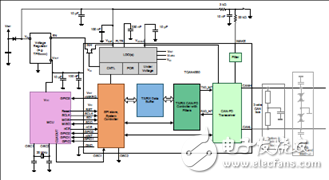

圖2.CAN4550-Q1簡化電路:晶體

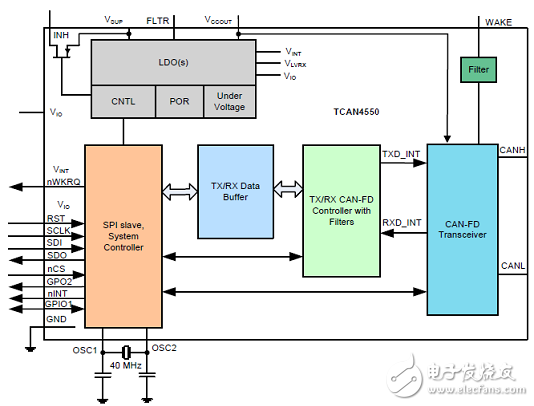

圖3.CAN4550-Q1功能框圖

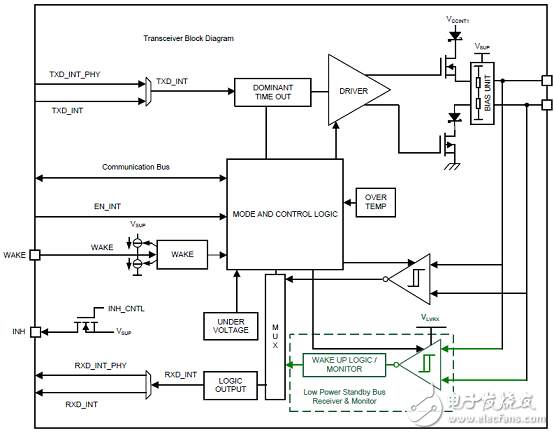

圖4.CAN收發器框圖

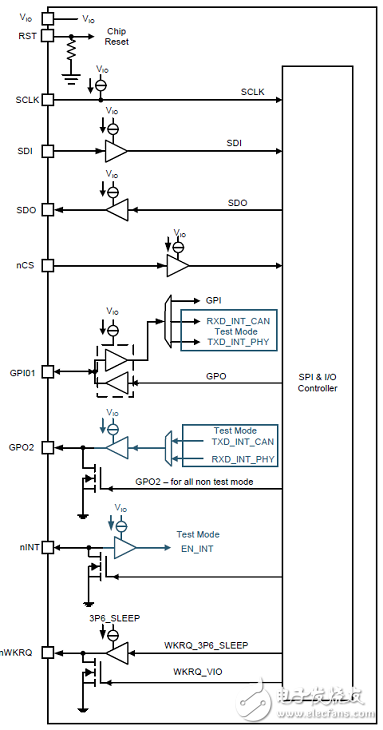

圖5.CAN4550-Q1 SPI和數字IO框圖

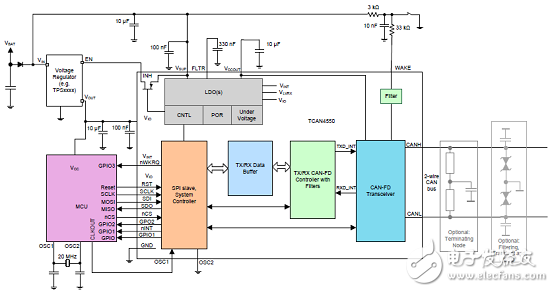

圖6.CAN4550-Q1典型CAN應用:3.3VuC和晶體

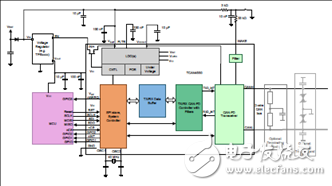

圖7.CAN4550-Q1典型CAN應用:3.3VuC和MCU時鐘

評估模塊TCAN4550 EVM

This user’s guide describes the TCAN4550 evaluation module (EVM). This EVM helps designers evaluatedevice performance, support fast development, and analyze Controller Area Network with Flexible Datarate (CAN FD) systems using TCAN4550 CAN FD physical layer transceiver devices.

The TCAN4550 EVM provides the user with the ability to evaluate the TI TCAN4550 CAN FD Controllerwith integrated CAN transceiver devices. Any MCU or SPI controller with an I/O voltage of 3.3 V or 5 Vmay be connected to the EVM through a standard interface header. The EVM features a polarity-protectedand EMC-filtered supply voltage that allows the EVM to operate from an external voltage from 6 V to 24 V.

A dual-channel LDO creates a 5-V, general-purpose voltage rail to source the LEDs and supporting ICs,and a variable VIO voltage rail that can be set to 5 V or 3.3 V to match the MCU signal level requirements.

The VIO or 5-V rail is also designed to source the supply voltage for the connected MCU to evaluate sleepmode and wake-up events.

評估模塊TCAN4550 EVM主要特性:

? CAN FD controller with integrated CAN transceiver
? Operates from a battery voltage input VBAT (6 V to 24 V)
? Polarity protected and EMC filtered supply voltage
? Dual-channel LDO
– Selectable VIO (5-V, or 3.3-V) supply rails
– General-purpose 5-V supply rail
– Error monitoring and current-sense features
? CAN bus header and industry-standard DB-9 connector
? TVS diode pad (not populated)
? CAN bus transient signal injection/monitoring header
? CAN bus termination with disconnect headers
? Common-mode choke (bypassed with 0-Ω resistors by default)
? Status LEDs
? MCU interface header (SPI, GPIO, VIO, and 5-V)
? Reset push-button switch
? Configuration DIP switches for support of multiple use pins
? Crystal oscillator (40 MHz)
? External clock input and output SMA connectors
? High-voltage Inhibit and Wake signal header
? WAKE push-button switch

圖8.評估模塊TCAN4550 EVM MCU接口(SPI/GPIO)特性

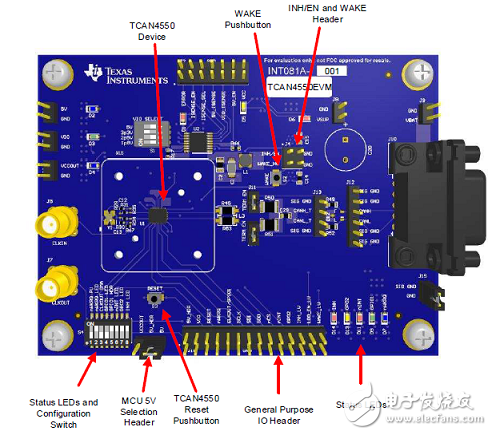

圖9.評估模塊TCAN4550 EVM外形圖(正面)

圖10.評估模塊TCAN4550 EVM外形圖(背面)

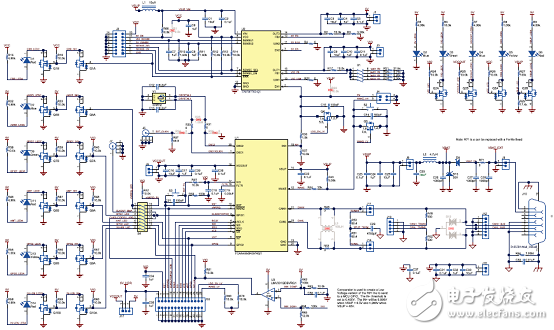

圖11.評估模塊TCAN4550 EVM電路圖

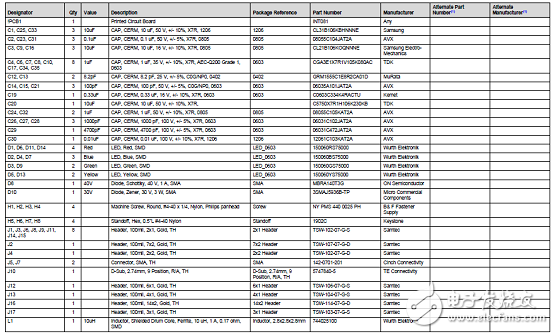

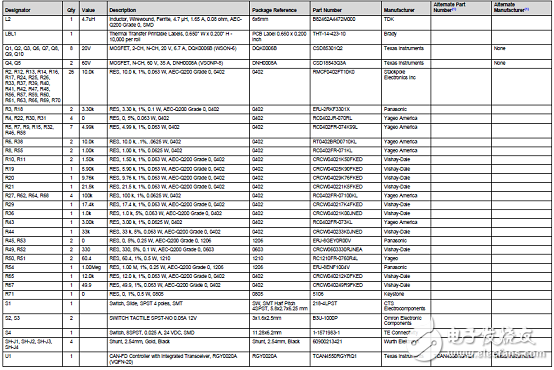

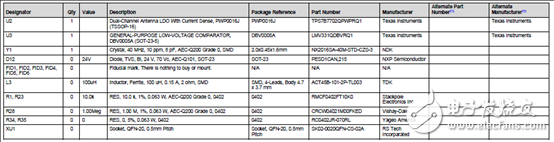

評估模塊TCAN4550 EVM材料清單:
