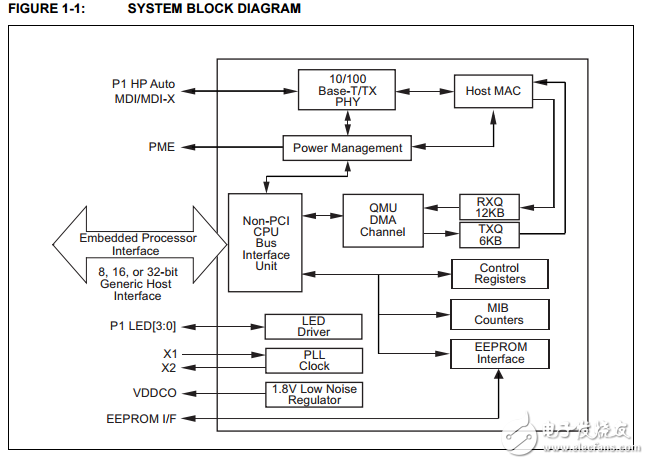

The KSZ8851M-series is a single-port controller chip with a non-PCI CPU interface and is available in 8/16-bit and 32- bit bus designs. This data sheet describes the 128-pin PQFP KSZ8851-16/32MQL for applications requiring high-performance from single-port Ethernet Controller with 8/16-bit or 32-bit generic processor interface. The KSZ8851M offers the most cost-effective solution for adding high-throughput Ethernet connectivity to traditional embedded systems. The KSZ8851M is a single-chip， mixed analog/digital device offering Wake-on-LAN technology for effectively addressing Fast Ethernet applications. It consists of a Fast Ethernet MAC controller， an 8-bit， 16-bit， and 32-bit generic host processor interface and incorporates a unique dynamic memory pointer with 4-byte buffer boundary and a fully usable 18KB for both TX （allocated 6KB） and RX （allocated 12KB） directions in host buffer interface. The KSZ8851M is designed to be fully compliant with the appropriate IEEE 802.3 standards. An industrial temperaturegrade version of the KSZ8851M， the KSZ8851MQLI， is also available. Physical signal transmission and reception are enhanced through the use of analog circuitry， making the design more efficient and allowing for lower-power consumption. The KSZ8851M is designed using a low-power CMOS process that features a single 3.3V power supply with options for 1.8V， 2.5V， or 3.3V VDD I/O. The device includes an extensive feature set that offers management information base （MIB） counters and CPU control/data interfaces with single bus timing. The KSZ8851M includes unique cable diagnostics feature called LinkMD?。 This feature determines the length of the cabling plant and also ascertains if there is an open or short condition in the cable. Accompanying software enables the cable length and cable conditions to be conveniently displayed. In addition， the KSZ8851M supports Hewlett Packard （HP） Auto-MDIX， thereby eliminating the need to differentiate between straight or crossover cables in applications..
