AC-DC開關(guān)電源 120W

General Description Features is a highly integrated current mode PWM control IC optimized for high performance， low standby power and cost effective offline flyback converter applications. PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition， the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved.VDD low startup current and low operating current contribute to a reliable power on startup design with 2. A large value resistor could thus be used in the startup circuit to minimize the standby power. The internal slope compensation improves system large signal stability and reduces the possible subharmonic oscillation at high PWM duty cycle output. Leading-edge blanking on current sense input removes the signal glitch due to snubber circuit diode reverse recovery and thus greatly reduces the external component count and system cost in the design. offers complete protection coverage with automatic self-recovery feature including Cycle-by-Cycle current limiting （OCP）， over load protection （OLP）， VDD over voltage clamp and under voltage lockout （UVLO）。

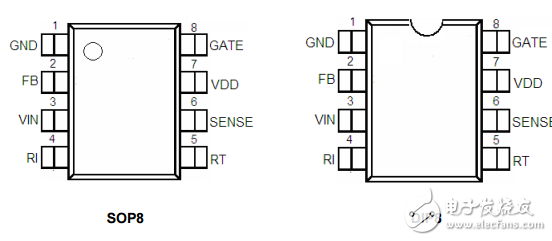

The Gate-drive output is clamped at 16V to protect the power MOSFET. In to reach constant output power limit over universal AC input range. Excellent EMI performance is achieved with frequency shuffling technique together with soft switching control at the totem pole gate drive output. Tone energy at below 20KHZ is minimized in the design and audio noise is eliminated during operation. ●Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design ●Audio Noise Free Operation ●External Programmable PWM Switching Frequency ●Internal Synchronized Slope Compensation ●Low VDD Startup Current （3μA） and Low Operating Current （1.8mA） ★External programmable over temperature protection （OTP） ★With or without On-chip VDD OVP for system OVP ★Under Voltage Lockout with Hysteresis （UVLO） ★Gate Output Maximum Voltage Clamp （16V） ★ Line Input Compensated Cycle-by-Cycle Over-current Threshold Setting For Constant Output current Limiting Over Universal Input Voltage Range（OCP）。 ★Over load Protection （OLP） ● Available in SOP8 and DIP8 package Typical Application Offline AC/DC flyback converter for ? Battery Charger ? PC/TV/Set-Top Box Power Supplies ? Laptop Power Adaptor ? Open-frame SMPS LY 6202
