如何以及為什么使用PIN二極管的射頻開關

　　開關射頻電源在便攜式應用中是具有挑戰(zhàn)性的機電開關由于尺寸，成本和速度的考慮。雖然PIN二極管提供了一些獨特的優(yōu)勢相對于其他非機械的選擇，如CMOS開關和MEMS結構，他們很難設計成一個電路，除非他們的特點是清楚地理解。

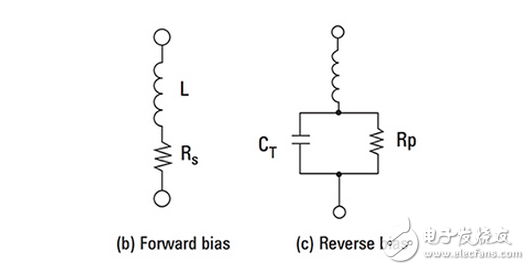

　　本文將介紹射頻開關的挑戰(zhàn)，并描述PIN二極管操作的基本知識。然后，它將顯示如何設計與PIN二極管，然后提供一些現(xiàn)實世界的PIN二極管的例子，以顯示該技術是如何推進。

　　The RF switching challenge

　　In many applications， it is necessary to switch the RF signal path to route and connect to different antennas， amplifiers， and filters. This need for more switching with higher performance is only growing with the development of MIMO， multiband wireless devices （5G）， and other advanced technologies， especially for portable and battery-powered devices.

　　Since these switches must work into the gigahertz region and higher， nothing about them is simple： their design， their underlying technology， the layout on the PC board， or matching their performance to the application priorities.

　　Each of these technologies offers tradeoffs in key performance parameters such as bandwidth， insertion loss， isolation， switching speed， and power handling （Figure 1）。

　?。∟ote： “hybrid” switches combine PIN diodes and FET-based components.）
