建立一個交流/直流轉換器是易與PI Expert

　　交流電源供電的孤立的離線開關需要在許多應用中，從家用電器到適配器對電池充電。這些孤立的AC / DC轉換器從頭開始設計可以壓倒一切，消耗更多的時間，并可以花費更多。因此，為了使這項工作容易，靈活，成本效益，電源集成創造了一套工具和資源。除了幫助設計師開發和建立這些離線AC / DC開關在市場上有競爭力的價格，電力集成的工具和資源，同時提高設計師在第一次嘗試通過監管要求的機會，從而消除了開發和交付的麻煩。

　　為了實現這一目標，供應商已經準備兩集成開關IC的家庭，即電源轉換和TinySwitch III（TNY253 / 4 / 5和tny274gn或tny278gn），使電源設計人員的任何應用程序在177 W而TinySwitch部分是專為需要25瓦或更少的輸出功率AC / DC開關應用的構建AC / DC開關，TOPSwitch的JX家族是專為AC / DC解決方案高達177 W和建設交流/直流使用這兩個系列的成員交換機的設計，電源集成了免費設計的軟件稱為PI Expert。

　　Low-power AC/DC solutions

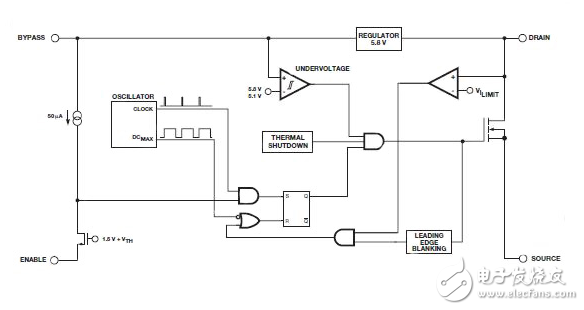

　　However， before we start exploring the PI Expert design software; let’s take a look at the functionalities integrated on-chip for switcher ICs TinySwitch-III and TOPSwitch-JX. Since TinySwitch is tailored for AC/DC solutions below 25 W， we will first investigate the TinySwitch landscape. As shown in Figure 1， TinySwitch combines a 700 V power MOSFET， oscillator， high-voltage switched current source， current limit， and thermal shut-down circuitry on a single CMOS chip. As per the product data sheet， the start-up and run-on power is derived from the drain voltage， thereby eliminating the need for a transformer bias winding and its associated circuitry. It is rated to consume only about 80 mW at no load from 265 VAC input. A simple on/off control scheme also eliminates the need for loop compensation， according to the supplier.
