設計FPGA和ASIC的高效電源解決方案

　　現場可編程門陣列（FPGA）和專用集成電路是現代電子設備中常見的設備。為這些設備供電需要特別注意，因為復雜的初始條件，如在負載點（油），瞬態行為和開啟/關閉規格嚴格監管。繞過或去耦設備上的電源（根據設備的應用程序）也需要仔細考慮。最后，功耗、占用空間和成本將影響設計。

　　如圖1所示，需要兩個或兩個以上的電壓來為FPGA或ASIC供電。核心的電壓通常在1到2.5伏之間，而I/O的其他電壓大約為3.3 V。它也可能需要一個第三的低噪聲，低紋波電壓，大約2.5 V或3.3 V，取決于各個家庭，以輔助電路供電。

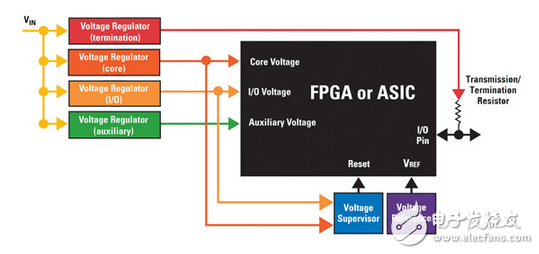

　　Figure 1： Two or more voltages are needed to power an FPGA or an ASIC. One voltage for the core and the other voltage for the I/Os. It may also require a third， low-noise， low-ripple voltage to power the auxiliary circuits.

　　While the applied voltages to the FPGA/ASIC device are fixed， the operating current for each of these voltages is not. It depends on many application-related factors such as FPGA speed， capacity utilization， and so on. A power design feature article byNational Semiconductor application engineer David Baba1 focuses on considerations for FPGAs and ASICs and provides some insight into powering these devices. It shows that the operating current for an FPGA could vary from as little as 100 mA to as high as 20 A.
