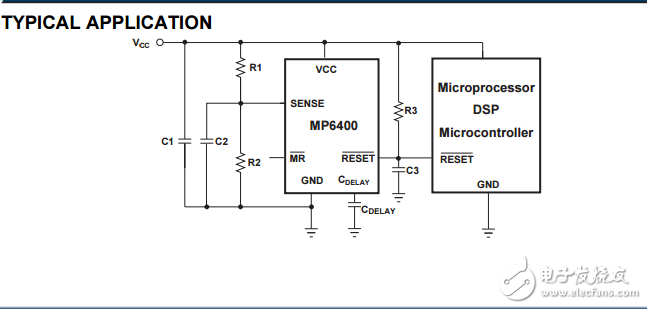

The MP6400 family is the microprocessor （μP） supervisory circuit which can monitor and provide reset function for system voltages from 0.4V. When either the SENSE voltage falls below its threshold （VIT） or the voltage of manual reset （ M R ） is pulled to a logic low， the R E S E T signal will be asserted. The reset voltage can be factory-set for standard voltage rails from 0.9V to 5V， while the MP6400DG（J）- 01 reset voltage is adjustable with an external resistor divider. When SENSE voltage and M R exceed their thresholds， R E S E T is driven to a logic high after a user-programmable delay time. The MP6400 has a very low quiescent current of 1.6μA typically， which makes it ideal suitable for battery-powered applications. It provides a precision reference to achieve ±1% threshold accuracy. The reset delay time can be selected by a capacitor which is connected between CDELAY and GND， allowing the user to select any delay time from 2.1ms to 10s. 380ms delay time is selected by connecting the CDELAY pin to VCC， while 24ms delay time by leaving the CDELAY pin float. MP6400 is available in TSOT23 and 2mm×2mm 6-pin QFN packages.
