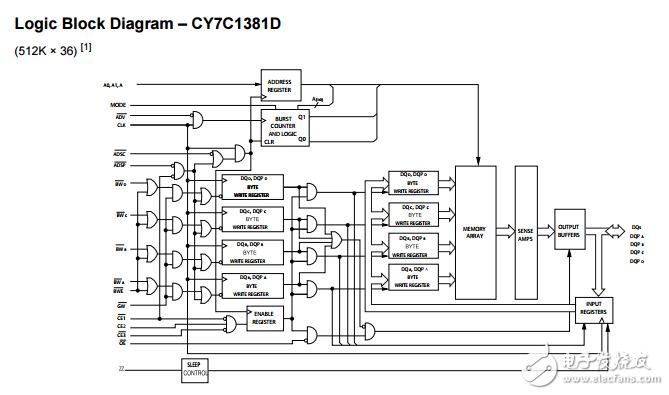

The CY7C1381D/CY7C1383D/CY7C1383F is a 3.3 V， 512K × 36 and 1M × 18 synchronous flow through SRAMs， designed to interface with high speed microprocessors with minimum glue logic. Maximum access delay from clock rise is 6.5 ns （133 MHz version）。 A 2-bit on-chip counter captures the first address in a burst and increments the address automatically for the rest of the burst access. All synchronous inputs are gated by registers controlled by a positive edge triggered clock input （CLK）。 The synchronous inputs include all addresses， all data inputs， address pipelining chip enable （CE1）， depth-expansion chip enables （CE2 and CE3）， burst control inputs （ADSC， ADSP， and ADV）， write enables （BWx， and BWE）， and global write （GW）。 Asynchronous inputs include the output enable （OE） and the ZZ pin. The CY7C1381D/CY7C1383D/CY7C1383F allows interleaved or linear burst sequences， selected by the MODE input pin. A HIGH selects an interleaved burst sequence， while a LOW selects a linear burst sequence. Burst accesses can be initiated with the processor address strobe （ADSP） or the cache controller address strobe （ADSC） inputs. Address advancement is controlled by the address advancement （ADV） input. Addresses and chip enables are registered at rising edge of clock when address strobe processor （ADSP） or address strobe controller （ADSC） are active. Subsequent burst addresses can be internally generated as controlled by the advance pin （ADV）。 CY7C1381D/CY7C1383D/CY7C1383F operates from a +3.3 V core power supply while all outputs operate with a +2.5 V or +3.3 V supply. All inputs and outputs are JEDEC-standard and JESD8-5-compatible. For a complete list of related documentation， click here.
