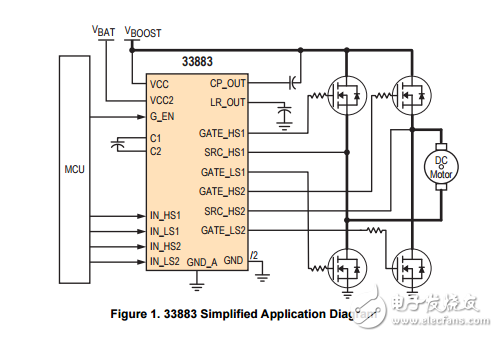

The 33883 is an H-bridge gate driver （also known as a full-bridge pre-driver） IC with integrated charge pump and independent high and low side gate driver channels. The gate driver channels are independently controlled by four separate input pins， thus allowing the device to be optionally configured as two independent high side gate drivers and two independent low side gate drivers. The low side channels are referenced to ground. The high side channels are floating. The gate driver outputs can source and sink up to 1.0 A peak current pulses， permitting large gate-charge MOSFETs to be driven and/or high pulse- width modulation （PWM） frequencies to be utilized. A linear regulator is incorporated， providing a 15 V typical gate supply to the low side gate drivers. This device powered by SMARTMOS technology.
