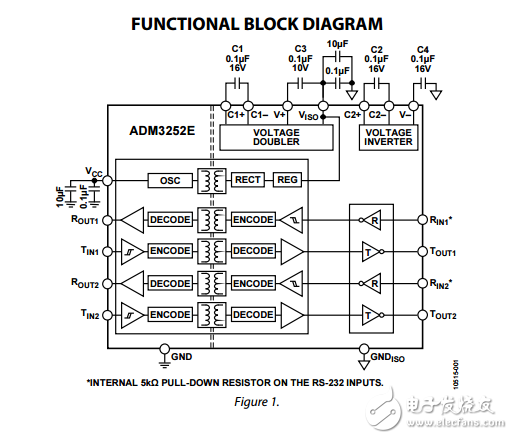

The ADM3252E is a high speed， 2.5 kV， fully isolated， dualchannel RS-232/V.28 transceiver device that is operational from a single 3.3 V or 5 V power supply. Because of high ESD protection on the RIN1， RIN2， TOUT1， and TOUT2 pins， the ADM3252E is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently plugged and unplugged. The ADM3252E provides four independent isolation channels using the integrated and isolated power of isoPower?。 There is no requirement to use a separate isolated dc-to-dc converter. Chip scale transformer iCoupler? technology from Analog Devices， Inc.， is used for both the isolation of the logic signals and the integrated dc-to-dc converter. The result is a total isolation solution. isoPower technology in the ADM3252E uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board （PCB） layout to meet emissions standards. Refer to the AN-0971 Application Note， Recommendations for Control of Radiated Emissions with isoPower Devices， for details on board layout considerations. The ADM3252E conforms to the EIA/TIA-232E and ITU-T V.28 specifications and operates at data rates of up to 460 kbps. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter， permitting operation from a single 3.3 V or 5 V supply. The ADM3252E is available in a 44-ball， chip scale package ball grid array （CSP_BGA） and is specified over the ?40°C to +85°C temperature range.
