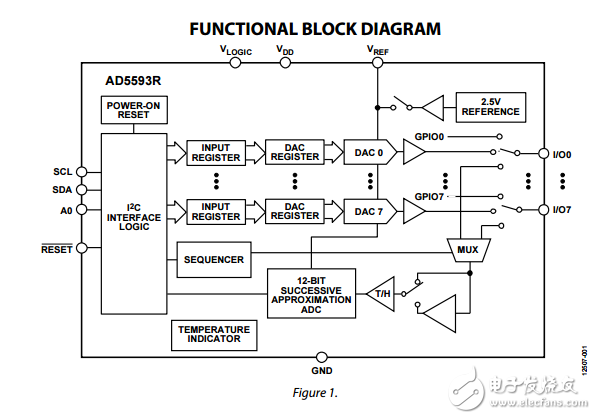

The AD5593R has eight input/output （I/O） pins， which can be independently configured as digital-to-analog converter （DAC） outputs， analog-to-digital converter （ADC） inputs， digital outputs， or digital inputs. When an I/O pin is configured as an analog output， it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2 × VREF. When an I/O pin is configured as an analog input， it is connected to a 12-bit ADC via an analog multiplexer. The input range of the ADC is 0 V to VREF or 0 V to 2 × VREF. The I/O pins can also be configured to be general-purpose， digital input or output （GPIO） pins. The state of the GPIO pins can be set or read back by accessing the GPIO write data register and GPIO read configuration registers， respectively， via an I2 C write or read operation. The AD5593R has an integrated 2.5 V， 20 ppm/°C reference that is turned off by default and an integrated temperature indicator that gives an indication of the die temperature. The temperature value is read back as part of an ADC read sequence. The AD5593R is available in 16-lead TSSOP and LFCSP， as well as a 16-ball WLCSP， and operates over a temperature range of ?40°C to +105°C.
