The ADG438F and ADG439F are CMOS analog multiplexers， with the ADG438F comprising eight single channels and the ADG439F comprising four differential channels. These multiplexers provide fault protection. Using a series n-channel， p-channel， and n-channel MOSFET structure， both device and signal source protection is provided in the event of an overvoltage or power loss. The multiplexer can withstand continuous overvoltage inputs from ?40 V to +55 V. During fault conditions with power supplies off， the multiplexer input （or output） appears as an open circuit and only a few nanoamperes of leakage current flows. This protects not only the multiplexer and the circuitry driven by the multiplexer， but also protects the sensors or signal sources which drive the multiplexer.

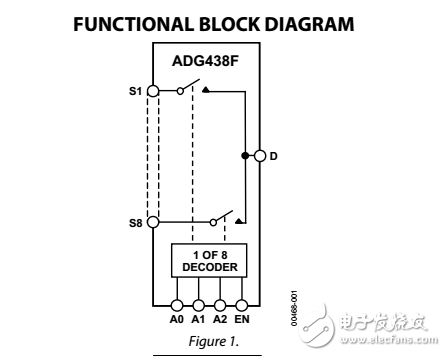

　　The ADG438F switches one of eight inputs to a common output as determined by the 3-bit binary address lines， A0， A1， and A2. The ADG439F switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines， A0 and A1. An EN input on each device is used to enable or disable the device. When disabled， all channels are switched off.
