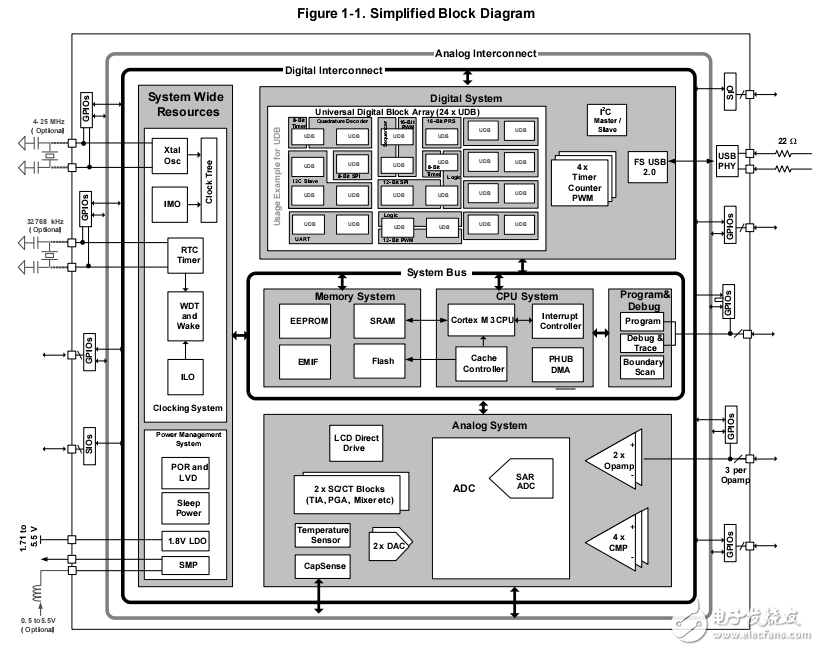

With its unique array of configurable blocks， PSoC? 5LP is a true system level solution providing microcontroller unit （MCU）， memory，

　　analog， and digital peripheral functions in a single chip. The CY8C54LP family offers a modern method of signal acquisition， signal

　　processing， and control with high accuracy， high bandwidth， and high flexibility. Analog capability spans the range from thermocouples

　?。╪ear DC voltages） to ultrasonic signals. The CY8C54LP family can handle dozens of data acquisition channels and analog inputs on

　　every general-purpose input/output （GPIO） pin. The CY8C54LP family is also a high-performance configurable digital system with

　　some part numbers including interfaces such as USB， and inter-integrated circuit （I2C）。 In addition to communication interfaces， the

　　CY8C54LP family has an easy to configure logic array， flexible routing to all I/O pins， and a high-performance 32-bit ARM?

　　Cortex?-M3 microprocessor core. You can easily create system-level designs using a rich library of prebuilt components and boolean

　　primitives using PSoC? Creator?， a hierarchical schematic design entry tool. The CY8C54LP family provides unparalleled

　　opportunities for analog and digital bill of materials integration while easily accommodating last minute design changes through simple

　　firmware updates.
