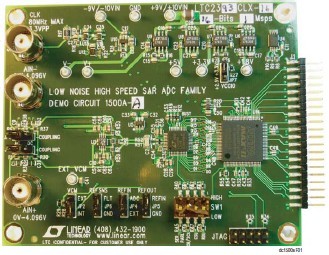

The LTC2393/LTC2392/LTC2391-16 are low noise high speed ADCs with both parallel and serial outputs that can operate from a single 5V supply. The following text refers to the LTC2393-16 but applies to all three parts. The only difference being the maximum sample rates. The LTC2393-16 supports a large ±4.096V fully differential input range. This makes it ideal for high performance applications that require maximum dynamic range. Demonstration circuit 1500A provides the user a means of evaluating the L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.
performance of the LTC2393-16 in both parallel and serial modes and is intended to demonstrate recommended grounding, component placement and selection, routing and bypassing for this ADC. Also several suggested driver circuits for the analog inputs will be presented.
