ST公司的SPV1040是嵌入了MPPT的高效太陽能電池充電器,輸入電壓0.3V到5.5V,內部集成140 mΩ同步整流器, 120 mΩ功率開關,100kHz固定PWM頻率,占空比有MPPT算法來控制,輸出電壓具有穩壓,過流和超溫保護.本文介紹了SPV1040主要特性, 方框圖,典型應用電路,輸出并聯和串聯連接圖,以及太陽能電池充電器STEVAL-ISV006V2電路圖和材料清單與PCB布局圖.

SPV1040主要特性:

■ 0.3 V to 5.5 V operating input voltage

■ 140 mΩ internal synchronous rectifier

■ 120 mΩ internal power active switch

■ 100 kHz fixed PWM frequency

■ Duty cycle controlled by MPPT algorithm

■ Output voltage regulation, overcurrent and overtemperature protection

■ Input source reverse polarity protection

■ Built in soft-start

■ Up to 95% efficiency

■ 3 mm x 4.4 mm TSSOP8 package

SPV1040應用:

■ Smart phones and GPS systems

■ Wireless headsets

■ Small appliances, sensors

■ Portable media players

■ Digital still cameras

■ Toys and portable healthcare

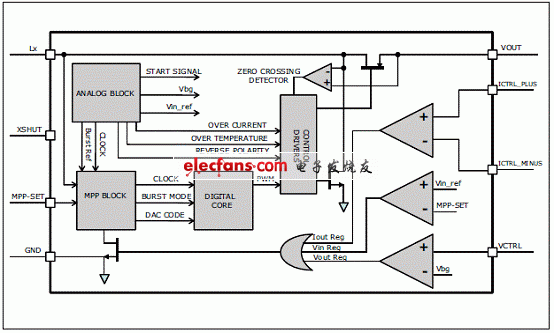

圖1.SPV1040方框圖

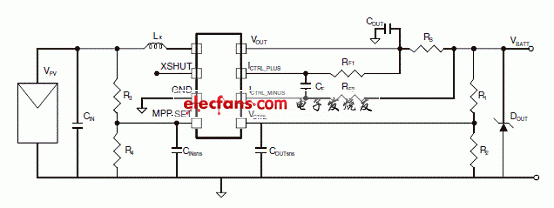

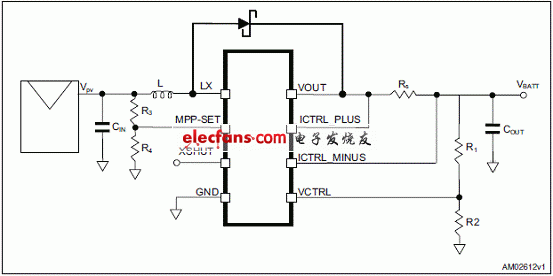

圖2.SPV1040簡化應用電路圖

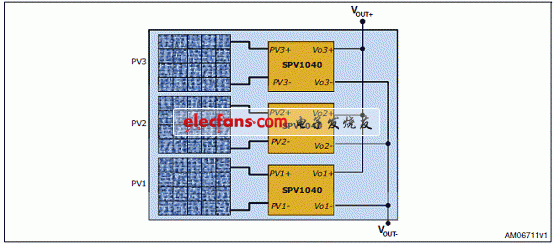

圖3.SPV1040輸出并聯連接圖

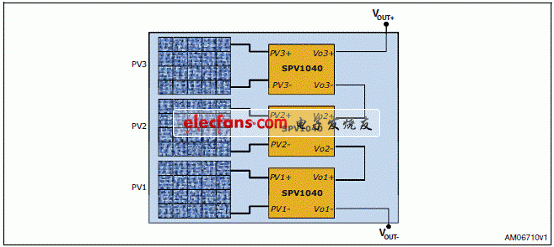

圖4.SPV1040輸出串聯連接圖

采用SPV1040的太陽能電池充電器STEVAL-ISV006V2

STEVAL-ISV006V2: solar battery charger using the SPV1040

The SPV1040 is a high efficiency, low power and low voltage DC-DC converter that provides a single output voltage up to 5.2 V. Startup is guaranteed at 0.3 V and the device operates down to 0.45 V when coming out from MPPT mode. It is a 100 kHz fixed frequency PWM step-up (or boost) converter able to maximize the energy generated by few solar cells (polycrystalline or amorphous). The duty cycle is controlled by an embedded unit running an MPPT algorithm with the goal of maximizing the power generated from the panel by continuously tracking its output voltage and current.

The SPV1040 guarantees the safety of overall application and of converter itself by stopping the PWM switching in the case of an overcurrent or overtemperature condition.

The IC integrates a 120 mΩ N-channel MOSFET power switch and a 140 mΩ P-channel
MOSFET synchronous rectifier.
