TI公司的DS90UB960-Q1是多種傳感器集線器,能從四個不同的視頻數據流通過FPD-Link III接口接收串行化傳感器數據.和DS90UB953-Q1配對時,它能以60Hz幀速率接收傳感器諸如支持全HD 1080p/2MP分辨率的圖像.DS90UB960-Q1包括四個FPD-Link III解串器,每個可通過50-Ω單端同軸或100-Ω差分STP電纜進行連接,而接收均衡器能自動補償電纜損耗特性,包括隨時間的老化.主要用在汽車ADAS如后視照相機(RVC),環繞視圖系統(SVS)和照相機監測系統(CMS),前視照相機(FC),駕駛員監測系統(DMS)以及衛星RADAR等以及安全和監控.本文介紹了DS90UB960-Q1主要特性,功能框圖,應用電路,以及具有兩個4Gbps四路串-并行變換器的ADAS 8路傳感器集線器參考設計TIDA-01413主要特性,框圖,電路圖,材料清單和PCB設計圖.

The DS90UB960-Q1 is a versatile sensor hubcapable of connecting serialized sensor data receivedfrom four independent video data streams through anFPD-Link III interface. When paired with aDS90UB953-Q1 serializer, the DS90UB960-Q1receives data from sensors such as imagerssupporting full HD 1080p/2MP resolution at 60-Hzframe rates. Data is received and aggregated into aMIPI CSI-2 compliant output for interconnect to a　downstream processor. A second MIPI CSI-2 outputport is available to provide additional bandwidth, oroffers a second replicated output for data-logging andparallel processing.

The DS90UB960-Q1 includes four FPD-Link IIIdeserializers, each enabling a connection throughcost-effective 50-Ω single-ended coaxial or 100-Ωdifferential STP cables. The receive equalizersautomatically adapt to compensate for cable losscharacteristics, including degradation over time.

Each of the FPD-Link III interfaces also includes aseparate low latency bidirectional control channel thatcontinuously conveys I2C, GPIOs, and other controlinformation. General-purpose I/O signals such asthose required for camera synchronization and　diagnostics features also make use of thisbidirectional control channel.The DS90UB960-Q1 is AEC-Q100 qualified forautomotive applications and is offered in a costeffectiveand space-saving 64-pin VQFN package.

DS90UB960-Q1主要特性:

1• AEC-Q100 Qualified for Automotive Applications:
– Device Temperature Grade 2: –40℃to +105℃Ambient Operating Temperature Range
• Quad 4.16 GbpsDeserializer Hub AggregatesData From up to 4 Sensors Simultaneously
• Supports 2-Megapixel Sensors With Full HD
1080p Resolution at 60-Hz Frame Rate
• Precise Multi-Camera Synchronization
• MIPI DPHY Version 1.2 / CSI-2 Version 1.3Compliant
– 2 × MIPI CSI-2 Output Ports
– Supports 1, 2, 3, 4 Data Lanes per CSI-2 port
– CSI-2 Data Rate Scalable for 400 Mbps / 800Mbps / 1.2 Gbps / 1.5 Gbps / 1.6 Gbps per Data Lane
– Port Replication Mode
• Ultra-Low Data and Control Path Latency
• Supports Single-Ended Coaxial Including Powerover-Coax (PoC) or Shielded Twisted-Pair (STP)Cable
• Adaptive Receive Equalization
• Dual I2C Ports With Fast-Mode Plus up to 1 Mbps
• Flexible GPIOs for Sensor Synchronization andDiagnostics
• Compatible With DS90UB953-Q1, DS90UB935-Q1,
DS90UB933-Q1, DS90UB913A-Q1Serializers
• Internal Programmable Precision Frame SyncGenerator
• Line Fault Detection and Advanced Diagnostics

DS90UB960-Q1應用:

• Automotive ADAS
– Rear View Cameras (RVC)
– Surround View Systems (SVS)
– Camera Monitoring Systems (CMS)
– Forward Vision Cameras (FC)
– Driver Monitoring Systems (DMS)
– Satellite RADAR, Time-of-Flight (ToF), andLIDAR Sensors Modules
– Sensor Fusion
• Security and Surveillance

圖1.DS90UB960-Q1功能框圖

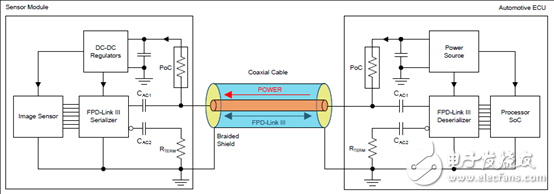

圖2.同軸電纜供電(PoC)系統框圖

圖3.典型連接圖(同軸)

圖4.典型連接圖(STP/STQ)

圖5.四個DS90UB953-Q1傳感器數據連接CSI-2兩端口

圖6.ADAS系統框圖

具有兩個4Gbps四路串-并行變換器的ADAS 8路傳感器集線器參考設計TIDA-01413

This sensor fusion hub reference design allows theconnection of up to four 2-megapixel cameras and upto four radar modules over coaxial cable. This designutilizes these coaxial cables to provide power, backchannelcommunication, and clock synchronization tothe sensors. The two 4-Gbps FPD-Link III quaddeserializers support dual-outputs of the MobileIndustry Processor Interface (MIPI) Camera SerialInterface-2 (CSI-2) over a Samtec connector toapplication processors.

參考設計TIDA-01413主要特性:

• Accepts 8 High-Speed Data Inputs Over FPD-LinkIII Synchronization Capability
• Provides Wide-Range Supply Voltage for Power
Over Coax (4 V to 14 V)
• Directly Connects to TDA2Plus EVM Through CSI-2 Interface
• Car Battery can Directly Supply Board Power WithProtection From Reverse Current
• Utilizes MSP430™ Microcontroller (MCU) toInitialize and Configure Video Pipeline
• Design Compatible With Onboard MCU, WithoutMCU, or With External MCU
• Works With Any Camera That Uses CompatibleFPD-Link III DS90UB953 Serializer

參考設計TIDA-01413應用:

• Advanced Driver Assistance Systems (ADAS)
• Surround View
• CMS and Mirror Replacement
• ADAS Domain Controller

圖7.參考設計TIDA-01413外形圖

圖8.參考設計TIDA-01413框圖

圖9.參考設計TIDA-01413板頂視圖

圖10.參考設計TIDA-01413板底視圖

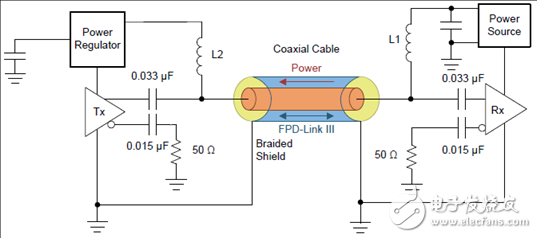

圖11.同軸電纜供電框圖

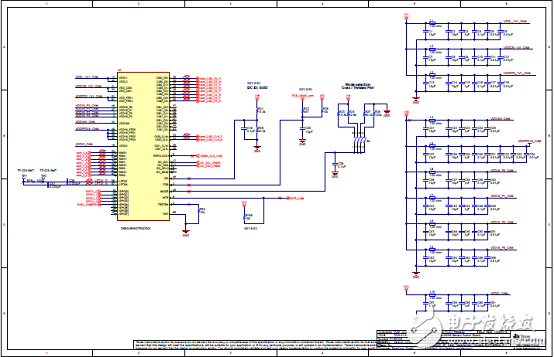

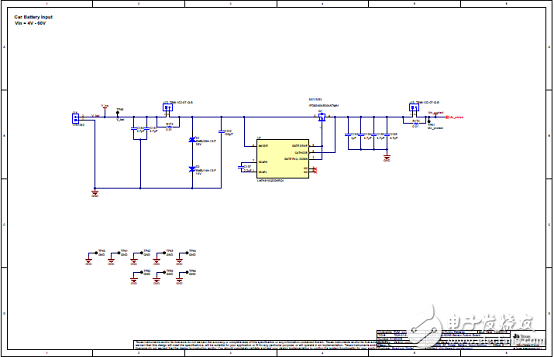

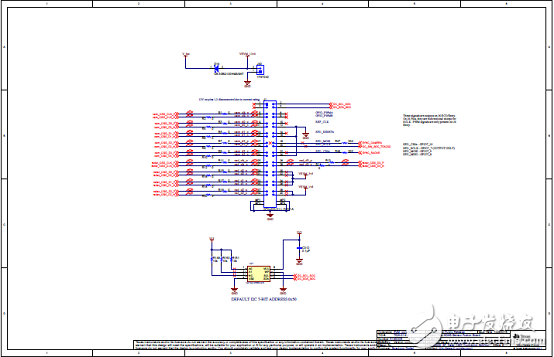

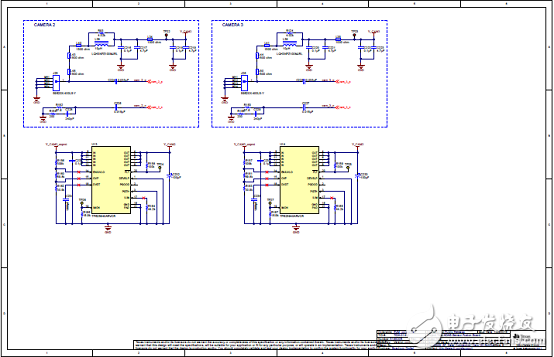

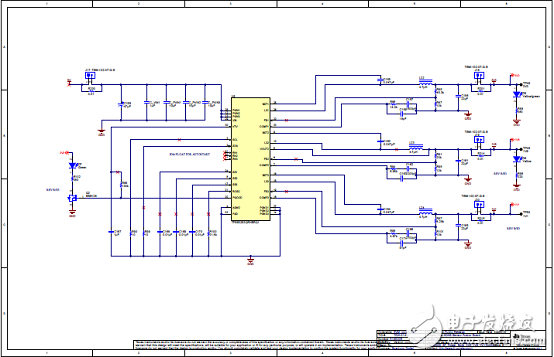

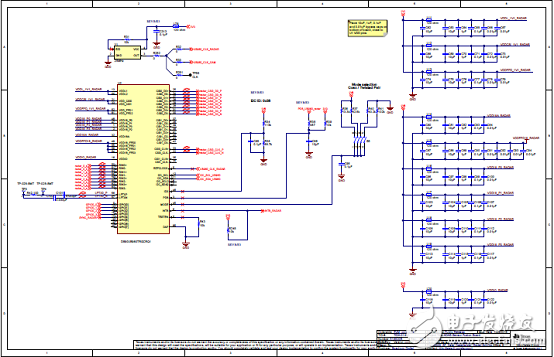

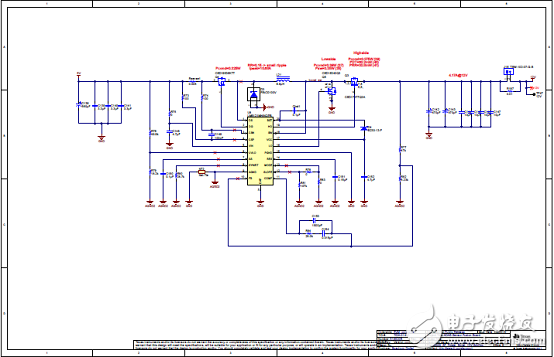

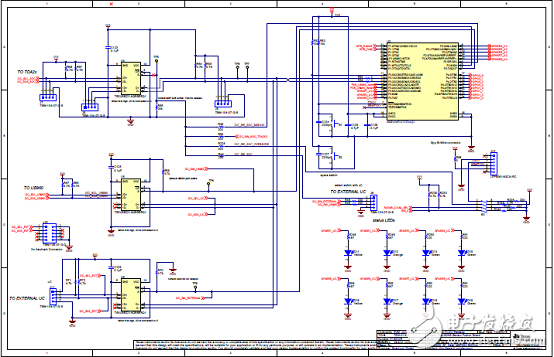

圖12.參考設計TIDA-01413電路圖(1)

圖13.參考設計TIDA-01413電路圖(2)

圖14.參考設計TIDA-01413電路圖(3)

圖15.參考設計TIDA-01413電路圖(4)

圖16.參考設計TIDA-01413電路圖(5)

圖17.參考設計TIDA-01413電路圖(6)

圖18.參考設計TIDA-01413電路圖(7)

圖19.參考設計TIDA-01413電路圖(8)

圖20.參考設計TIDA-01413電路圖(9)

圖21.參考設計TIDA-01413電路圖(10)

圖22.參考設計TIDA-01413電路圖(11)

圖23.參考設計TIDA-01413電路圖(12)

圖24.參考設計TIDA-01413電路圖(13)

圖25.參考設計TIDA-01413電路圖(14)
參考設計TIDA-01413材料清單:

圖26.參考設計TIDA-01413 PCB設計圖(1)

圖27.參考設計TIDA-01413 PCB設計圖(2)

圖28.參考設計TIDA-01413 PCB設計圖(3)

圖29.參考設計TIDA-01413 PCB設計圖(4)

圖30.參考設計TIDA-01413 PCB設計圖(5)

圖31.參考設計TIDA-01413 PCB設計圖(6)

圖32.參考設計TIDA-01413 PCB設計圖(7)

圖33.參考設計TIDA-01413 PCB設計圖(8)

圖34.參考設計TIDA-01413 PCB設計圖(9)

圖35.參考設計TIDA-01413 PCB設計圖(10)

圖36.參考設計TIDA-01413 PCB設計圖(11)

圖27.參考設計TIDA-01413 PCB設計圖(12)
