因特爾Cyclone 10 LP FPGA評估板電路圖集及PCB裝配圖

Intel公司的Cyclone 10 LP FPGA系列是低成本和低靜態功耗的器件,提供高密度可編門,板上資源和通用I/O,邏輯單元(LE)采用四輸入查找表(LUT)和寄存器,嵌入乘法器區塊包括一個18x18或兩個9x9乘法器模式,以及用于算法加速的DSP IP,非常適合量大和低成本的智能和終端連接應用如工業和汽車電子,廣播,有線和無線通信,計算和存儲,醫療電子,消費類電子和智能能源,軍用和航空航天.本文介紹了Cyclone 10 LP FPGA系列主要特性,LE框圖,器件架構圖以及Intel Cyclone 10 LP FPGA評估板主要特性,框圖,電路圖,材料清單和PCB裝配圖.

　　The Intel? Cyclone? 10 LP FPGAs are optimized for low cost and low static power，making them ideal for high-volume and cost-sensitive applications.

　　Cyclone 10 LP devices provide a high density sea of programmable gates， on-board resources， and general purpose I/Os. These resources satisfies the requirements of I/O expansion and chip-to-chip interfacing. The Cyclone 10 LP architecture suits smart and connected end applications across many market segments：

　　? Industrial and automotive

　　? Broadcast， wireline， and wireless

　　? Compute and storage

　　? Government， military， and aerospace

　　? Medical， consumer， and smart energy

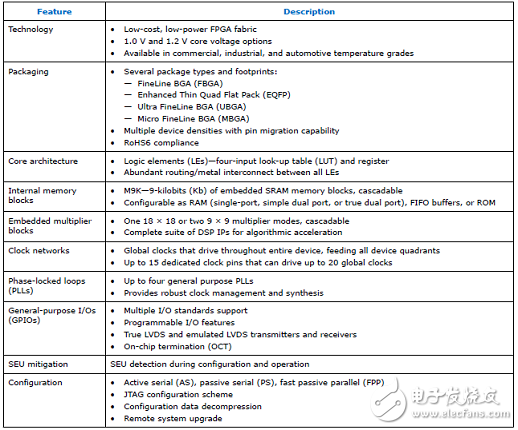

　　Cyclone 10 LP FPGA系列主要特性：

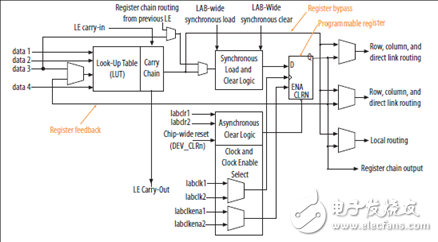

圖1.Cyclone 10 LP FPGA系列LE框圖

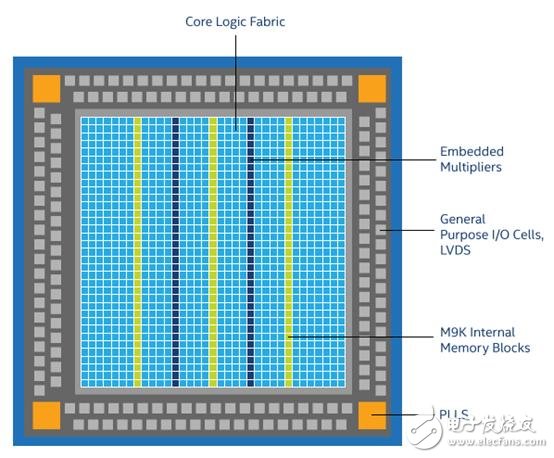

圖2.Cyclone 10 LP FPGA系列架構圖

The logic and routing core fabric sea of gates is surrounded on each side by I/O elements, with a phase-locked loop (PLLs) in each corner. Embedded memory blocks (M9K) and 18 x 18 bit multipliers blocks are arranged in vertical columns.

The architecture also includes highly efficient interconnect and low-skew clock networks, providing connectivity between logic structures for clock and data signals.

Cyclone 10 LP FPGA系列應用:

Intel Cyclone 10 LP FPGAs are ideal for cost-sensitive applications that require increasing lower static power as the need for scalable processing acceleration increases system interface requirements.
Typical end market examples include:
I/O expansion
Interfacing
Bridging
Sensor fusion
Industrial motor control

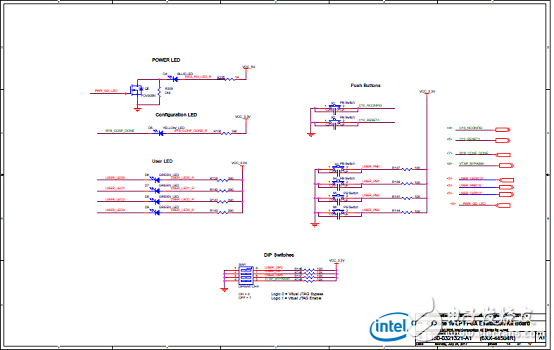

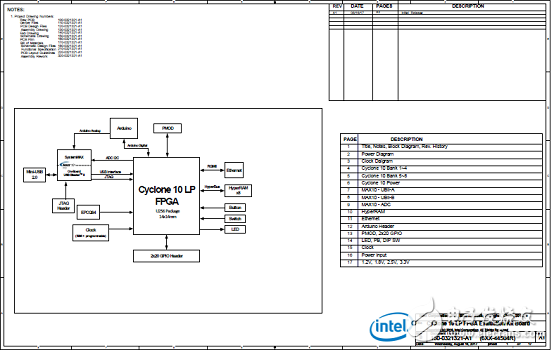

Intel Cyclone 10 LP FPGA評估板

The Intel? Cyclone? 10 LP Evaluation Kit provides an easy-to-use platform for evaluating the performance and features of the Intel Cyclone 10 LP FPGA device.The evaluation kit includes a RoHS and CE compliant Intel Cyclone 10 LP FPGA Evaluation Board with the following components.

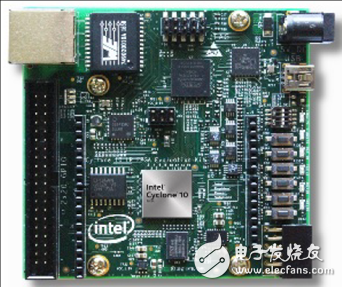

圖3.Intel Cyclone 10 LP FPGA評估板外形圖

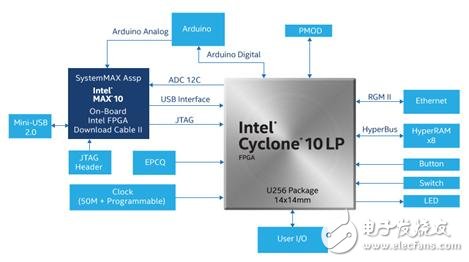

Intel Cyclone 10 LP FPGA評估板特性器件:

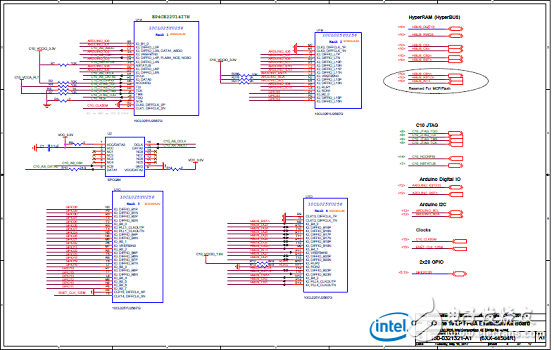

? Intel Cyclone 10 LP FPGA (10CL025, U256 package)

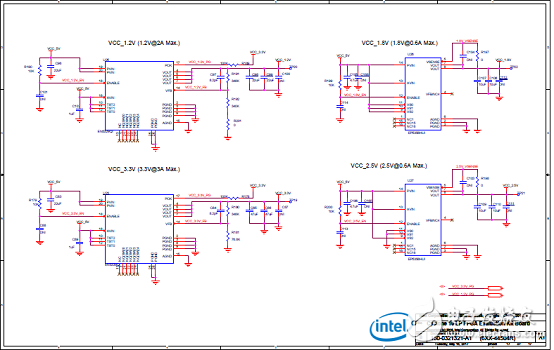

? Enpirion? EN5329QI/EN5339QI - 2A/3A PowerSoC Low Profile Synchronous Buck
DC-DC Converter with Integrated Inductor
? Enpirion EP5358xUI 600 mA PowerSoC DC-DC Step-Down Converters with
Integrated Inductor

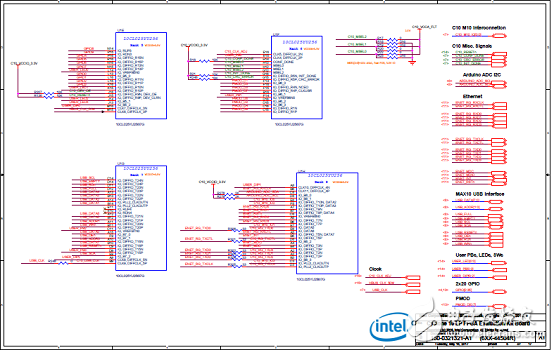

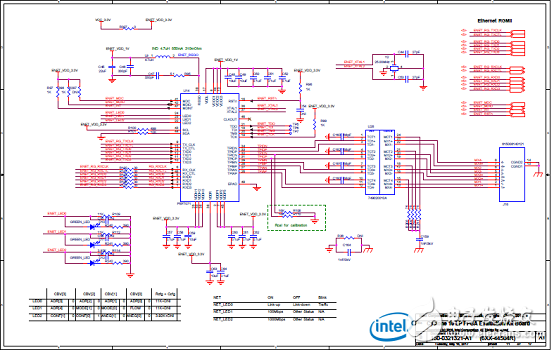

? Intel XWAY PHY11G Gigabit Ethernet PHY PEF7071

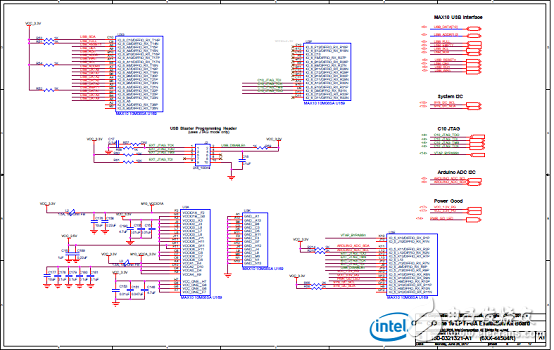

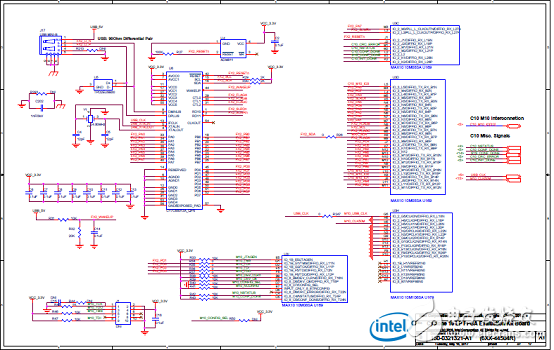

? Intel MAX? 10 FPGA 10M08SAU169C8G (Embedded Intel FPGA Download Cable II
and System Management)
Programming and Configuration
? Embedded Intel FPGA Download Cable II (JTAG)
? Optional JTAG direct via 10-pin header
? Active Serial x1 configuration from EPCQ flash
Memory Devices

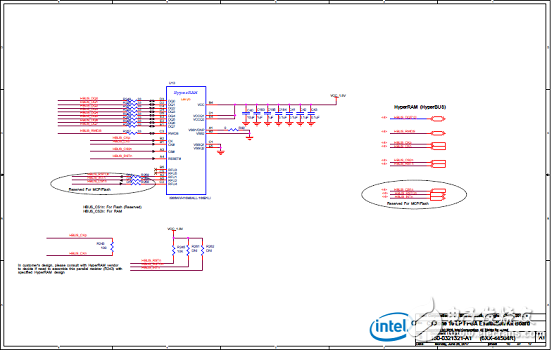

? 128 Mb 8-bit HyperRAM with HBMC (Hyperbus Memory Controller) IP provided by
Synaptic Labs
? 64 Mb EPCQ Flash
Communication Ports
? One Gigabit Ethernet (GbE) RJ-45 port
? One 2x20 GPIO Expansion Header

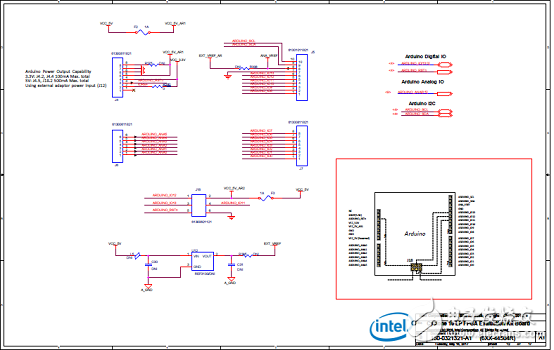

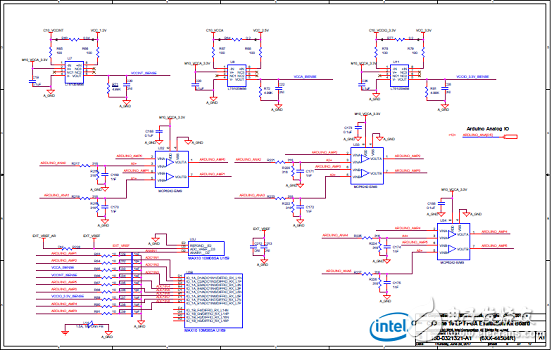

? One Arduino UNO R3 type connectors
? One 12-pin DigilentPmod compatible connector

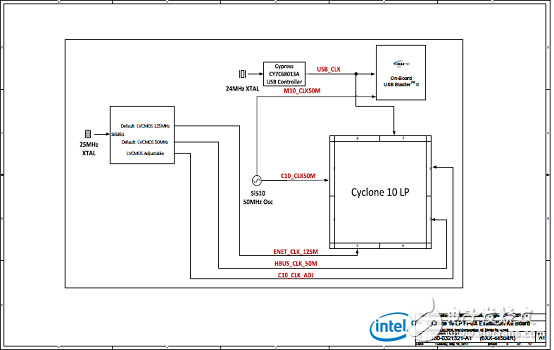

Clock Circuits

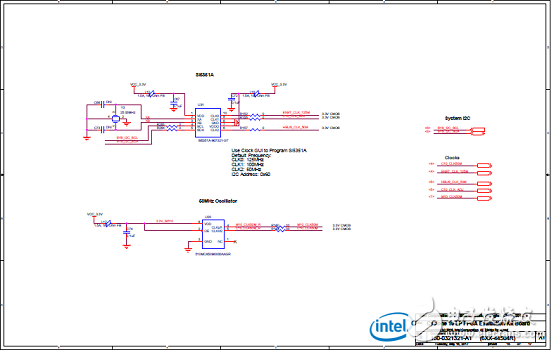

? Silicon Labs Si510 50 MHz crystal oscillator
? Silicon Labs Si5351 clock generator with programmable frequency GUI

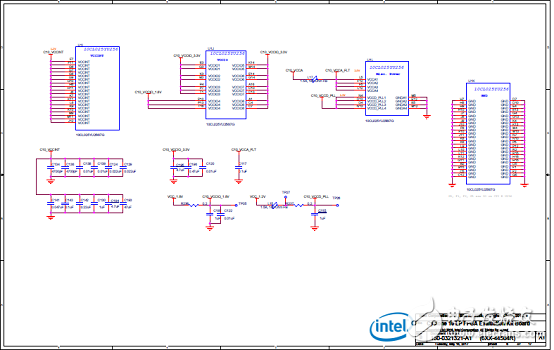

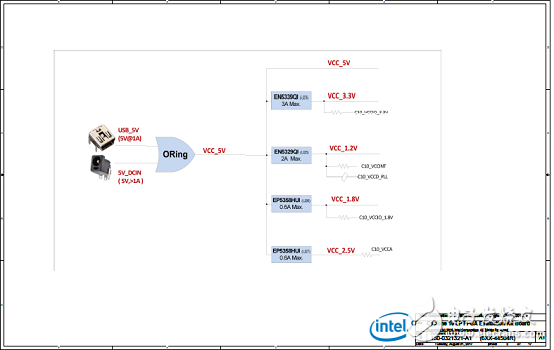

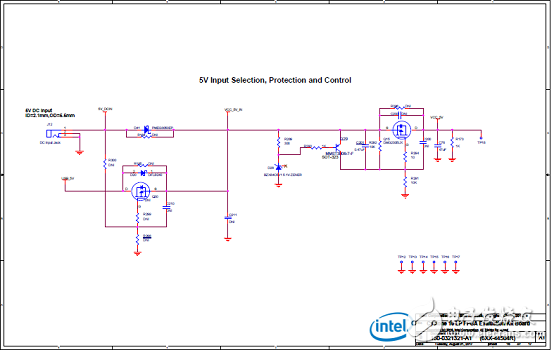

Power Supply
? USB Y-cable (USB Type-A to mini Type-B) for both on-board Intel FPGA Download
Cable II and 5V power supply from USB port
? Supplemental 5V DC power adaptor option (5V power adaptor and cord are not
included in the kit)
Intel Quartus? Prime Standard Edition / Lite Edition
Intel Quartus? Prime Standard Edition / Lite Edition software can be downloaded from
the Download Center at the Intel FPGA website.
Recommended Operating Conditions
? Recommended ambient operating temperature range: 0C to 45C
? Maximum VCCINT current: 0.6 A
? Maximum board power consumption: 3 A @ 5 V when powered by AC/DC adaptor
