本文介紹了PIC24F16KA102主要特性，方框圖以及 XLP 16位MCU開發套件主要特性和XLP 16位開發板詳細電路圖。

Microchip 公司的PIC24F16KA102是極低16位MCU，采用改進型哈佛架構，32MHz時高達16MIPS，帶4x PLL選擇和多個除法選擇的8MHz振蕩器，17位x17位單周期硬件乘法器，32位x16位硬件除法器，16位x16位工作寄存器陣列，C編譯器，運行模式的功耗低到8uA，深度睡眠模式的功耗為20nA，工作電壓1.8V到 3.6V，住要用途包括RF傳感器，數據采集器，溫度傳感器，電子門鎖，測量傳感器，遙控，安全傳感器，智能卡和能量收獲等。

PIC24F16KA102主要特性：

Power Management Modes:

? Run – CPU, Flash, SRAM and Peripherals On

? Doze – CPU Clock Runs Slower than Peripherals

? Idle – CPU Off, Flash, SRAM and Peripherals On

? Sleep – CPU, Flash and Peripherals Off and SRAM On

? Deep Sleep – CPU, Flash, SRAM and Most Peripherals Off

- Run mode currents down to 8uA typical

- Idle mode currents down to 2 uA typical

- Deep Sleep mode currents down to 20 nA typical

- RTCC 490 nA, 32 kHz, 1.8V

- Watchdog Timer 350 nA, 1.8V typical

High-Performance CPU:

? Modified Harvard Architecture

? Up to 16 MIPS Operation @ 32 MHz

? 8 MHz Internal Oscillator with 4x PLL Option and Multiple Divide Options

? 17-Bit by 17-Bit Single-Cycle Hardware Multiplier

? 32-Bit by 16-Bit Hardware Divider

? 16-Bit x 16-Bit Working Register Array

? C Compiler Optimized Instruction Set Architecture

Peripheral Features:

? Hardware Real-Time Clock and Calendar (RTCC):

- Provides clock, calendar and alarm functions

- Can run in Deep Sleep Mode

? Programmable Cyclic Redundancy Check (CRC)

? Serial Communication modules:

- SPI, I2C? and two UART modules

? Three 16-Bit Timers/Counters with Programmable Prescaler

? 16-Bit Capture Inputs

? 16-Bit Compare/PWM Output

? Configurable Open-Drain Outputs on Digital I/O Pins

? Up to Three External Interrupt Sources

Analog Features:

? 10-Bit, up to 9-Channel Analog-to-Digital Converter:

- 500 ksps conversion rate

- Conversion available during Sleep and Idle

? Dual Analog Comparators with Programmable Input/ Output Configuration

? Charge Time Measurement Unit (CTMU):

- Used for capacitance sensing

- Time measurement, down to 1 ns resolution

- Delay/pulse generation, down to 1 ns resolution

Special Microcontroller Features:

? Operating Voltage Range of 1.8V to 3.6V

? High-Current Sink/Source (18 mA/18 mA) on All I/O Pins

? Flash Program Memory:

- Erase/write cycles: 10,000 minimum

- 40-years’ data retention minimum

? Data EEPROM:

- Erase/write cycles: 100,000 minimum

- 40-years’ data retention minimum

? Fail-Safe Clock Monitor

? System Frequency Range Declaration bits:

- Declaring the frequency range optimizes the current consumption.

? Flexible Watchdog Timer (WDT) with On-Chip,

Low-Power RC Oscillator for Reliable Operation

? In-Circuit Serial Programming? (ICSP?) and

In-Circuit Debug (ICD) via two Pins

? Programmable High/Low-Voltage Detect (HLVD)

? Brown-out Reset (BOR):

- Standard BOR with three programmable trip points; can be disabled in Sleep

? Extreme Low-Power DSBOR for Deep Sleep, LPBOR for all other modes

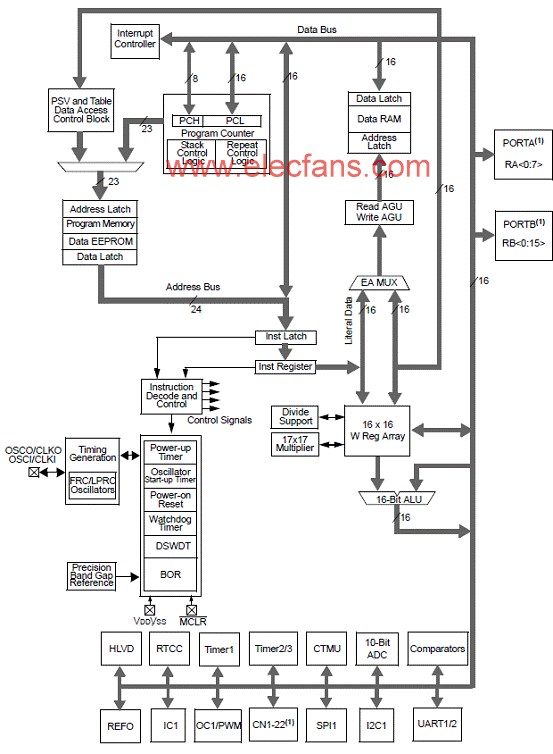

圖1。PIC24F16KA102系列通用方框圖

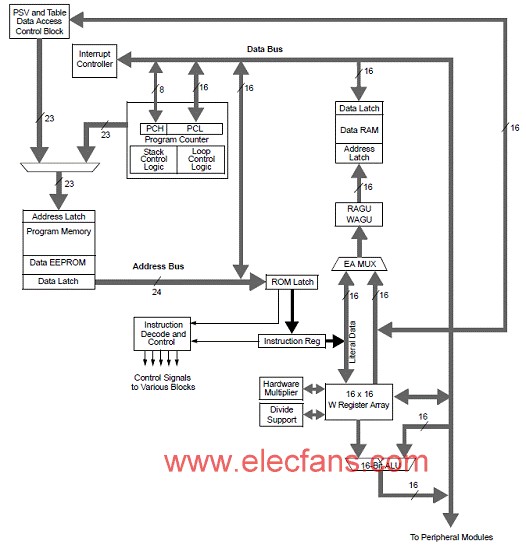

圖2。PIC24F16KA102系列PIC24F CPU核方框圖

XLP 16位開發套件

Microchip Technology’s XLP 16-Bit Development Board Kit provides a low-cost, highly configurable development system for Microchip’s new line of PIC24F 20 and 28-pin Extreme Low-Power (XLP) microcontrollers, including the PIC24F16KA102 and PIC24FJ64GA102 families.

The XLP 16-bit board permits users to explore and evaluate extreme low-power features, and learn low-power software and hardware techniques. Various headers are available to measure both microcontroller and component power consumption. It is flexible, supporting six different power sources over a wide voltage range. It is highly configurable, equipped with a variety of common peripheral components that can be selectively enabled. Finally, it is expandable through its modular interface, providing for the addition of advanced interfaces and connectivity methods.

As provided, the XLP 16-Bit Development Board functions as a demonstration platform on initial power-up. The included demonstration software takes a temperature measurement, datalogs information to the serial data EEPROM and displays information to a host PC via a USB connection. Additional software is provided to demonstrate low-power techniques and IC interface routines.

XLP 16位開發套件主要特性：

The XLP 16-Bit Development Board includes these features:

? Support for both 20-pin and 28-pin versions of both PIC24F J-series and K-series
Flash microcontrollers

? Accommodations for six different power source options

? Configurability for a wide range of operating voltages (1.8V to 5.5V)

? Configuration selection jumpers to disable board components

? A hardware switchable option to control power to board components with port pin

? USB connectivity

? Provisions to add RS-232 transceivers (not populated)

? Five user-defined buttons (3 capacitive touch and 2 push buttons)

? Two user-defined LEDs

? Two temperature sensors

? Potentiometer for analog input or High/Low Voltage Detect (HLVD) reference

? Built-in capability for separately measuring microcontroller and component current
Consumption

? Support for all Microchip compatible programmers and emulators

????
圖3。XLP 16位開發套件外形圖

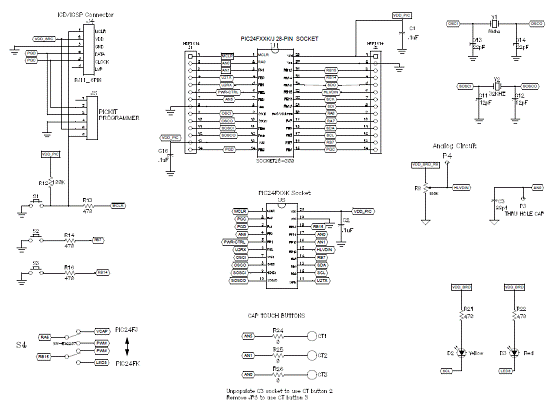

圖4。XLP 16位開發板電路圖（1）：MCU插座和相關元件

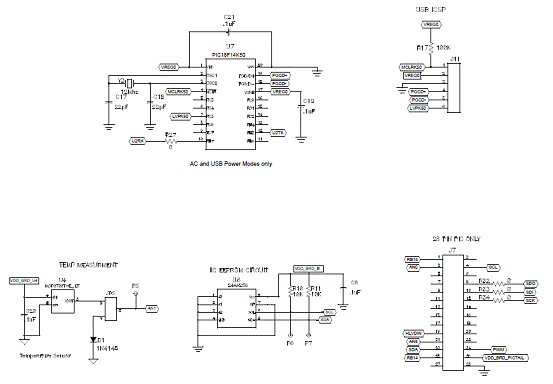

圖5。XLP 16位開發板電路圖（2）：USB/串行接口，EEPROM，溫度傳感器和28引腳接口

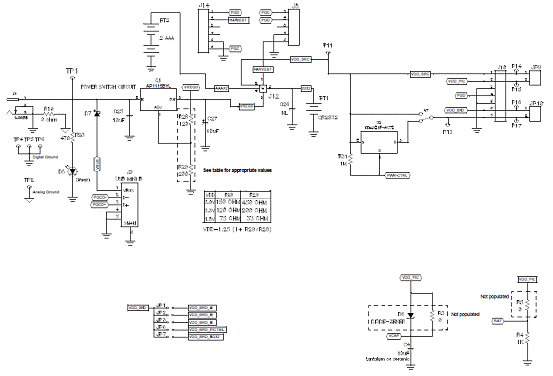

圖6。XLP 16位開發板電路圖（3）：電源和選擇器開關

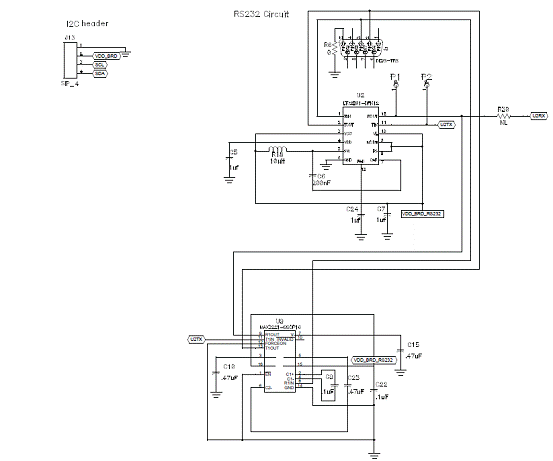

圖7。XLP 16位開發板電路圖（4）：其它電路元件
