Cypress公司的PSoC 62系列MCU是可升級和可配置的平臺架構，采用超低功耗40nm技術，組合了雙核MCU（150-MHz Arm Cortex-M4F CPU和100-MHz Cortex M0+ CPU）和低功耗閃存（多達2MB）以及1MB SRAM，數字可編邏輯，高性能模數和數模轉換器，低功耗比較器以及其標準通信和定時外設。器件可提供多達104 GPIO，工作電壓1.7V-3.6V，主要用在可愛穿戴，智能家居，工業IoT，手持醫療設備等。本文介紹了PSoC 62系列主要特性，框圖和時鐘框圖，以及PSoC 6 Wi-Fi BT原型套件CY8CPROTO-062-4343W主要特性，電路圖，材料清單和PCB設計圖與裝配圖。

　　PSoC? is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with Arm?Cortex? CPUs （single and multi-core）。 The PSoC 6 product family， based on an ultra low-power 40-nm platform， is a combination ofa dual-core microcontroller with low-power Flash technology and digital programmable logic， high-performance analog-to-digital anddigital-to-analog conversion， low-power comparators， and standard communication and timing peripherals.

　　PSoC 62系列主要特性：

　　32-bit Dual Core CPU Subsystem

　　■ 150-MHz Arm Cortex-M4F CPU with single-cycle multiply（Floating Point and Memory Protection Unit）

　　■ 100-MHz Cortex M0+ CPU with single-cycle multiply and MPU

　　■ User-selectable core logic operation at either 1.1 V or 0.9 V

　　■ Inter-processor communication supported in hardware

　　■ 8 KB 4-way set-associative Instruction Caches for the M4 andM0+ CPUs respectively

　　■ Active CPU power consumption slope with 1.1 V core operationfor the Cortex M4 is 40 μA/MHz and 20 μA/MHz for the CortexM0+， both at 3.3 V chip supply voltage with the internal buckregulator

　　■ Active CPU power consumption slope with 0.9 V core operationfor the Cortex M4 is 22 μA/MHz and 15 μA/MHz for the CortexM0+， both at 3.3 V chip supply voltage with the internal buckregulator

　　■ Three DMA controllers

　　Flexible Memory Sub-system

　　■ 2 MB Application Flash with 32 KB EEPROM area and 32 KBSupervisory Flash

　　■ 128-bit wide Flash accesses reduce power

　　■ Flash Read-While-Write （RWW） allows updating the Flashwhile executing from it

　　■ SRAM with Selectable Retention Granularity

　　■ 1024 KB SRAM （three independent blocks of 512 KB， 256 KB，and 256 KB）

　　■ 32 KB retention boundaries （in the 512 KB block）

　　■ One-Time-Programmable （OTP） E-Fuse memory for validationand security

　　Low-Power 1.7-V to 3.6-V Operation

　　■ Active， Low-power Active， Sleep， Low-power Sleep， DeepSleep， and Hibernate modes for fine-grained powermanagement

　　■ Deep Sleep mode current with 64K SRAM retention is 7 μAwith 3.3 V external supply and internal buck

　　■ On-chip DC-DC Buck converter， 《1 μA quiescent current

　　■ Backup domain with 64 bytes of memory and Real-time Clock（RTC）

　　Flexible Clocking Options

　　■ On-chip crystal oscillators （High-speed， 4 to 33 MHz， andWatch crystal， 32 kHz）

　　■ Two Phase-locked Loops （PLLs） for multiplying clockfrequencies

　　■ 8 MHz Internal Main Oscillator （IMO） with ?2% accuracy

　　■ Ultra low-power 32 kHz Internal Low-speed Oscillator （ILO）with ?10% accuracy

　　■ frequency Locked Loop （FLL） for multiplying IMO frequency

　　Serial Communication

　　■ 13 independent run-time reconfigurable serial communicationblocks （SCBs）， eight are software-configurable as SPI， I2C， orUARTs. One SCB can operate in Deep Sleep with an externalclock and can be either SPI or I2C. The other four can be eitherUARTs or I2C.

　　■ USB Full-Speed Dual-role Host and Device interface

　　Timing and Pulse-Width Modulation

　　■ Thirty-two Timer/Counter Pulse-Width Modulator （TCPWM）blocks

　　■ Center-aligned， Edge， and Pseudo-random modes

　　■ Comparator-based triggering of Kill signals

　　Up to 104 Programmable GPIOs

　　■ Drive modes， strengths， and slew rates are programmable

　　■ Six overvoltage tolerant （OVT） pins

　　Packages

　　■ 124-BGA

　　■ 128 TQFP

　　■ 100 WLCSP

　　Audio Subsystem

　　■ Two I2S Interfaces; up to 192 kilosamples Word Clock

　　■ Two PDM channels for stereo digital microphones

　　QSPI Interface

　　■ Execute-In-Place （XIP） from external Quad SPI Flash

　　■ On-the-fly encryption and decryption

　　■ 4 KB QSPI cache for greater XIP performance with lower power

　　■ Supports 1， 2， 4， and Dual-Quad interfaces

　　Secure Digital Host Controller （SDHC） with eMMC

　　■ Two independent SDHC/eMMC/SD controllers

　　■ Operation up to 80 MHz （SDR-50） supported

　　■ Provide connectivity to IoT Wireless devices

　　Programmable Analog

　　■ 12-bit 1 Msps SAR ADC with differential and single-endedmodes and 16-Channel Sequencer with signal averaging

　　■ Two low-power comparators that operate in Deep Sleep andHibernate modes.

　　■ Built-in temp sensor connected to ADC

　　Programmable Digital

　　■ Smart I/O （Programmable I/O） blocks enable Booleanoperations on signals coming from， and going to， GPIO pins

　　■ Two ports with Smart_IO blocks， capability are provided; theseare available during Deep Sleep

　　Capacitive Sensing

　　■ Cypress CapSense Sigma-Delta （CSD） provides best-in-classSNR， liquid tolerance， and proximity sensing

　　■ Mutual Capacitance sensing （Cypress CSX） with dynamicusage of both Self and Mutual sensing

　　■ Wake on Touch with very low current

　　■ Cypress-supplied software component makes capacitivesensing design fast and easy

　　■ Automatic hardware tuning （SmartSense?）

　　Energy Profiler

　　■ Block that provides history of time spent in different powermodes

　　■ Allows software energy profiling to observe and optimizeenergy consumption

　　ModusToolbox? Design Environment

　　■ Integrated Development Environment provides schematicdesign entry and build （with analog and digital automaticrouting） and code development and debugging

　　■ Applications Programming Interface （API Component） for allfixed-function and programmable peripherals

　　Industry-Standard Tool Compatibility

　　■ After schematic entry， development can be done withArm-based industry-standard development tools

　　■ Configure and export to Arm/Keil or IAR IDEs for codedevelopment and debugging

　　■ Supports industry standard Arm Trace Emulation Trace Module

　　Security Built into Platform Architecture

　　■ Multi-faceted secure architecture based on ROM-based root oftrust

　　■ Secure Boot uninterruptible until system protection attributesare established

　　■ Authentication during boot using hardware hashing

　　■ Step-wise authentication of execution images

　　■ Secure execution of code in execute-only mode for protectedroutines

　　■ All Debug and Test ingress paths can be disabled

　　■ Up to eight Protection Contexts （Secure Boot is in ProtectionContext 0） allow Access privileges for memory and systemresources to be set by the Secure Boot process per ProtectionContext by Bus master and code privilege level. Multipleprotection contexts are supported on a single CPU.

　　■ System Master and Peripheral Protection Units （SMPUs andPPUs） allow setting access privileges by protection context andallowed access rights. PPUs control access to specificperipherals.

　　Cryptography Accelerators

　　■ Hardware acceleration for Symmetric and Asymmetriccryptographic methods （AES， 3DES， RSA， and ECC） and Hashfunctions （SHA-512， SHA-256）

　　■ True Random Number Generator （TRNG） function

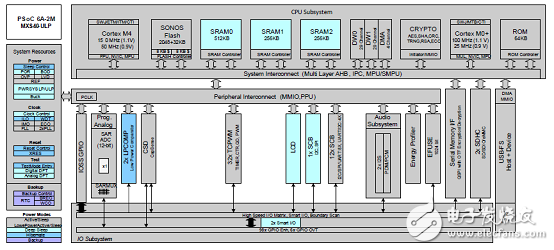

　　圖1.PSoC 62系列框圖

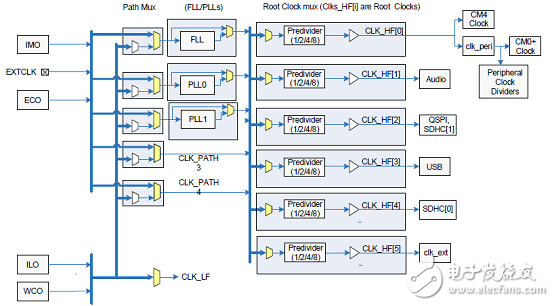

　　圖2.PSoC 62系列時鐘框圖

　　PSoC 6 Wi-Fi BT原型套件CY8CPROTO-062-4343W

　　The PSoC 6 Wi-Fi BT Prototyping Kit （CY8CPROTO-062-4343W） is a low-cost hardware platform that enables design and debug of PSoC 6 MCUs. It comes with a CY8CMOD-062-4343W daughter card， industry-leading CapSense? for touch buttons and slider， on-board debugger/programmer with KitProg3， MicroSD card interface， 512-Mb Quad-SPI NOR flash， PDM microphone， and a thermistor. It also includes a Murata LBEE5KL1DX module， based on the CYW4343W combo device.

　　Featuring the PSoC 62 MCU， providing up to 2MB flash and 1MB SRAM

　　PSoC 6 is purpose-built for the IoT， delivering the industry’s lowest power， most flexibility， and built-in security for the IoT. It delivers dual-cores， with a 150-MHz Arm? Cortex?-M4 as the primary application processor and a 100-MHz Arm Cortex-M0+ as the secondary processor for low-power operations. To find out about the unique and differentiating features of our PSoC 6 MCUs， please visit the PSoC 6 product page.
