TI公司的CC2642R是SimpleLink? Bluetooth? 5低功耗無線MCU，具有成本效率超低功耗，2.4GHz和亞GHz RF器件，具有非常低的工作RF和微處理器（MCU）電流，以及亞μA睡眠電流和高達80KB奇偶保護的RAM，具有極好電池壽命，允許用小型鈕扣電池工作，可在能量收獲中應用.CC2642R組合了靈活非常低的RF收發器和功能強大的48MHz Arm? Cortex?-M4F CPU，支持多種物理層和RF標準。專用的無線電控制器（Arm? Cortex?-M0）處理存儲在ROM或RAM的低級射頻（RF）協議指令，因此保證了超低功耗，并具有極大靈活性.CC2642R是包含了完整的RF系統和片上DC/DC轉換器的高度集成的真正單片解決方案，具有極好的靈敏度和魯棒性能（靈敏度和阻塞度）。工作電壓1.8 V 到 3.8 V，主要用在消費類電子，手機附件，運動和健美設備，HID應用，醫療設備，智能電網和自動化儀表，家庭和建筑物自動化，無線告警和安全系統，工業監測和控制，無線健康應用，無線傳感器網絡，有源RFID，能量收集應用，長距離傳感器應用和電子貨架標簽（ESL）。本文介紹了CC2642R主要特性，功能框圖，以及SimpleLink? CC26x2R無線MCU LaunchPad?開發板主要特性，電路圖和材料清單與PCB設計圖。
The CC2642R device is a member of the SimpleLink? MCU platform of cost-effective， ultra-low power，2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller （MCU） currents， in additionto sub-μA sleep current with up to 80KB of parity protected RAM retention， provide excellent batterylifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.
The CC2642R device combines a flexible， very low-power RF transceiver with a powerful 48 MHz Arm?Cortex?-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated RadioController （Arm? Cortex?-M0） handles low-level RF protocol commands that are stored in ROM or RAM，thus ensuring ultra-low power and great flexibility. The low power consumption of the CC2642R devicedoes not come at the expense of RF performance; the CC2642R device has excellent sensitivity androbustness （selectivity and blocking） performance.
The CC2642R device is a highly integrated， true single-chip solution incorporating a complete RF systemand an on-chip DC/DC converter.
Sensors can be handled in a very low-power manner by a programmable， autonomous ultra-low powerSensor Controller CPU with 4KB of SRAM for program and data. The Sensor Controller， with its fastwake-up and ultra-low-power 2 MHz mode is designed for sampling， buffering， and processing bothanalog and digital sensor data; thus the MCU system can maximize sleep time and reduce active power.
The CC2642R device is part of the SimpleLink? microcontroller （MCU） platform， which consists ofWi-Fi?， Bluetooth? Low Energy， Thread， Zigbee， Sub-1 GHz MCUs， and host MCUs， which all share acommon， easy-to-use development environment with a single core software development kit （SDK） andrich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of theportfolio’s devices into your design， allowing 100 percent code reuse when your design requirementschange.
CC2642R主要特性：
? Microcontroller
– Powerful 48-MHz Arm? Cortex?-M4F Processor
– EEMBC CoreMark? score： 148
– 352KB of in-system Programmable Flash
– 256KB of ROM for protocols and libraryfunctions
– 8KB of Cache SRAM （Alternatively available asgeneral-purpose RAM）
– 80KB of ultra-low leakage SRAM with parity
– 2-Pin cJTAG and JTAG debugging
– Supports Over-the-Air upgrade （OTA）
? Ultra-Low Power Sensor Controller with 4KB ofSRAM
– Sample， store， and process sensor data
– Operation independent from system CPU
– Fast wake-up for low-power operation
? TI-RTOS， drivers， Bootloader， Bluetooth? 5 LowEnergy Controller in ROM for optimized applicationsize
? RoHS-compliant package
– 7-mm × 7-mm RGZ VQFN48 （31 GPIOs）
? Peripherals
– Digital peripherals can be routed to any GPIO
– 4× 32-bit or 8× 16-bit general-purpose timers
– 12-Bit ADC， 200 kSamples/s， 8 channels
– 2× comparators with internal reference DAC（1× continuous time， 1× ultra-low power）
– Programmable current source
– 2× UART
– 2× SSI （SPI， MICROWIRE， TI）
– I2C
– I2S
– Real-Time Clock （RTC）
– AES 128- and 256-bit Crypto Accelerator
– ECC and RSA Public Key Hardware Accelerator
– SHA2 Accelerator （Full suite up to SHA-512）
– True Random Number Generator （TRNG）
– Capacitive sensing， up to 8 channels
– Integrated temperature and battery monitor
? External system
– On-chip Buck DC/DC Converter
? Low Power
– Wide supply voltage range： 1.8 V to 3.8 V
– Active-Mode RX： 6.9 mA
– Active-Mode TX 0 dBm： 7.3 mA
– Active-Mode TX 5 dBm： 9.6 mA
– Active-Mode MCU 48 MHz （CoreMark）：
3.4 mA （71 μA/MHz）
– Sensor Controller， Low Power-Mode， 2 MHz，running infinite loop： 30.8 μA
– Sensor Controller， Active-Mode， 24 MHz，running infinite loop： 808 μA
– Standby： 0.94 μA （RTC on， 80KB RAM andCPU retention）
– Shutdown： 150 nA （wakeup on external events）
? Radio section
– 2.4-GHz RF transceiver compatible withBluetooth 5 Low Energy
– Excellent receiver sensitivity：
–105 dBm for Bluetooth 125-kbps （LE CodedPHY）
–97 dBm for 1-Mbps PHY
– Output power up to +5 dBm with temperaturecompensation
– Suitable for systems targeting compliance withworldwide radio frequency regulations
– EN 300 328， （Europe）
– EN 300 440 Category 2
– FCC CFR47 Part 15
– ARIB STD-T66 （Japan）
? Development Tools and Software
– CC26x2 LaunchPad? Development Kit
– SimpleLink? CC13X2-CC26X2 SoftwareDevelopment Kit
– SmartRF? Studio for simple radio configuration
– Sensor Controller Studio for building low-powersensing applications
CC2642R應用：
? Consumer electronics
? Mobile phone accessories
? Sports and fitness equipment
? HID applications
? Medical
? Smart grid and automatic meter reading
? Home and building automation
? Wireless alarm and security systems
? Industrial monitoring and control
? Wireless healthcare applications
? Wireless sensor networks
? Active RFID
? Energy harvesting applications
? Electronic Shelf Label （ESL）
? Long-range sensor applications
圖1.CC2642R功能框圖
圖2.SimpleLink? CC26x2R無線MCU LaunchPad?開發板外形圖

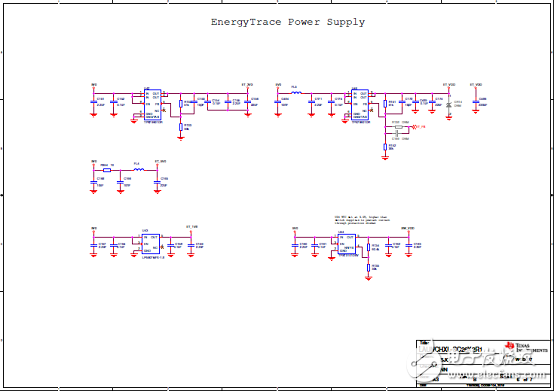

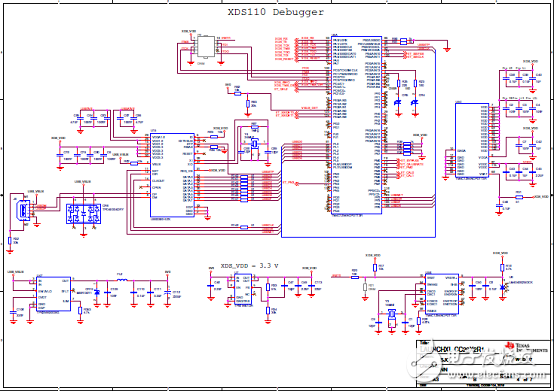

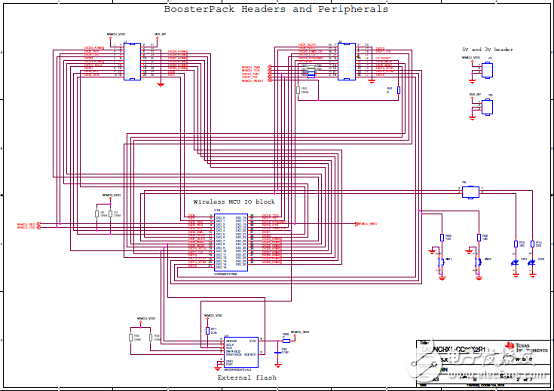

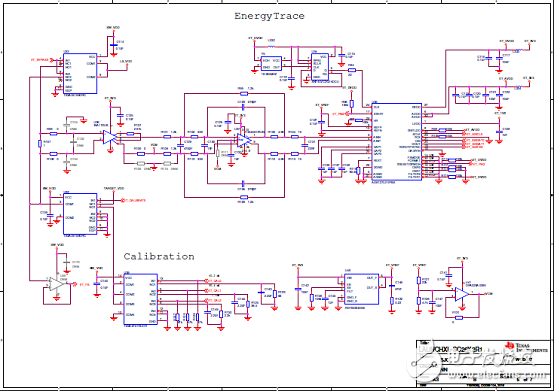

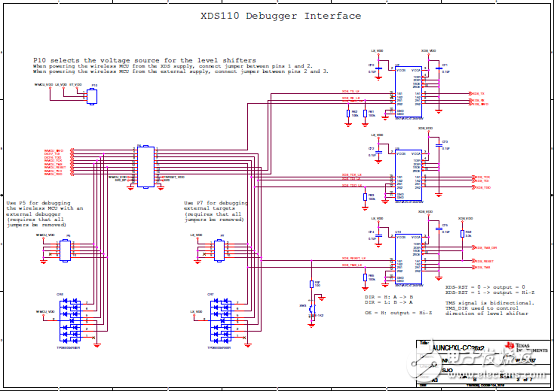

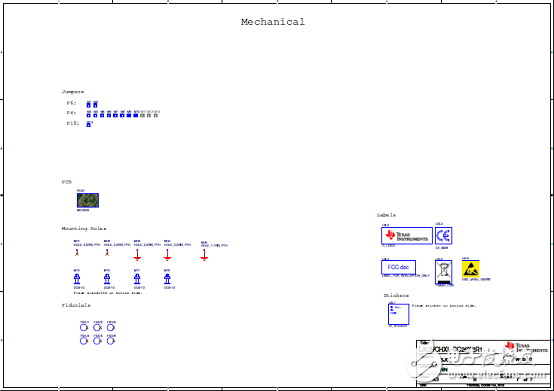

圖3.LaunchPad?開發板電路圖（1）
圖4.LaunchPad?開發板電路圖（2）
圖5.LaunchPad?開發板電路圖（3）
圖6.LaunchPad?開發板電路圖（4）
圖7.LaunchPad?開發板電路圖（5）
圖8.LaunchPad?開發板電路圖（6）
圖9.LaunchPad?開發板電路圖（7）

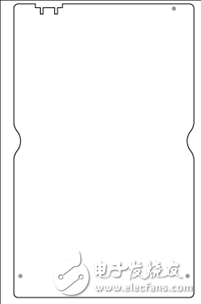

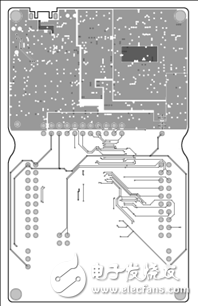

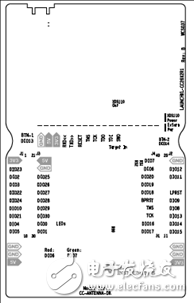

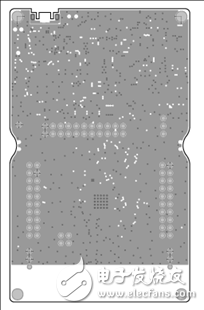

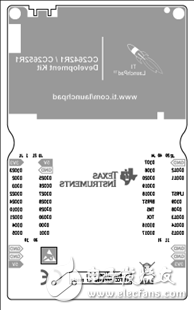

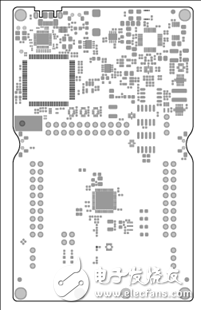

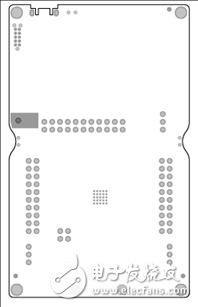

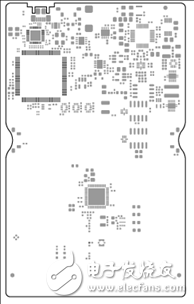

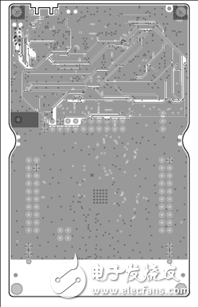

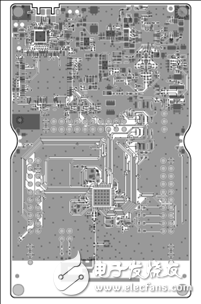

圖10.LaunchPad?開發板PCB設計圖（1）
圖11.LaunchPad?開發板PCB設計圖（2）
圖12.LaunchPad?開發板PCB設計圖（3）
圖13.LaunchPad?開發板PCB設計圖（4）
圖14.LaunchPad?開發板PCB設計圖（5）
圖15.LaunchPad?開發板PCB設計圖（6）
圖16.LaunchPad?開發板PCB設計圖（7）
圖17.LaunchPad?開發板PCB設計圖（8）
圖18.LaunchPad?開發板PCB設計圖（9）
圖19.LaunchPad?開發板PCB設計圖（10）
