本文介紹了LatticeXP2系列主要特性，LatticeXP2-17器件簡化方框圖，LatticeXP2標準評估板主要特性和LatticeXP2標準評估板電路圖。

Lattice 公司的LatticeXP2器件包括基于查找表（LUT）的 FPGA以及非易失閃存單元（flexiFLASH）。LatticeXP2系列器件的LUT從5K到40K，分布是RAM從10K到83Kb，EBR SRAM從166Kb到885Kb，EBR SRAM區塊從9到48個，sysDSP從3個到8個，18x18乘法器從12個到32個，可用的I/O從172個到540個，GPLL從2個到4個。工作電壓1.2V，主要用在對成本敏感的市場如消費類電子，汽車電子，醫療和工業，網絡和計算。

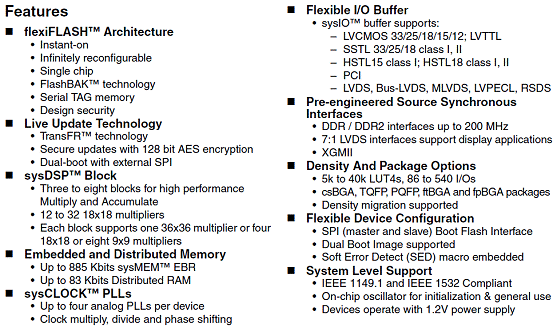

LatticeXP2主要特性：

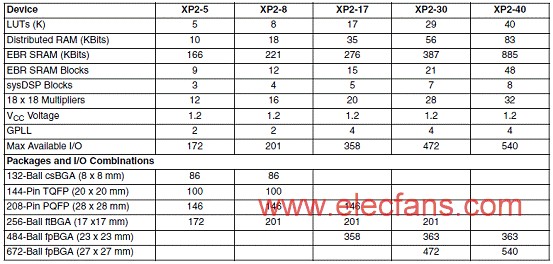

LatticeXP2系列產品：

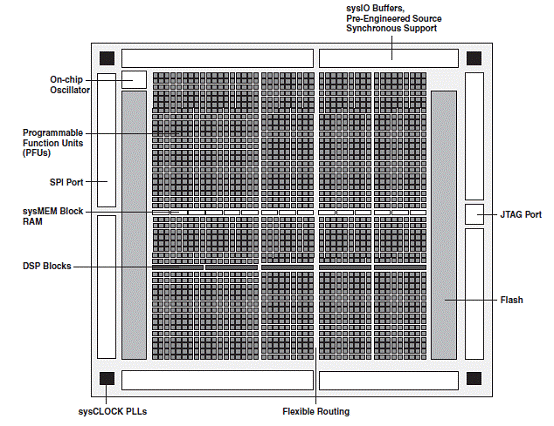

圖1。LatticeXP2-17器件簡化方框圖（頂視圖）

LatticeXP2 devices are ideal for a variety of applications in cost sensitive markets such as Consumer, Automotive, Medical & Industrial, Networking and Computing

LatticeXP2標準評估板

LatticeXP2 Standard Evaluation Board

The LatticeXP2? Standard Evaluation Board provides a convenient platform to evaluate, test and debug user designs. The board features a LatticeXP2-17 FPGA in a 484 fpBGA package. The LatticeXP2 I/Os are connected to a rich variety of interfaces described later in this document.

This document (including the schematics in the appendix) describes LatticeXP2 Standard Evaluation Boards marked as Rev 000. This marking can be seen on the etching on the back of the printed circuit board, under the Lattice Semiconductor logo.

The LatticeXP2 is a third-generation non-volatile FPGA device. It combines a Look-up Table (LUT) based FPGA fabric with Flash Non-volatile cells in a flexiFLASH? architecture. The flexiFLASH approach provides benefits such as instant-on, small footprint, on chip storage with FlashBAK? embedded block memories and Serial TAG memory and design security. The LatticeXP2 also supports live updates with TransFR?, 128-bit AES Encryption and Dual-Boot technologies. The LatticeXP2 devices include LUT-based logic, distributed and embedded memory, Phase Locked Loops (PLLs), pre-engineered source synchronous I/O and enhanced sysDSP? blocks.

圖2。LatticeXP2標準評估板外形圖

LatticeXP2標準評估板主要特性：

LatticeXP2 Standard Evaluation Board featuring

LatticeXP2-17 FPGA in 484fpBGA package (LFXP2-17E-6F484C)

On-board Asynch SRAM memory (256Kx32 providing 1Mbyte)

A/D converter (Burr Brown ADS7842)

D/A converter (Burr Brown DAC7617)

10K digital POT

RS232 DB9 "female" connector

Compact Flash connector

8-bit switch

8 general purpose LEDs

4 push-button switches

7-segment LED

Built-in USB download capability (includes MachXO device)

Selectable I/O voltage

SMA connectors for clock and general purpose I/O

PAC607 power manager

on-board oscillator (dip socket)

Proto/test area

SPI flash memory for alternate configuration

Power via Bellnix DC power control modules

LCD connector

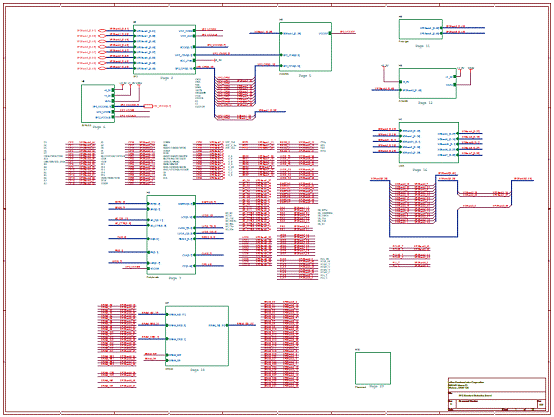

圖3。LatticeXP2標準評估板電路圖（1）

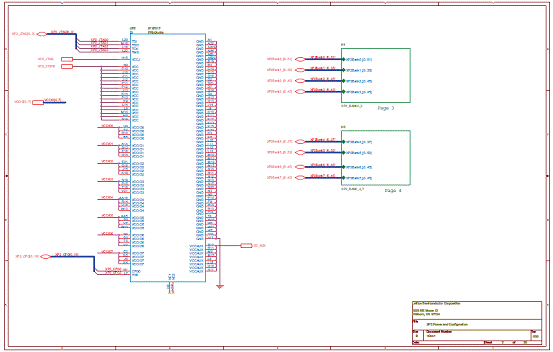

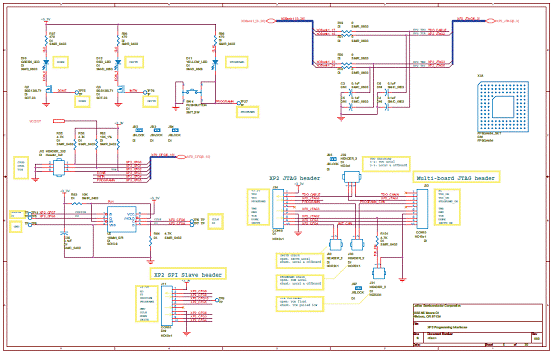

圖4。LatticeXP2標準評估板電路圖（2）：電源和配置

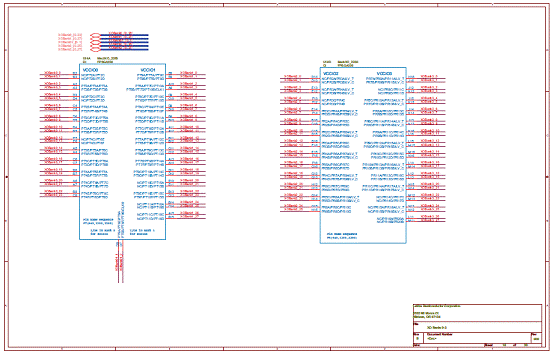

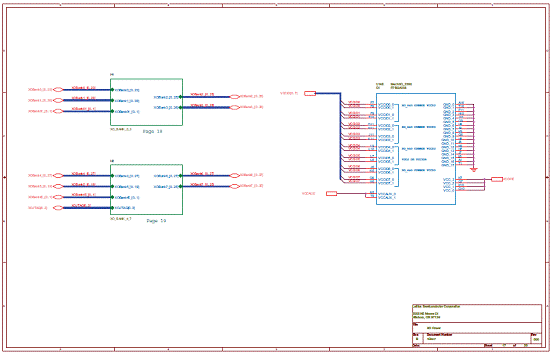

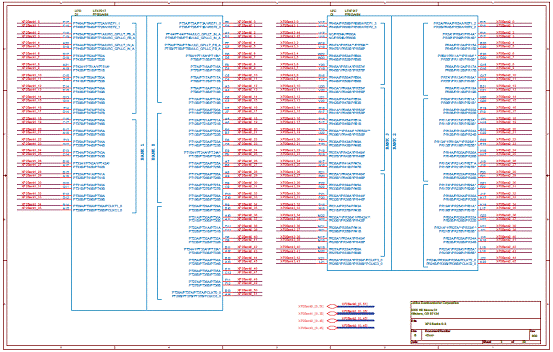

圖5。LatticeXP2標準評估板電路圖（3）：Bank 0-3

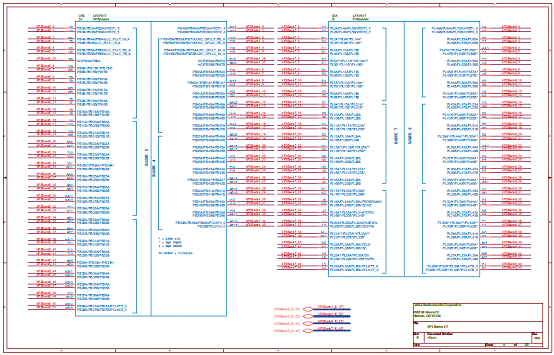

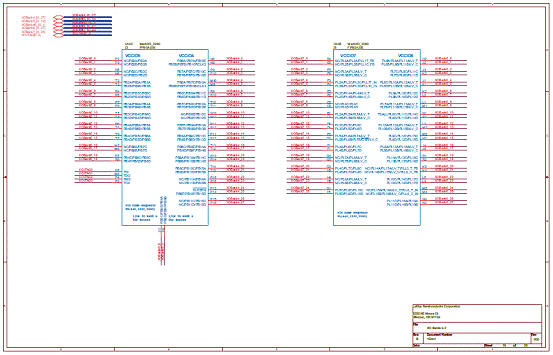

圖6。LatticeXP2標準評估板電路圖（4）：Bank 4-7

圖7。LatticeXP2標準評估板電路圖（5）：可編程接口

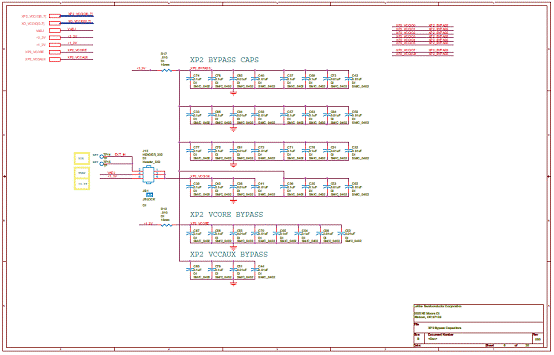

圖8。LatticeXP2標準評估板電路圖（6）：旁路電容

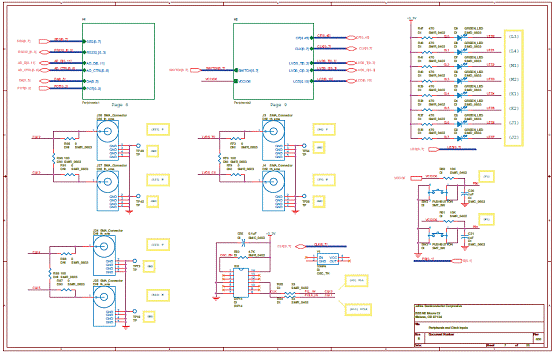

圖9。LatticeXP2標準評估板電路圖（7）：外設和時鐘輸入

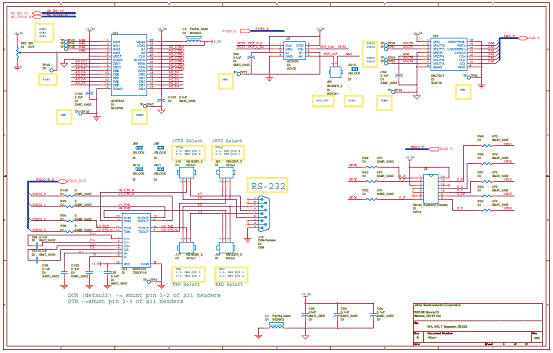

圖10。LatticeXP2標準評估板電路圖（8）：D/A，A/D，7段和RS232

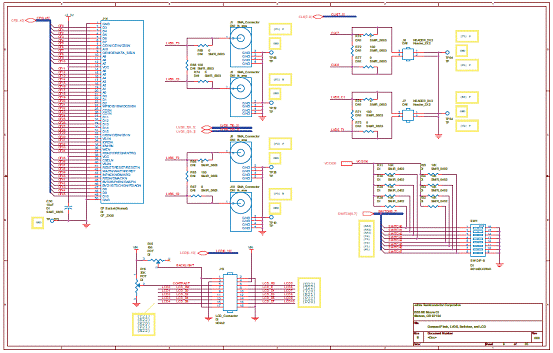

圖11。LatticeXP2標準評估板電路圖（9）：緊湊閃存，LVDS，開關和LCD

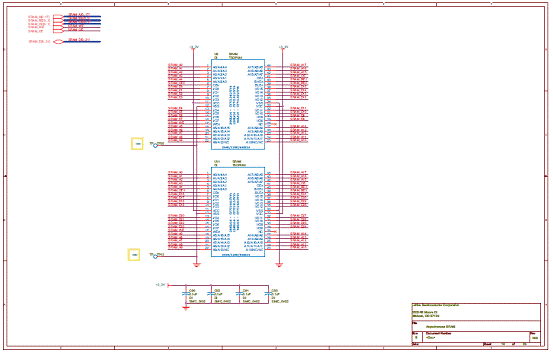

圖12。LatticeXP2標準評估板電路圖（10）：異步SRAM

圖13。LatticeXP2標準評估板電路圖（11）：原型柵格

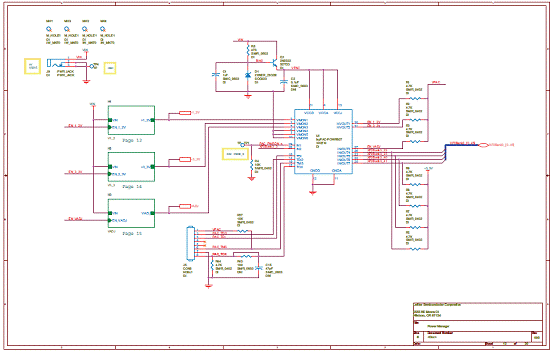

圖14。LatticeXP2標準評估板電路圖（12）：電源管理

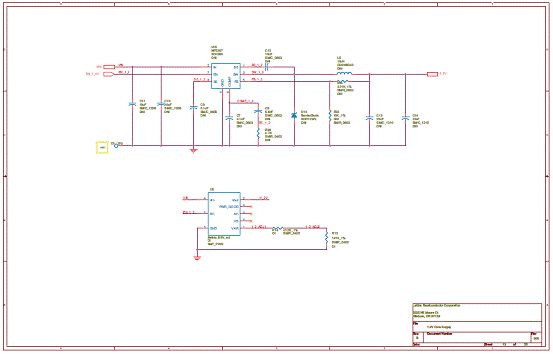

圖15。LatticeXP2標準評估板電路圖（13）：1.2V和電源

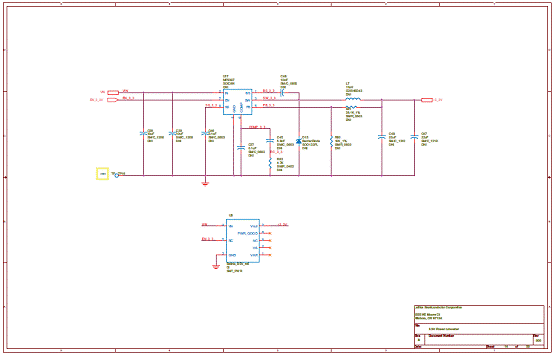

圖16。LatticeXP2標準評估板電路圖（14）：3.3V電源轉換器

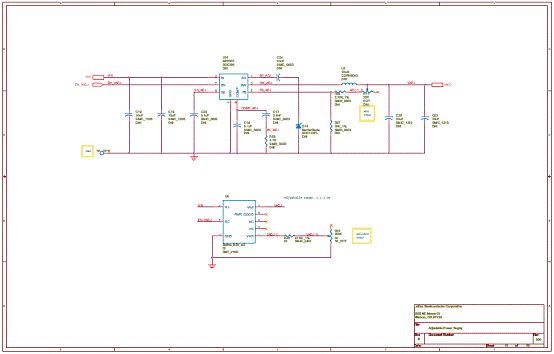

圖17。LatticeXP2標準評估板電路圖（15）：可調整電源

圖18。LatticeXP2標準評估板電路圖（16）：USB下載PHY

圖19。LatticeXP2標準評估板電路圖（17）：MachXO電源

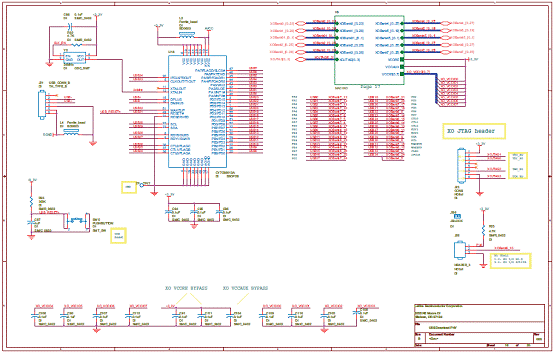

圖20。LatticeXP2標準評估板電路圖（18）：MachXO Bank 0-3

圖21。LatticeXP2標準評估板電路圖（19）：MachXO Bank 4-7

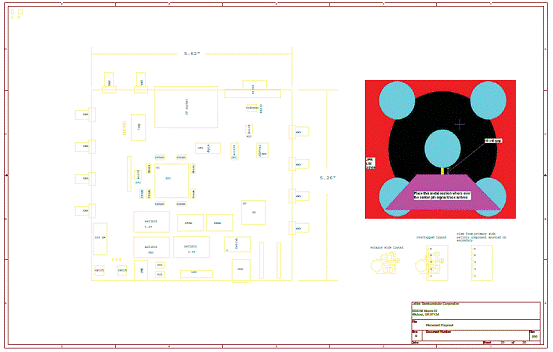

圖22。LatticeXP2標準評估板電路圖（20）：布置方案
