本文主要介紹利用FPGA的自身的特性實現隨機數發生器，在Virtex-II Pro開發板上用ChipScope觀察隨機數序列，以及在PCIe4Base（基于Virtex-4 FPGA）上實現。

基本的原理

隨機數在計算機科學中的密碼學中有著重要的用途，常常被用作密鑰的來源。隨機數包括偽隨機數以及真隨機數。偽隨機數是通過一定的算法計算得出，具有類似于隨機數的統計特征，這樣的發生器稱為偽隨機數發生器。而真隨機數是通過物理現象產生，例如使用電子元件的噪聲、核裂變等等作為噪聲源[2],這樣的隨機數發生器叫做物理隨機數發生器，也叫做真隨機數發生器（TRNG：Ture Random Number Generator）。

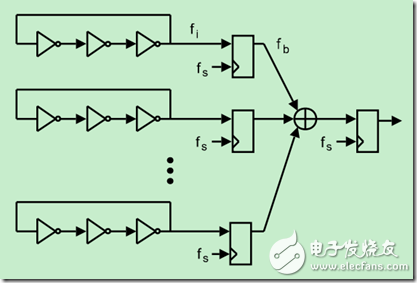

基于FPGA的隨機數發生器基本原理是利用奇數個反相器組成振蕩器作為隨機數發生器的噪聲源，因?yàn)橛捎贔PGA自身的特性--信號傳輸存在抖動，所以多個反相器組成振蕩器輸出也不是很穩定的時鐘信號，每個振蕩器輸出不是相同的，這樣成為了理想的噪聲源，見圖1。振蕩器輸出通過D觸發器進行采樣輸出，采樣頻率是fs，然后多個采樣輸出結果經過異或門之后再通過一個D觸發器進行采樣，采樣頻率還是fs。這樣簡單的隨機數發生器就完成了。

實現

根據前面所述的原理圖，進行如下設計：抽樣頻率是fs為50MHz，用3個反相器組成一個振蕩器，共用了25個振蕩器。因?yàn)檎麄€結構很簡單，這里就不多講述，主要想說的是振蕩器的描述。為了避免綜合器將振蕩器進行一定的優化從而背離當初的設計，所以在代碼中添加了屬性語句，用于保證網絡不被優化掉。見28至31行，36至39行。

1: library IEEE;
2: use IEEE.STD_LOGIC_1164.ALL;
3: use IEEE.STD_LOGIC_ARITH.ALL;
4: use IEEE.STD_LOGIC_UNSIGNED.ALL;
5: ---- Uncomment the following library declaration if instantiating
6: ---- any Xilinx primitives in this code.
7: library UNISIM;
8: use UNISIM.VComponents.all;
9:
10: entity Ring_osc_3 is
11: port ( clk : in STD_LOGIC;
12: D_out : out STD_LOGIC
13: );
14: end Ring_osc_3;
15:
16: architecture Behavioral of Ring_osc_3 is
17: ---------------------------------------
18: -- Interial signal in the Ring_OSC
19: ---------------------------------------
20: signal delay1 : std_logic;
21: signal delay2 : std_logic;
22: signal delay3 : std_logic;
23:
24: ---------------------------------------------------------------------
25: --Attributes to stop delay logic from being optimised.
26: ---------------------------------------------------------------------
27: attribute keep : string;
28: attribute keep of delay1 :signal is "true";
29: attribute keep of delay2 :signal is "true";
30: attribute keep of delay3 :signal is "true";
31:
32: ---------------------------------------------------------------------
33: --Attributes to stop trim logic from being optimised
34: ---------------------------------------------------------------------
35: attribute s : string;
36: attribute s of delay1 : signal is "true";
37: attribute s of delay2 : signal is "true";
38: attribute s of delay3 : signal is "true";
39: 40: ---------------------------------------
41: --Code start
42: ---------------------------------------
43:
44: begin
45: --osc_out is the last invertor output,
46: --and also the output feeds back to the first invertor
47: --invertor 1
48: inv_lut1: LUT1
49: generic map (init => X"1")
50: port map (
51: I0 => delay1,
52: O => delay2);
53:
54: --invertor 2
55: inv_lut2: LUT1
56: generic map (init => X"1")
57: port map (
58: I0 => delay2,
59: O => delay3);
60:
61: --invertor 3
62: inv_lut3: LUT1
63: generic map (init => X"1")
64: port map (
65: I0 => delay3,
66: O => delay1);
67:
68: --D Flip-flop
69: D_ff : FD
70: port map (
71: D => delay3,
72: Q => D_out,
73: C => clk);
74:
75: end Behavioral;

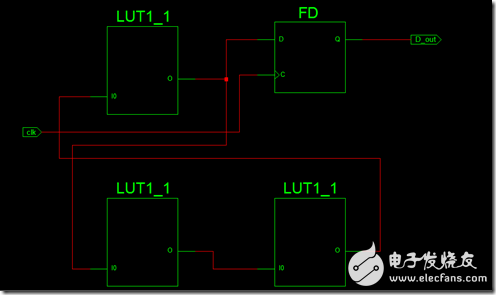

振蕩器最后綜合出來的結果是（圖2）：

ChipScope的觀察
