ST公司的SPEAr320是具有ARM926內核的嵌入MPU,最適合用于工廠自動化和消費類電子產品.功能強大的ARM926EJ-S處理器工作頻率高達333MHz,具有高性能的8路DMA,32KB ROM和8KB SRAM,LPDDR-333/DDR2-666 外接存儲器接口,SDIO/MMC 卡接口以及串行閃存接口(SMI),外設支持TFT/STN LCD控制器,各種功能的觸摸屏,支持1Msps的8路10位ADC和4xPWM定時器.主要用在可編程邏輯控制器,工廠自動化和打印機.而EVALSPEAr320PLC評估板包括CPU板和MII模式應用板.本文介紹了CPU板和MII模式應用板主要特性,方框圖,布局圖以及MII模式應用板的詳細電路圖.

This user manual describes the implementation of the SPEAr320PLC evaluation board (order code: EVALSPEAr320PLC). This evaluation board can be used to evaluate the SPEAr320 microprocessor with a variety of devices and especially its Media Independent Interface (MII) Automation mode.

The EVALSPEAr320PLC evaluation board kit comprises two boards:

CPU board

MII mode application board

The SPEAr320 microprocessor is mounted on the CPU board that is plugged on the MII mode application board.

The application board is equipped with two Ethernet, three RS-232, one RS-485, two CAN, SPI, I2C communication interfaces and MicroSD card socket with SDIO interface. There are also two general-purpose push-buttons, four LEDs, a temperature sensor and a potentiometer available for the user interface.

The application board also includes digital input/output serial/parallel connectors with a pinout compatible to many existing evaluation boards from ST:

Digital input serial: STEVAL-IFP007V1

Digital input parallel: STEVAL-IFP004V1 and STEVAL-IFP008V1

Digital output serial: STEVAL-IFP009V1

Digital output parallel: STEVAL-IFP002V1, STEVAL-IFP001V1 and STEVAL-IFP006V1 The application board can be powered using a standard DC power supply (7 V to 30 V DC) or directly using a 24 V DC industrial mains supply.

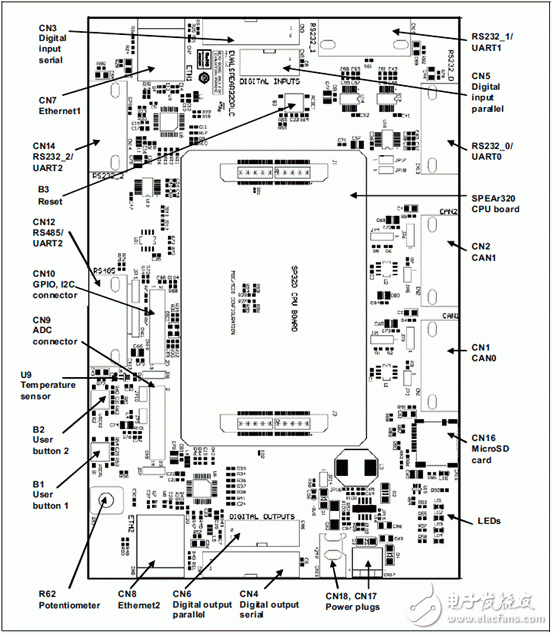

圖1.SPEAr320 MII模式應用板外形圖

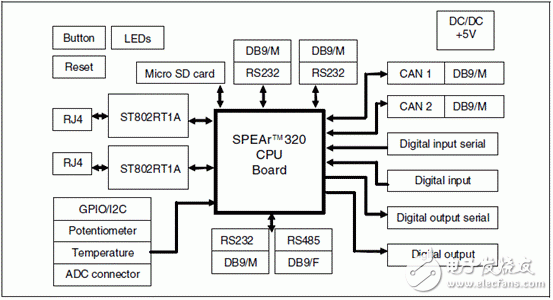

MII應用板主要特性:

2 x Ethernet RJ-45 connectors (ST802RT1A)

2 x CAN DB9 plug connectors

3 x RS-232 DB9 plug connectors (ST3232EBTR)

1 x RS-485 DB9 socket connector (ST3485EBDR)

Digital input connectors (parallel and serial) compatible with STEVAL-IFP007V1,STEVAL-IFP008V1 and STEVAL-IFP004V1 evaluation boards

Digital output connectors (parallel and serial) compatible with STEVAL-IFP009V1,STEVAL-IFP001V1, STEVAL-IFP002V1 and STEVAL-IFP006V1 evaluation boards

On-board temperature sensor (STLM20W87F) and potentiometer (analog input for ADC)

Analog extension connector featuring 8 ADC lines

General-purpose extension connector with GPIOs and I2C functionality

DC/DC converter L7986A (+24 V / +5 V)

MicroSD card socket

4 LEDs, 2 general-purpose buttons and system reset button

CPU板主要特性:

SPEAr320 embedded MPU

Up to 2 Gbit DDR2 333 MHz (standard 128 Mbytes)

Up to 16 Mbyte Serial Flash memory (standard 8 Mbytes)

Two USB 2.0 full host port channels

One USB 2.0 host device port

One serial port (up to 115 baud)

JTAG Debug ports

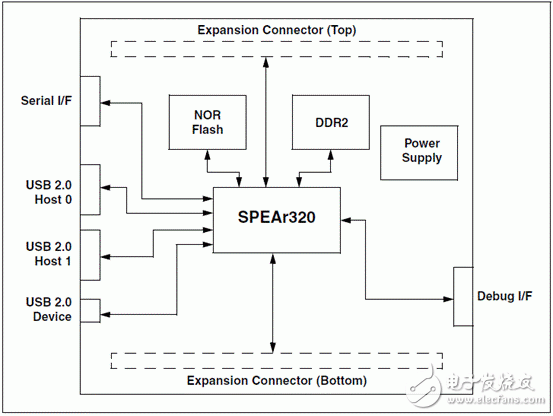

圖2.CPU板方框圖

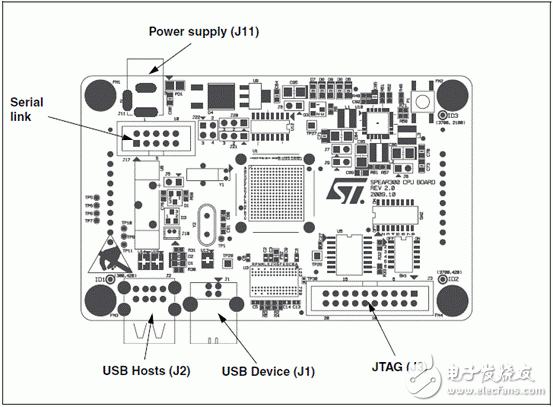

圖3.CPU板布局圖(頂視圖)

CPU板更詳細的資料,請見:

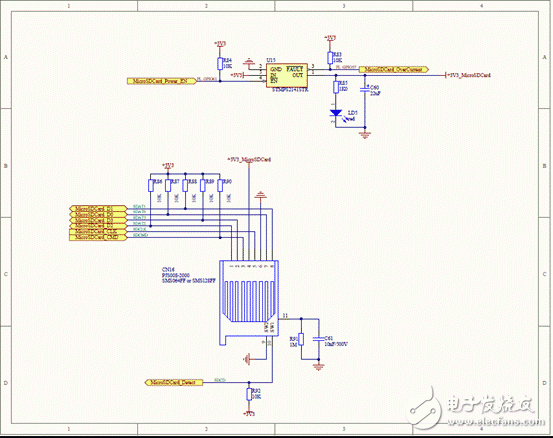

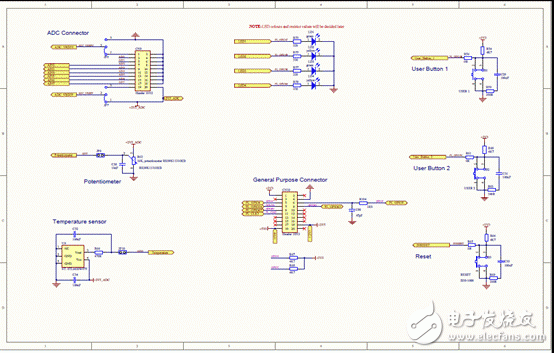

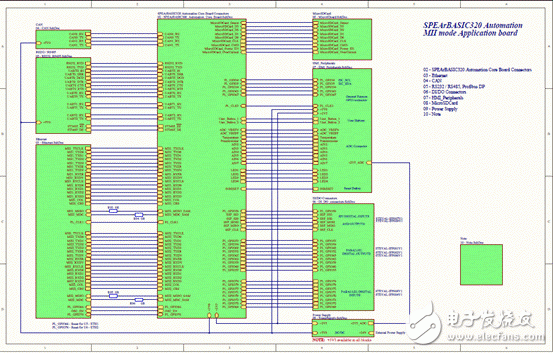

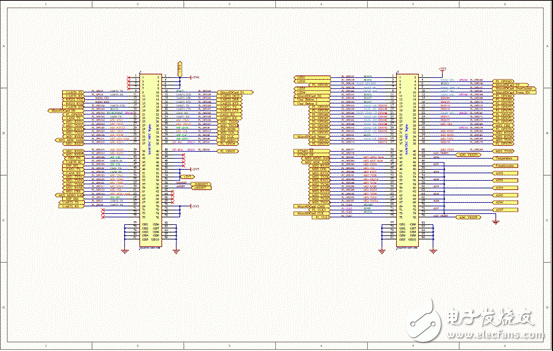

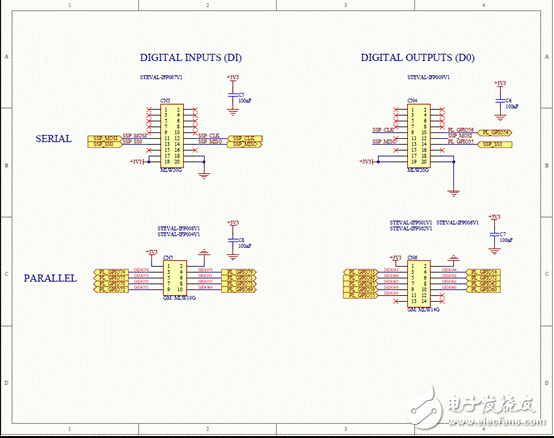

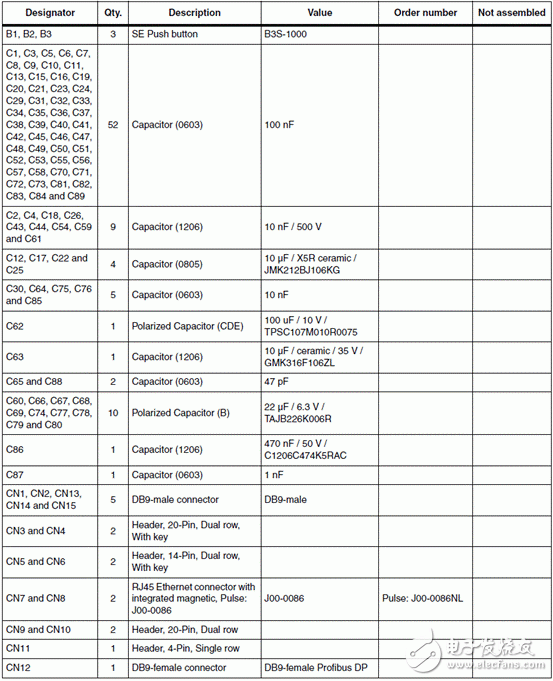

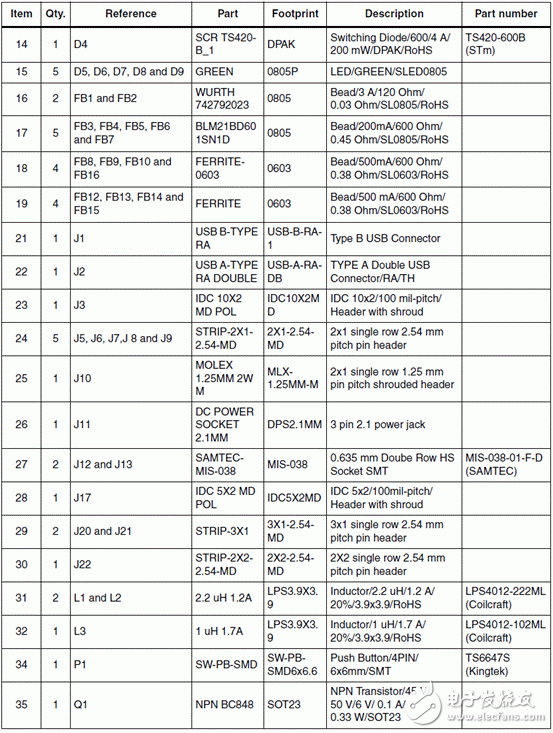

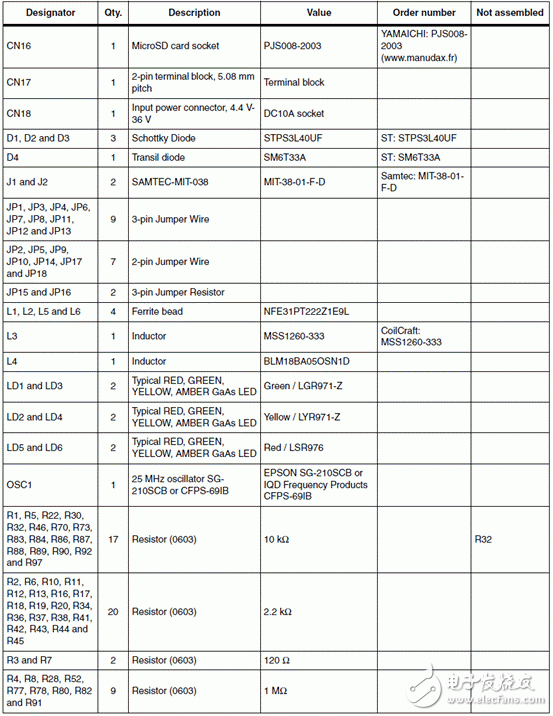

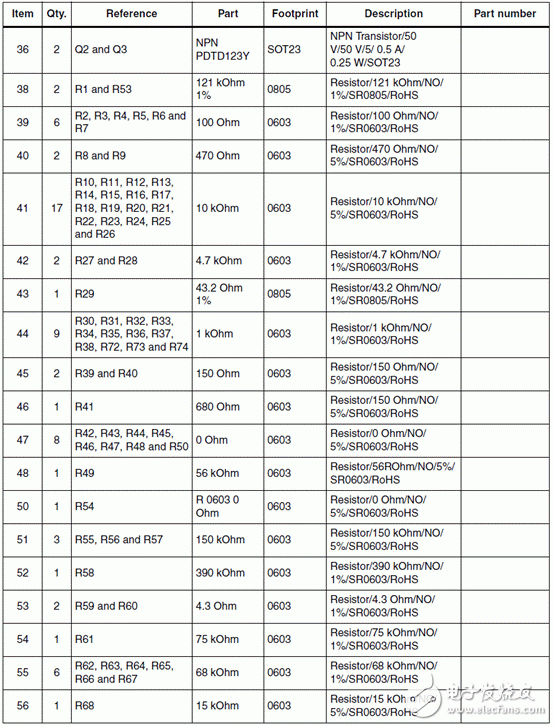

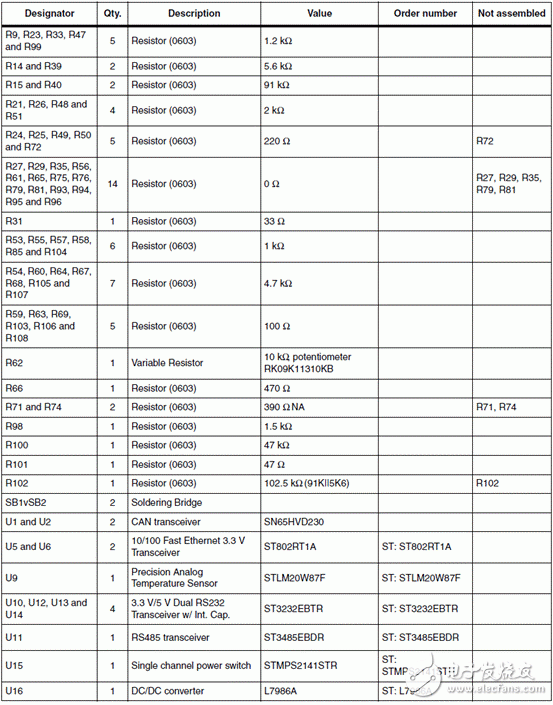

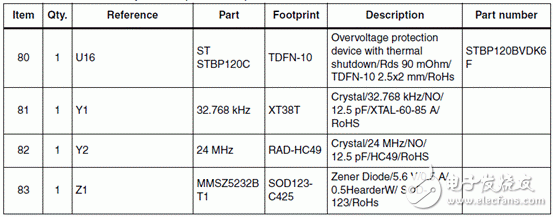

MII應用板材料清單(BOM):

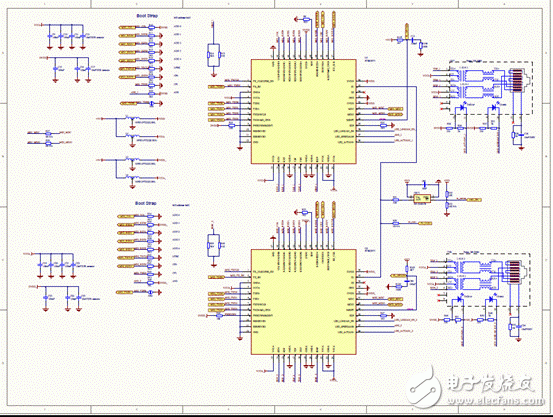

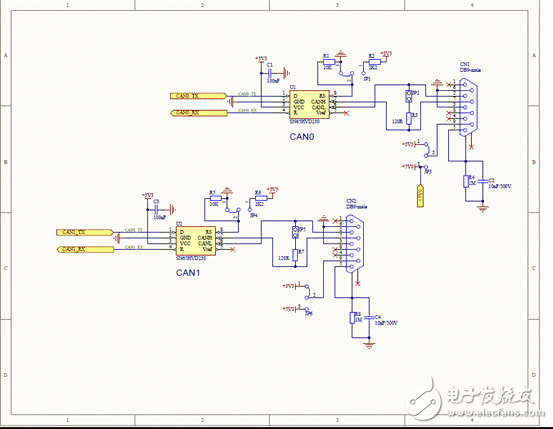

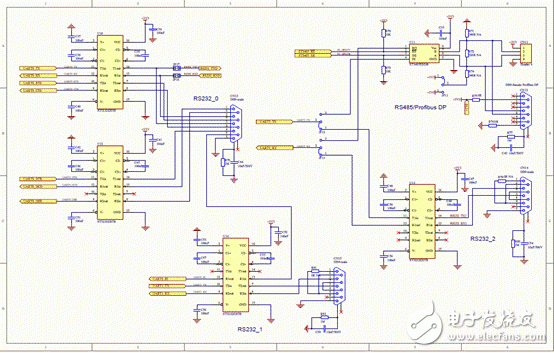

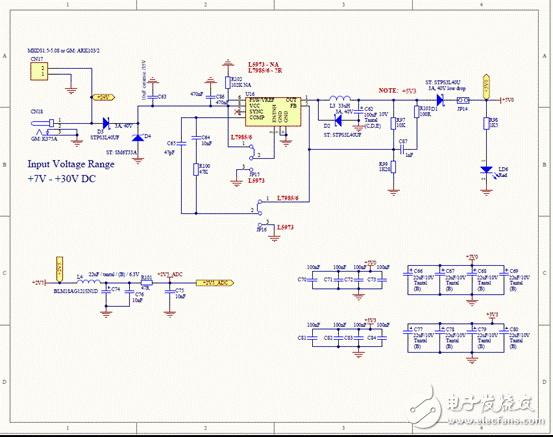

詳情請見:

和
?
