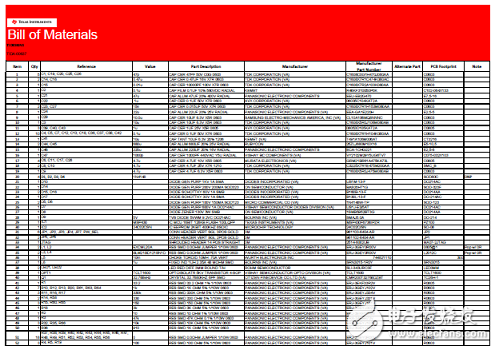

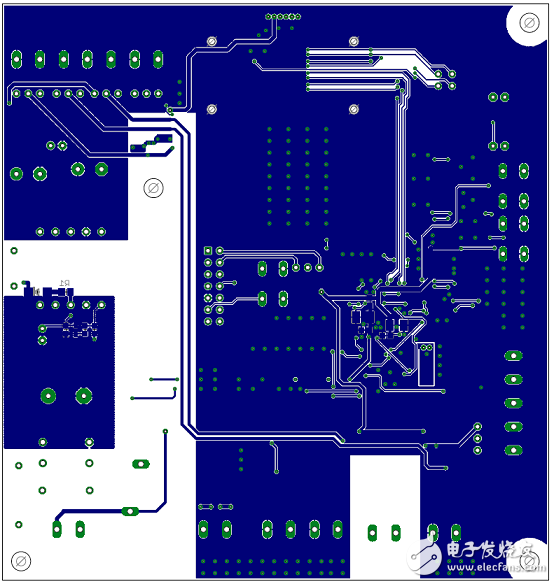

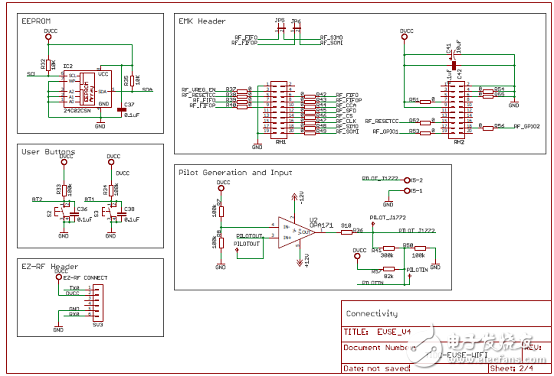

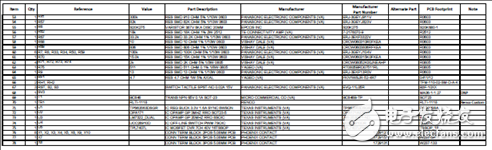

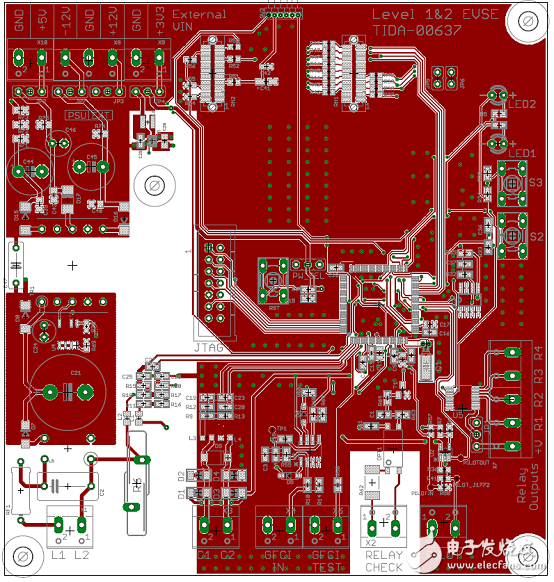

TI公司的CC3100是SimpleLink? Wi-Fi網絡處理器,可以連接任何低成本低功耗的MCU到物聯網(IoT).器件集成了Wi-Fi和互聯網所有的協議,從而大大減少了主MCU的軟件要求.CC3100提供了完整的解決方案平臺,包括各種工具和軟件,應用案例,用戶和編程指南,參考設計和E2E支持社區.本文介紹了CC3100主要特性,硬件框圖和軟件框圖,SimpleLink Wi-Fi解決方案功能框圖和應用電路,以及電動汽車服務裝備(EVSE)加裝Wi-Fi功能參考設計TIDC-EVSE-WIFI主要特性,電路圖,材料清單和PCB設計圖.

The CC3100 device is the industry’s first Wi-Fi CERTIFIED chip used in the wireless networking solution. The CC3100 device is part of the new SimpleLink Wi-Fi family that dramatically simplifies the implementation of Internet connectivity. The CC3100 device integrates all protocols for Wi-Fi and Internet, which greatly minimizes host MCU software requirements. With built-in security protocols, the CC3100 solution provides a robust and simple security experience. Additionally, the CC3100 device is a complete platform solution including various tools and software, sample applications, user and programming guides, reference designs and the TI E2E? support community. The CC3100 device is available in an easy-to-layout QFN package.

The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a-Chip and contains an additional dedicated ARM MCU that completely offloads the host MCU. This subsystem includes an 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet connections with 256-bit encryption. The CC3100 device supports Station, Access Point, and Wi-Fi Direct modes. The device also supports WPA2 personal and enterprise security and WPS 2.0. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols.

The power-management subsystem includes integrated DC-DC converters supporting a wide range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate with RTC mode requiringabout 4 μA of current.

The CC3100 device can connect to any 8, 16, or 32-bit MCU over the SPI or UART Interface. The device driver minimizes the host memory footprint requirements requiring less than 7KB of code memory and 700 B of RAM memory for a TCP client application.

CC3100主要特性:

CC3100 SimpleLink Wi-Fi Consists of Wi-Fi Network Processor and Power-Management Subsystems

Wi-Fi CERTIFIED? Chip

Wi-Fi Network Processor Subsystem

Featuring Wi-Fi Internet-On-a-Chip?

Dedicated ARM MCU

Completely Offloads Wi-Fi and Internet Protocols from the External Microcontroller

Wi-Fi Driver and Multiple Internet Protocols in ROM

802.11 b/g/n Radio, Baseband, and Medium Access Control (MAC), Wi-Fi Driver, and Supplicant

TCP/IP Stack

Industry-Standard BSD Socket Application Programming Interfaces (APIs)

8 Simultaneous TCP or UDP Sockets

2 Simultaneous TLS and SSL Sockets

Powerful Crypto Engine for Fast, Secure Wi-Fi and Internet Connections with 256-Bit AES Encryption for TLS and SSL Connections

Station, AP, and Wi-Fi Direct? Modes

WPA2 Personal and Enterprise Security

SimpleLink Connection Manager for Autonomous and Fast Wi-Fi Connections

SmartConfig? Technology, AP Mode, and WPS2 for Easy and Flexible Wi-Fi Provisioning

TX Power

18.0 dBm @ 1 DSSS

14.5 dBm @ 54 OFDM

RX Sensitivity

–95.7 dBm @ 1 DSSS

–74.0 dBm @ 54 OFDM

Application Throughput

UDP: 16 Mbps

TCP: 13 Mbps

Host Interface

Interfaces with 8-, 16-, and 32-Bit MCU or ASICs Over SPI or UART Interface

Low External Host Driver Footprint: Less Than 7KB of Code Memory and 700 B of RAM Memory Required for TCP Client Application

Power-Management Subsystem

Integrated DC-DC Supports a Wide Range of Supply Voltage:

VBAT Wide-Voltage Mode: 2.1 to 3.6 V

Preregulated 1.85-V Mode

Advanced Low-Power Modes

Hibernate with RTC: 4 μA

Low-Power Deep Sleep (LPDS): 115 μA

RX Traffic (MCU Active): 53 mA @ 54?OFDM

TX Traffic (MCU Active): 223 mA @ 54?OFDM, Maximum Power

Idle Connected: 690 μA @ DTIM = 1

Clock Source

40.0-MHz Crystal with Internal Oscillator

32.768-kHz Crystal or External RTC Clock

Package and Operating Temperature

0.5-mm Pitch, 64-Pin, 9-mm × 9-mm QFN

Ambient Temperature Range: –40℃ to 85℃

SimpleLink Wi-Fi的解決方案

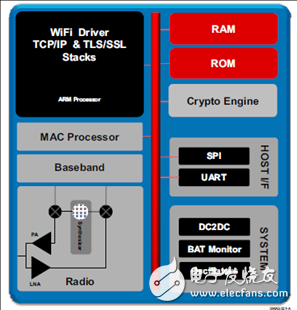

圖1.CC3100硬件概述

SimpleLink Wi-Fi的解決方案

圖2.CC3100軟件概述

SimpleLink Wi-Fi的解決方案

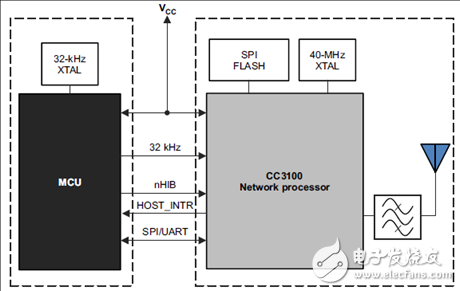

圖3.CC3100SimpleLink Wi-Fi解決方案功能框圖

SimpleLink Wi-Fi的解決方案

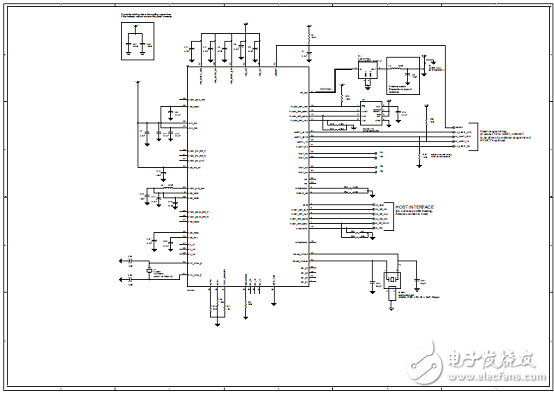

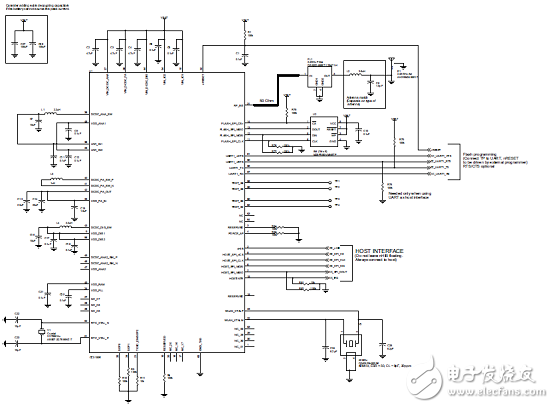

圖4.CC3100寬電壓模式應用電路

SimpleLink Wi-Fi的解決方案

圖5.CC3100預穩壓1.85V模式應用電路

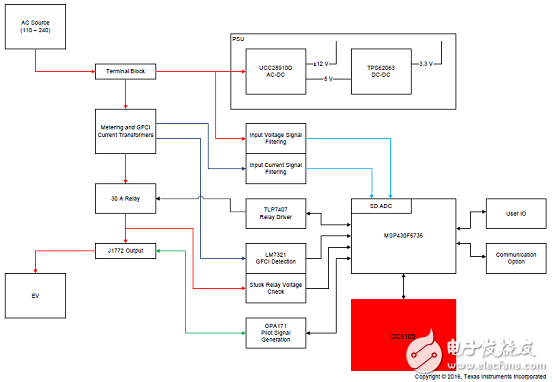

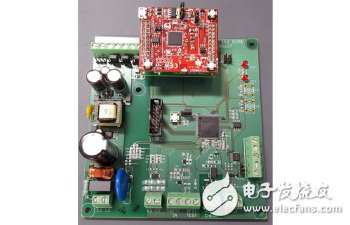

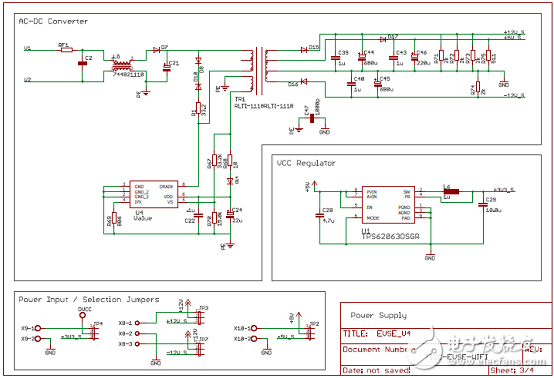

電動汽車服務裝備(EVSE)加裝Wi-Fi功能參考設計TIDC-EVSE-WIFI

This verified TI Design details how to implementJ1772-compliant level 1 and level 2 electric vehicleservice equipment (EVSE) with added Wi-Fi?functionality. The CC3100 network processor enableshighly embedded devices like the EVSE to easilyconnect to an existing wireless network or directly to adevice. By integrating this functionality in an EVSE, thedesign is capable of remote-power monitoring andcontrol of the charging state of the connected electricvehicle.

電動汽車服務裝備(EVSE)加裝Wi-Fi功能參考設計特性:

? Full Implementation of J1772-Compliant ServiceEquipment

? Wi-Fi Support for Remote Monitoring and Controlof EVSE

? High Current Relay Drivers for Support of HighCurrent Contactors

? Standardized Pilot Wire Signaling Protocol

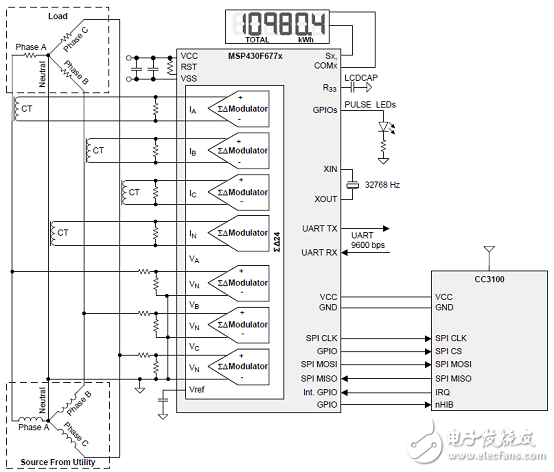

? Integrated Utility Meter-Grade EnergyMeasurement

? Option for Communication Daughter Card Add-in

Featured Applications

? Level 1 and Level 2 Electric Vehicle ServiceEquipment (EVSE)
