Infineon公司的TLE9844-2QX是集成了ARM? Cortex?-M0微控制器和繼電器驅動器,高邊開關,LIN收發器和電源系統,它的外設包括有13個復接模擬輸入的10位ADC,能處理多達5個高壓監視輸入,6個低壓輸入和2個用于檢測電池電壓和設備電源的高壓輸入.還包括有用于電壓和溫度監測的7個復接輸入8位ADC.主要用在汽車窗戶提升,頂棚,雨刷,電扇和電泵,泵馬達控制和LIN地址繼電器馬達.本文介紹了TLE9844-2Q主要優勢和框圖,應用電路及其材料清單,以及應用評估板TLE9844-2QX Appkit主要特性,概念圖和電路圖,以及PCB設計圖和元件分布圖.

The TLE984x product family integrates an ARM? Cortex?-M0 microcontroller core along with relay drivers, high side switches, LIN transceiver and a power supply system that enables the device to operate at the vehicle battery level.

Its peripheral set includes a 10-bit ADC with 13 multiplexed analog inputs to process up to 5 high-voltage monitoring inputs, 6 low-voltage inputs and 2 high-voltage inputs for sensing the battery voltage and the supply of the device. It further includes an 8-bit ADC with 7 multiplexed inputs for voltage and temperature super vision. Its digital peripherals include a PWM signal generator unit and 16-bit timers along with a number of general purpose I/Os (serial interfaces and UARTs). It includes an on-chip linear voltage regulator to supply external loads.

The TLE984x family concept offers scalability in terms of flash memory sizes ranging from 36 kB to 64 kB with pin-compatible devices. It is specifically designed to drive a wide range of LIN-slave motor control automotive applications via a relay or via a PN MOSFET half-bridge, such as window lifts, sunroofs, wipers, electric fans and pumps to name a few.

TLE9844-2Q主要優勢:

Enable cost and board space improvements – our system-on-chip solution integrates data processing, actuation and sensing. The chip comes in a leadless VQFN package with 7 x 7 mm footprint and enables PCB space saving.

The TLE984x family allows driving relays and MOSFETs at VBATT ≥ 6 V without external components, providing a very cost effective solution on a system level.

Enabling high levels of system reliability – extensive diagnostics and protections are embedded within the system-on-chip, more than a discrete approach can offer.In addition both the Embedded Power IC and the external MOFESTs can be protected.

Support multiple and flexible designs with minimal effort – all TLE984x devices are pin and software compatible, maximizing a single design through scalability.

TLE9844-2Q主要特性:

ARM? Cortex?-M0 MCU
System clock up to 40 MHz
Up to 64 kB flash memory
Up to 4 KB RAM
High-side and low-side switches with PWM capability
5 V power supply output
Integrated LIN transceiver compatible with LIN standard 2.2 and SAE J2602-supports fast programming via LIN
Measurement unit:8-bit ADC with 7 channels for voltage and temperature supervision
10-bit ADC with 13 channels (6 analog inputs, 5 HV monitor inputs and battery sense)
On chip temperature and battery voltage measurement
On-chip oscillator and PLL
AEC-Q100 qualified

TLE9844-2Q應用:

Window lift
Sunroof
Wiper
Electric fans
Electric pumps
Wiper
Fan/Blower Motor Control
Pump Motor Control.
LIN addressed Relay Motor Applications

TLE9844-2Q主要特性總結:

? 32-bit ARM Cortex-M0 Core
– up to 40 MHz clock frequency
– one clock per machine cycle architecture
– single cycle multiplier
? On-chip memory
– 64 KB Flash (including EEPROM)
– 4 KB EEPROM (emulated in Flash)
– 768 bytes 100 Time Programmable Memory (100TP)
– 4 KB RAM
– Boot ROM for startup firmware and Flash routines
? On-chip OSC
? 2 Low-Side Switches incl. PWM functionality, can be used e.g. as relay driver
? 2 High-Side Switches with cyclic sense option and PWM functionality, e.g. for supplying LEDs or switch panels(min. 150 mA)
? 5 High Voltage Monitor Input pins for wake-up and with cyclic sense with analog measurement option
? 10 General-purpose I/O Ports (GPIO)
? 6 Analog input Ports
? 10-Bit A/D Converter with 6 analog inputs + VBAT_SENSE + VS + 5 high voltage monitoring inputs
? 8-Bit A/D Converter with 7 inputs for voltage and temperature supervision
? Measurement unit with 12 channels together with the onboard 10-Bit A/D converter and data post processing
? 16-Bit timers - GPT12, Timer 2 and Timer 21
? Capture/compare unit for PWM signal generation (CCU6)
? 2 full duplex serial interfaces (UART1, UART2), UART1 with LIN support
? 2 synchronous serial channels (SSC1, SSC2)
? On-chip debug support via 2-wire SWD
? LIN Bootstrap loader to program the Flash via LIN (LIN BSL)
? 1 LIN 2.2 transceiver
? Single power supply from 3.0 V to 28 V
? Low-dropout voltage regulators (LDO)
? 5 V voltage supply VDDEXT for external loads (e.g. Hall-sensor)
? Core logic supply at 1.5 V
? Programmable window watchdog (WDT1) with independent on-chip clock source
? Power saving modes:
– Micro Controller Unit slow-down mode
– Sleep Mode with cyclic sense option
– Cyclic wake-up during Sleep Mode
– Stop Mode with cyclic sense option
? Power-on and undervoltage/brownout reset generator
? Overtemperature protection
? Short circuit protection for all voltage regulators and actuators (High Side, Low Side)
? Loss of clock detection with fail safe mode for power switches
? Temperature Range TJ: -40℃ up to 150℃
? Package VQFN-48-31 with LTI feature
? Green package (RoHS compliant)
? AEC Qualified

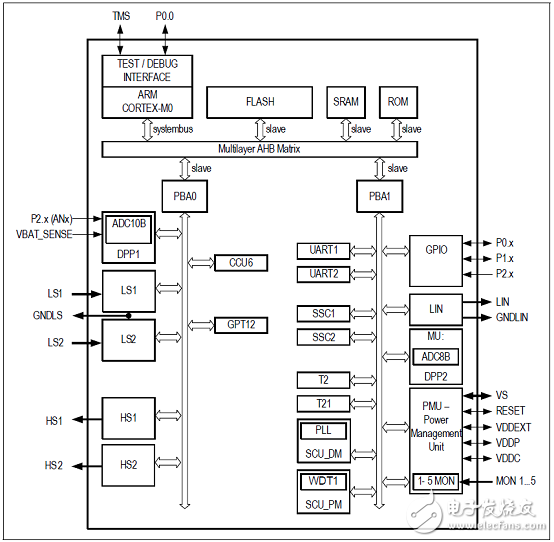

圖1.TLE9844-2Q框圖

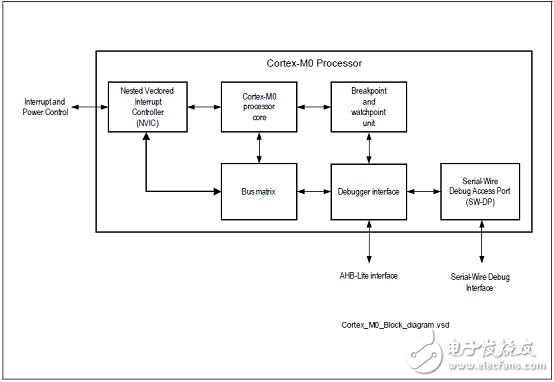

圖2.TLE9844-2Q Cortex-M0功能框圖

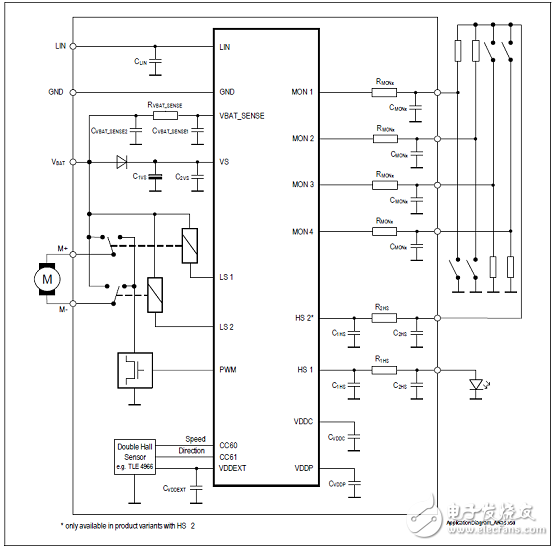

圖3.TLE9844-2Q簡化應用案例電路圖

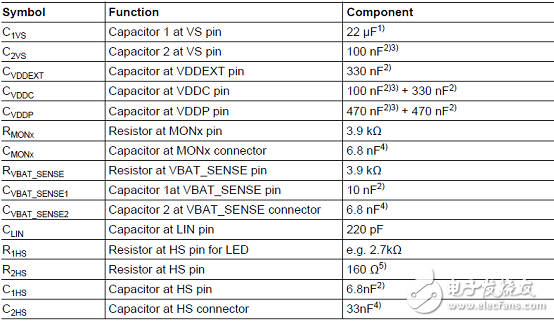

應用案例外接元件清單(BOM):

應用評估板TLE9844-2QX Appkit

The TLE9844-2QX Appkit is designed to evaluate hardware and software functionalities of theTLE9844-2QX in an application similar designed shape.
The 2-Channel Relay is connected to the integrated low side switches to drive DC motors bidirektionally.

This documentation describes the basic use of the TLE9844-2QX Appkit.The TLE9844-2QX Appkit provides an application near circuit to evaluate relay based bidirectional dc motorapplications.

圖4.應用評估板TLE9844-2QX Appkit外形圖

The TLE9844-2QX device is placed near a 2-Channel Relay. The board is protected against reverse polarity ofinput voltage supply. GPIOs, high voltage monitor PINs and high side switches are accessible via pin headconnectors.

The Application Kit provides an On-Board debugger. It provides a SWD-Debug connection and a virtual COMport for serial UART communication.
Power supply and motor connectors are accessable via plated through hole contacts, which can be used toplace M2.5 pressnuts (optionally).

應用評估板TLE9844-2QX Appkit主要特性:

? Application near circuit (e.g. Window lift)
? LIN-PWM Interface
? 2-Channel Relay for bidirectional dc motor control
? Analog Pins with additional GND connector (double row pin header)
? GPIOs accessible (pin header)
? High side switches accessible (pin header)
? USB-Communication and Debug-Interface (USB-Connector)
? Example Code (KeilμVision 5)

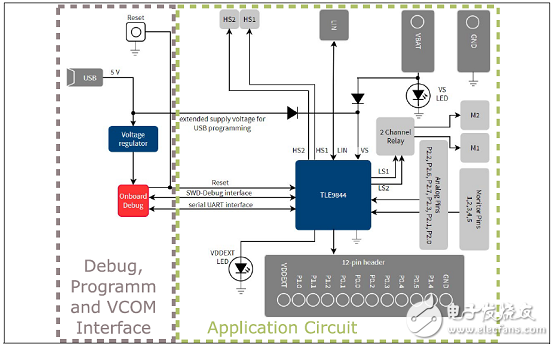

圖5.應用評估板TLE9844-2QX Appkit概念圖

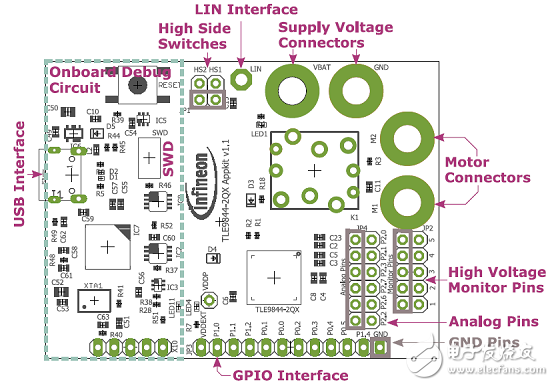

圖6.應用評估板TLE9844-2QX Appkit互連圖

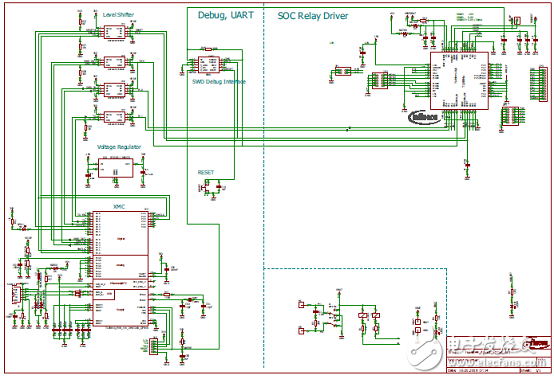

圖7.應用評估板TLE9844-2QX Appkit電路圖:TLE9845QX和PN-MOSFET半橋和板上調試接口

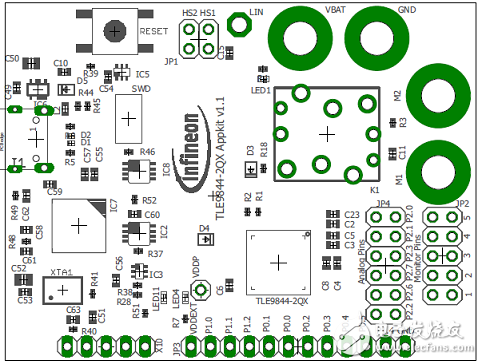

圖8.應用評估板TLE9844-2QX Appkit PCB元件布局圖

圖9.應用評估板TLE9844-2QX Appkit PCB布局圖
