功率因數校正在能量收集系統中最大化功率效率和質量

　　在任何配電系統中，非電阻性負載會使電流和電壓發生相位偏移，導致無功功率損失。當電流和電壓在純電阻性負載的情況下保持相位時，感性負載存儲無功功率并導致電流滯后電壓，而容性負載導致電流導通電壓。當電流波形不跟隨電壓波形時，不僅失去功率，而且產生的諧波可以通過配電系統傳播，破壞其他連接的設備。

　　當電流和電壓波形靠近時，所有的功率都包含在基波頻率中，諧波降到零。功率因數校正（PFC）的工作，以控制電流，以配合電壓的形狀和相位，最大限度地提高實際電源可從源有效地轉換負載到一個純粹的電阻之一。

　　在微觀層面上，功率因數校正為能量收集電路的設計者提供了直接的好處。用于從環境中獲取能量的功率調節電路通常會產生電流輸出中的諧波，從而導致功率損耗。在這種情況下，線性穩壓器的使用會導致在最佳操作包絡外工作時的效率降低，而開關穩壓器的使用可能會帶來額外的設計挑戰，以解決可能限制最佳功率輸出的穩定性問題。PFC電路是為應對這些挑戰而設計的。

　　As a result， power factor correction （PFC） plays a critical role in maximizing real power and maintaining its quality. The simplest way to control the harmonic current is to use a filter that passes current only at line frequency. This filter reduces the harmonic current， which means that the nonlinear device now looks like a linear load. At this point， the power factor can be brought to near unity using capacitors or inductors as required. This filter requires large-value， high-current inductors， which are bulky and can be expensive.

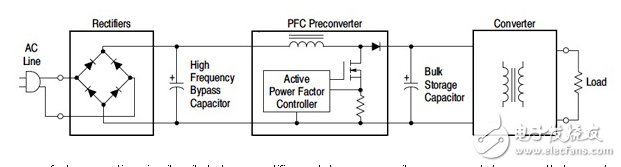

　　Unlike passive PFC methods， active methods achieve PFC with minimal component count and cost. Drawing on a wide selection of integrated devices， designers can easily implement PFC in energy-harvesting applications using ICs from manufacturers including Cirrus Logic，F(xiàn)reescale Semiconductor， Fremont Micro Devices， Linear Technology， ON Semiconductor， Renesas， STMicroelectronics， Texas Instruments， and Toshiba， among others.
