ITD3020: ?Low-IF tuner IC for dual-band DAB & FM

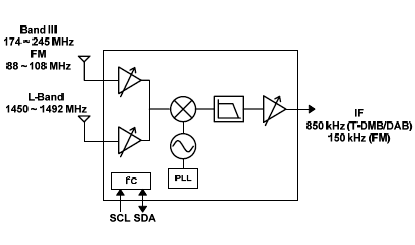

The ITD3020 is a highly integrated CMOS single chip low-IF single-conversion tuner IC for dual-band DAB (Digital audio broadcasting) and FM. It supports Eureka-147 DAB standard along with analog FM. It includes 2 LNAs, 2 RF PGAs, 2 image-rejection down-conversion mixers, a bandwidth adjustable low pass filter, an IF variable gain amplifier, a VCO and a fractional- N PLL, etc. On-chip low phase noise VCO along with high resolution fractional-N frequency synthesizer make in-band phase noise lower than that of any other conventional tuners.

The ITD3020 also includes several regulators, which make it possible to use single 2.85 V power supply. The ITD3020 exhibits ultra low power consumption such as 100 mW. Using small leadless 6 mm × 6 mm 40-Lead QFN package, the ITD3020 is the best solution for highly integrated multituner system and portable application where low power consumption is critical. It has an industry standard I²C serial bus interface. Primary application of the ITD3020 is dual-band DAB/FM mobile phones and the portable DAB/FM receiver.

Product Highlights

1. Single chip synthesized tuner for dual-band DAB and FM receiver
2. Low-IF single-conversion architecture which eliminates all SAW filters
3. Ultra low power consumption: 100mW
