MAX9934 高精度、低電壓電流檢測(cè)放大器，為多路架構(gòu)提供電流輸出和片選

概述

The MAX9934 high-precision, low-voltage, high-side current-sense amplifier is ideal for both bidirectional (charge/discharge) and unidirectional current measurements in battery-powered portable and laptop devices. Input offset voltage (V_OS) is a low 10μV (max) at +25°C across the -0.1V to 5.5V input common-mode voltage range, and is independent of V_CC. Its precision input specification allows the use of very small sense-voltages (typically ±10mV full-scale) for minimally invasive current sensing.

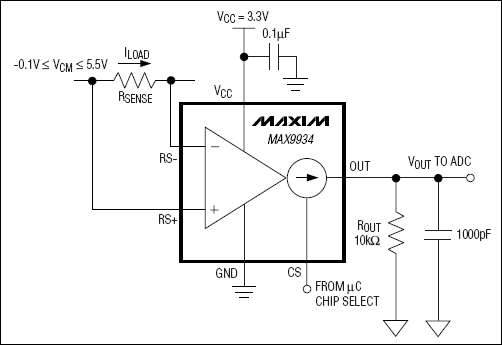

The output of the MAX9934 is a current proportional to input V_SENSE and is available in either 25μA/mV or 5μA/mV gain options (GM) with gain accuracy better than 0.25% (max) at +25°C. A chip select (CS) allows multiplexing of several MAX9934 current outputs to a single microcontroller ADC channel (see the Typical Operating Circuit). CS is compatible with 1.8V and 3.3V logic systems.

The MAX9934 is designed to operate from a 2.5V to 3.6V V_CC supply, and draws just 120μA (typ) quiescent current. When powered down (V_CC = 0V), RS+ and RS- draw less than 0.1nA (typ) leakage current to reduce battery load. The MAX9934 is robust and protected from input faults of up to ±6V input differential voltage between RS+ and RS-.

The MAX9934 is specified for operation over the -40°C to +125°C temperature range and is available in 8-pin μMAX?, 6-pin μDFN (2mm x 2mm x 0.8mm), or a 6-bump UCSP? (1mm x 1.5mm x 0.6mm), making it ideal for space sensitive applications.
