MAX4144, MAX4145, MAX4146,高速、低失真、差分線接收器

概述

The MAX4144/MAX4145/MAX4146 differential line receivers offer unparalleled high-speed, low-distortion performance. Using a three op-amp instrumentation amplifier architecture, these ICs have fully symmetrical differential inputs and a single-ended output. They operate from ±5V power supplies and are capable of driving a 150Ω load to ±3.7V. The MAX4144 has an internally set closed-loop gain of +2V/V. The MAX4145 is optimized for gains from +1V/V to +10V/V, while the MAX4146 is optimized for gains from +10V/V to +100V/V. The MAX4145/MAX4146 require a single external resistor to set the closed-loop gain.

These amplifiers use laser-trimmed, matched thin-film resistors to deliver a common-mode rejection (CMR) of up to 90dB at 10MHz. Using current-feedback techniques, the MAX4144 achieves a 130MHz bandwidth and a 1000V/μs slew rate. The MAX4145 achieves a bandwidth of 180MHz and a slew rate of 600V/μs while operating with a closed-loop gain of +1V/V, and the MAX4146 features a bandwidth of 70MHz and a slew rate of 800V/μs with a gain of +10V/V. Excellent differential gain/phase and noise specifications make these amplifiers ideal for a wide variety of video and RF signal-processing applications.

For a complete differential transmission link, use the MAX4144/MAX4145/MAX4146 with the MAX4147 differential line driver (see the MAX4147 data sheet for more information).

關鍵特性

MAX4144:

• +2V/V Internally Fixed Gain
• 130MHz Bandwidth
• 1000V/μs Slew Rate
• 70dB CMR at 10MHz
• -90dBc SFDR (f = 10kHz)
• Low Differential Gain/Phase: 0.03%/0.03°
• 800μA Shutdown

MAX4145:

• External Gain Selection from +1V/V to +10V/V
• 180MHz Bandwidth
• 90MHz 0.1dB Gain Flatness
• 600V/μs Slew Rate
• 75dB CMR at 10MHz
• -92dBc SFDR (f = 10kHz)
• Very Low Noise: 3.8nV per root-Hz (G = +10V/V)
• 800μA Shutdown

MAX4146:

• External Gain Selection from +10V/V to +100V/V
• 70MHz Bandwidth (AV = +10V/V)
• 800V/μs Slew Rate
• 90dB CMR at 10MHz
• -82dBc SFDR (f = 10kHz)
• Very Low Noise: 3.45nV per root-Hz (G = +100V/V)
• 800μA Shutdown

應用/使用

數據采集
差分至單端轉換
高速差分線接收器
高速儀表放大器
醫療儀表
雙絞線至同軸電纜轉換器

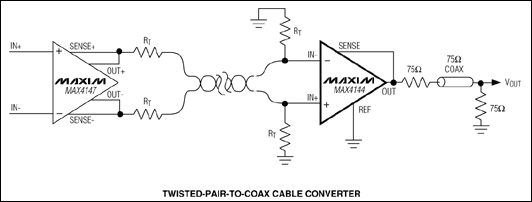

典型工作電路
