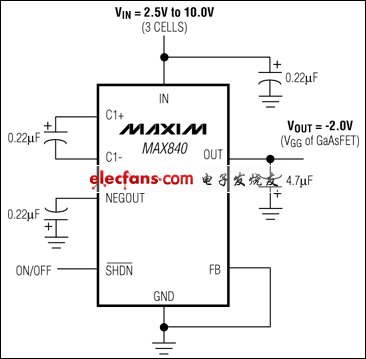

MAX840, MAX843, MAX844穩(wěn)壓型GaAsFET偏置電源應用電路

概述

The MAX840/MAX843/MAX844 low-noise, inverting charge-pump power supplies are ideal for biasing GaAsFETs in cellular telephone transmitter amplifiers. They operate with inputs down to 2.5V.

The MAX840 offers both a -2V preset output and a -0.5V to -9.4V adjustable output. The MAX843/MAX844 use an external positive control voltage to set the negative output voltage. Input voltage range for all the devices is 2.5V to 10V, and output current is 4mA with VIN > 2.7V. These circuits can operate with small capacitors, as low as 0.22μF.

An internal linear regulator reduces the MAX840's output voltage ripple to 1mVp-p. With a well-filtered control voltage (VCTRL), the MAX843/MAX844 also achieve less than 1mVp-p typical output ripple. Supply current is 750μA, and reduces to less than 1μA in shutdown (MAX840/MAX843). The MAX844's unregulated output is active in shutdown, with the charge pump switching at 20kHz. It provides a low-power LCD supply.

關鍵特性

Fixed -2V or Adjustable -0.5V to -9.4V Output at 4mA (MAX840)
2.5V to 10V Input Voltage Range
Operate with Small Capacitors (as low as 0.22μF)
1mVp-p Output Voltage Ripple
Charge-Pump Switching Frequency:
100kHz in Normal Operation
20kHz in Shutdown Mode (MAX844)
1μA Max Logic-Level Shutdown Over Temp. (MAX840/MAX843)
Small 8-Pin SO Package

應用/使用
蜂窩電話
連續(xù)可調的GaAsFET偏置
GaAsFET功率放大器模塊
LCD偏置對比度控制
個人通信裝置、PDA
穩(wěn)定的負電源

無線數據記錄儀

?
