ADSP－SC57xSHARC雙核處理器解決方案（特性,框圖,電路圖）

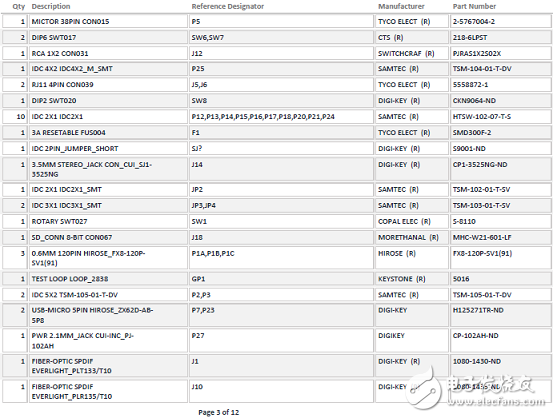

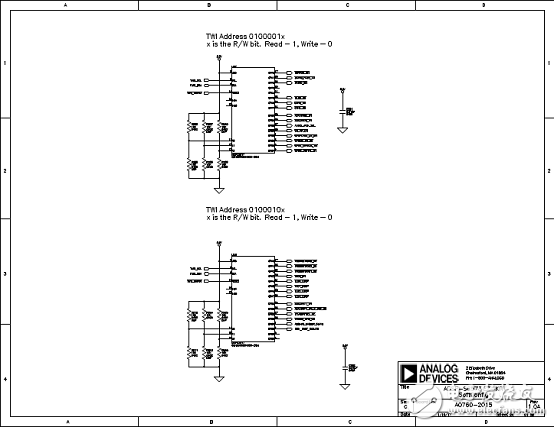

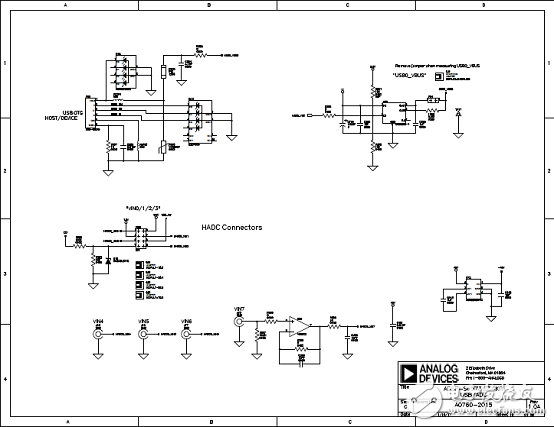

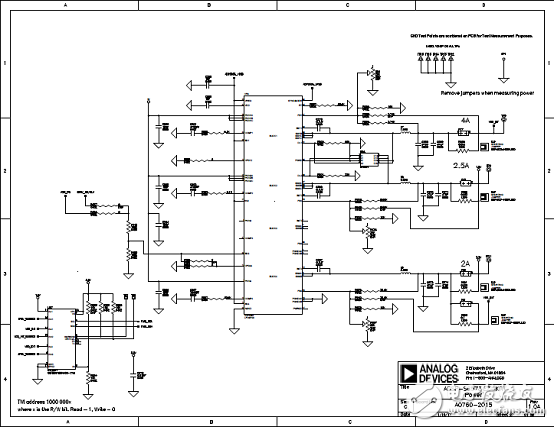

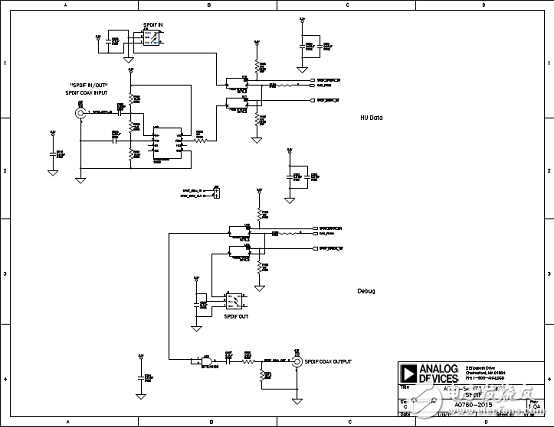

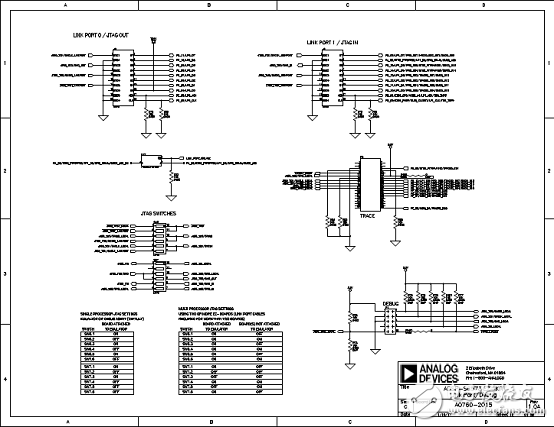

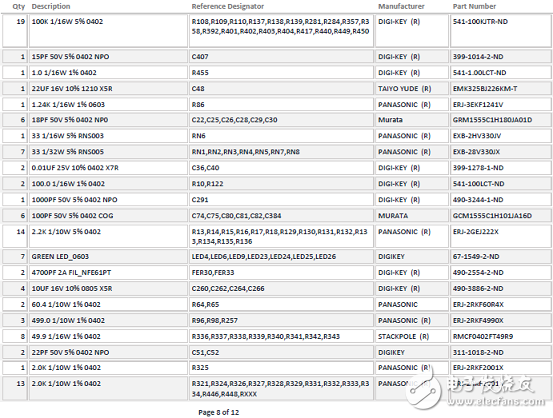

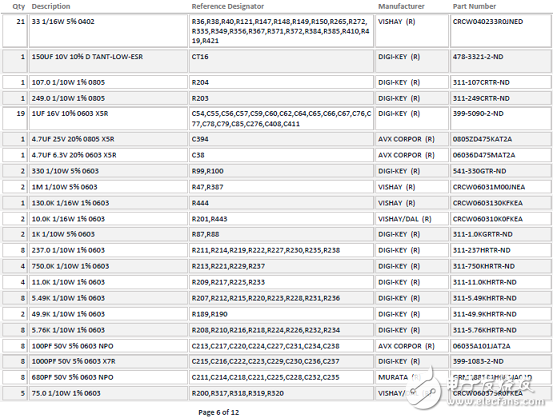

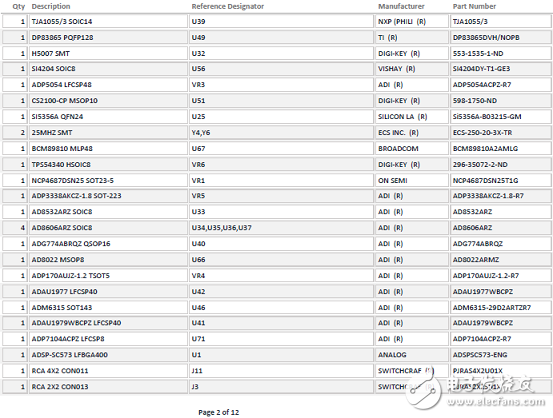

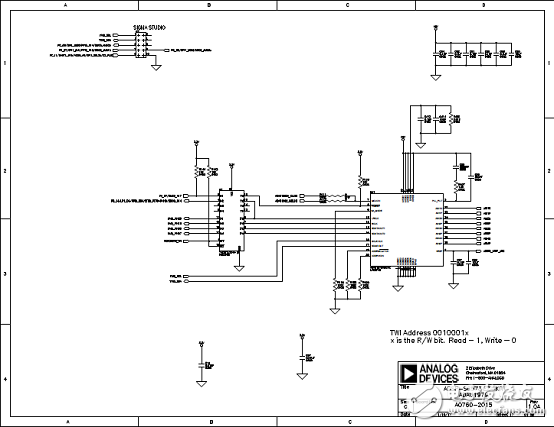

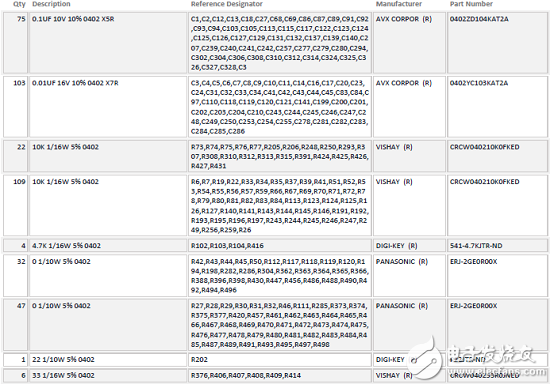

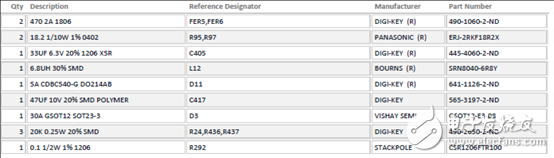

ADI公司的ADSP-SC57x/2157x系列處理器集成了兩個增強型SHARC+?內核和先進的DSP加速器(FIR,IIR),功耗低于2W,功效比以前的SHARC產品高5倍以上,專為需要DSP協處理器并包括兩個SHARC+內核和一個匹配DSP內核的外設集的應用而設計,主要用在汽車,消費電子和專業音頻,多軸電機控制和能源分配系統.本文介紹了ADSP-SC57x/ADSP-2157x系統特性,處理器框圖,ARM Cortex-A5處理器器框圖,SHARC處理器框圖,SHARC+SIMD處理器核框圖以及評估板ADSP-SC573 EZ-KIT主要特性,框圖,電路圖和材料清單.

The ADSP-SC57x/ADSP-2157x processors are members of theSHARC? family of products. The ADSP-SC57x processor isbased on the SHARC+? dual-core and the ARM? Cortex?-A5core. The ADSP-SC57x/ADSP-2157x SHARC processors aremembers of the single-instruction, multiple data (SIMD)SHARC family of digital signal processors (DSPs) that featureAnalog Devices Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performanceaudio/floating-point applications with large on-chipstatic random-access memory (SRAM), multiple internal busesthat eliminate input/output (I/O) bottlenecks, and innovativedigital audio interfaces (DAI). New additions to the SHARC+core include cache enhancements and branch prediction, whilemaintaining instruction set compatibility to previous SHARC products.

By integrating a set of industry leading system peripherals andmemory, the ARM Cortex-A5 and SHARC processor is the platform of choice for applicationsthat require programmability similar to reducedinstruction set computing (RISC), multimedia support, andleading edge signal processing in one integrated package. Theseapplications span a wide array of markets, including automotive,professional audio, and industrial-based applications thatrequire high floating-point performance.

ADSP-SC57x/ADSP-2157x系統特性:

Dual-enhanced SHARC+ high performance floating-pointcores
Up to 450 MHz per SHARC+ core
Up to 3 Mb (384 kB) L1 SRAM memory per core with parity(optional ability to configure as cache)
32-bit, 40-bit, and 64-bit floating-point support32-bit fixed point
Byte, short word, word, long word addressed
ARM Cortex-A5 core
450 MHz/720 DMIPS with NEON/VFPv4-D16/Jazelle
32 kB L1 instruction cache with parity/32 kB L1 data cachewith parity
256 kB L2 cache with parity
Powerful DMA system
On-chip memory protection

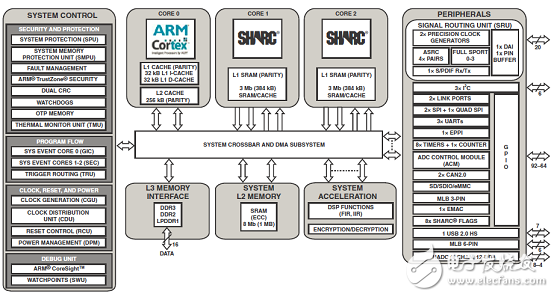

圖1.ADSP-SC57x/ADSP-2157x處理器框圖

ADSP－SC57xSHARC雙核處理器解決方案（特性,框圖,電路圖）

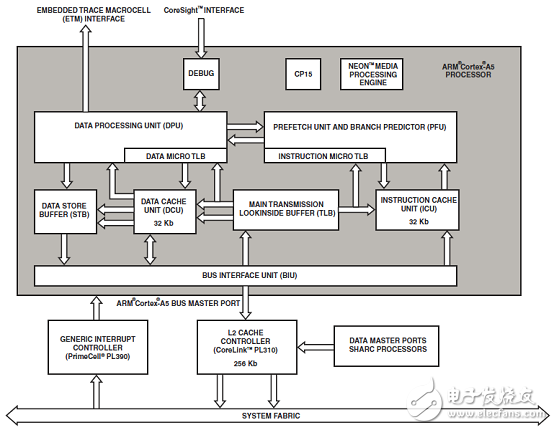

圖2.ADSP-SC57x/ADSP-2157xARM Cortex-A5處理器器框圖

ADSP－SC57xSHARC雙核處理器解決方案（特性,框圖,電路圖）

圖3.SHARC處理器框圖

ADSP－SC57xSHARC雙核處理器解決方案（特性,框圖,電路圖）

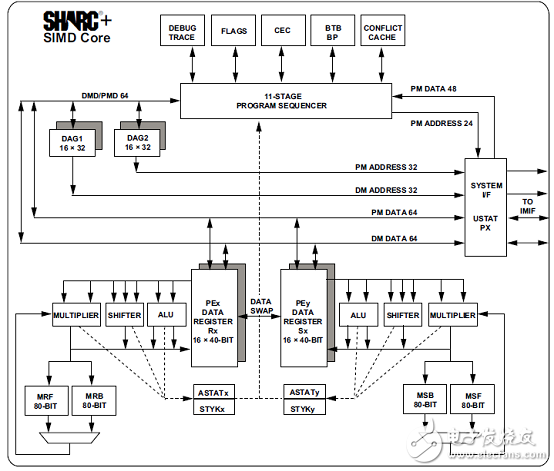

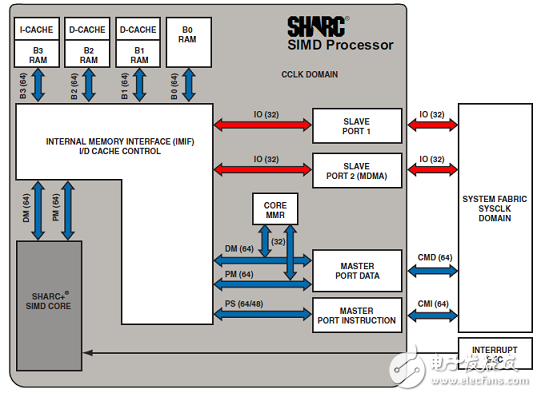

圖4.SHARC+SIMD處理器核框圖

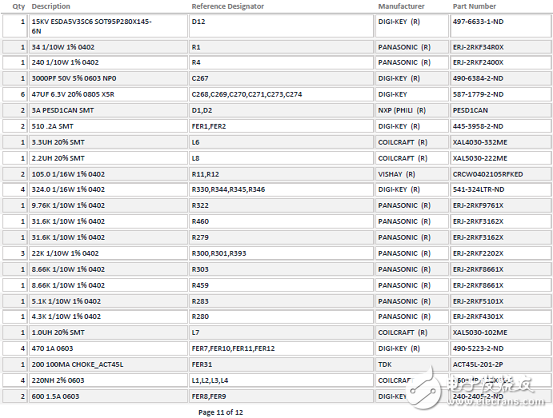

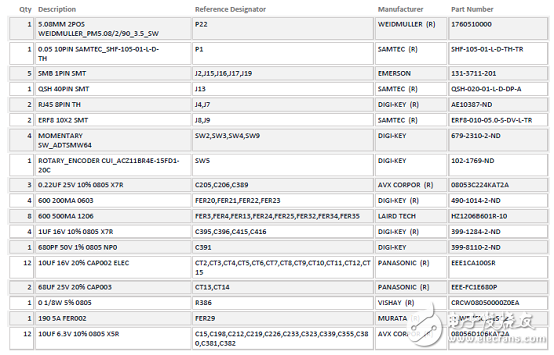

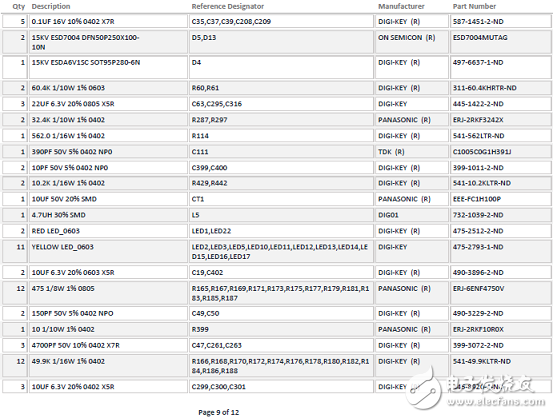

評估板ADSP-SC573 EZ-KIT

Thank you for purchasing the Analog Devices, Inc. ADSP-SC573 EZ-KITevaluation system.

The ADSP-SC573 processor is a members of the SHARC? family of products. The ADSP-SC573 processor isbased on the SHARC+ dual-core and the ARM? Cortex-A5TM core. The ADSP-SC573SHARC processor is amembers of the SIMD SHARC family of DSPs that feature Analog Devices Super Harvard Architecture. These 32-bit/40- bit/64-bit floating-point processors are optimized for high performance audio/floating-point applicationswith their large onchip SRAM, multiple internal buses to eliminate I/O bottlenecks, and innovative digital audiointerfaces (DAI). New enhancements to the SHARC+ core add cache enhancements, branch prediction, and otherinstruction set improvements—all while maintaining instruction set compatibility to previous SHARC products.

The EZ-KIT ships with all of the necessary hardware to get you up and running and start the evaluation immediately.

The EZ-KIT contains an expansion interface 3 (EI3). This interface provides for connecting with daughter boardsto expand on the functionality of the EZ-KIT.

The evaluation board is designed to be used in conjunction with the CrossCore Embedded Studio? developmentenvironment for advanced application code development and debug such as:

? Create, compile, assemble, and link application programs written in C++, C, and assembly
? Load, run, step, halt, and set breakpoints in application programs
? Read and write data and program memory
? Read and write core and peripheral registers

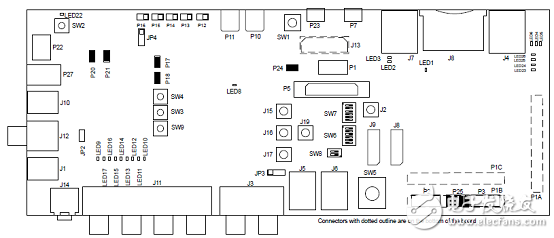

圖4.評估板ADSP-SC573 EZ-KIT外形圖

評估板ADSP-SC573 EZ-KIT主要特性:

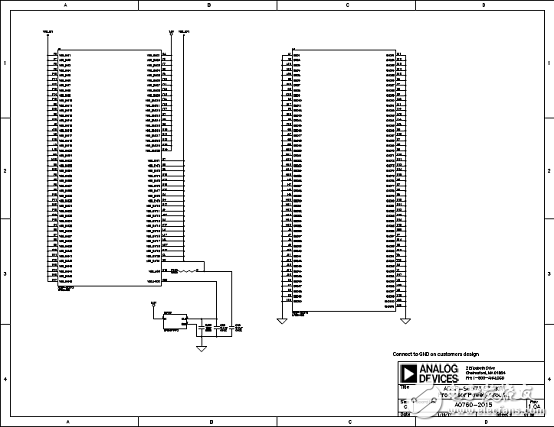

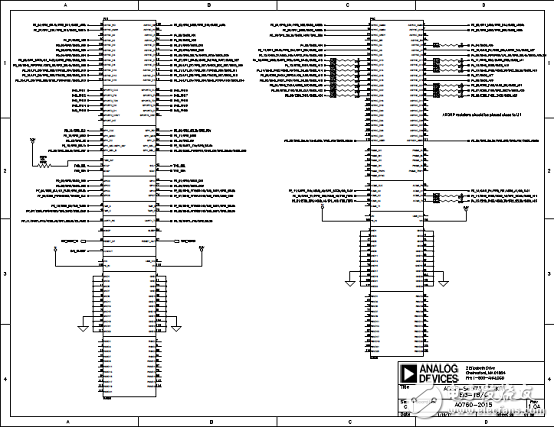

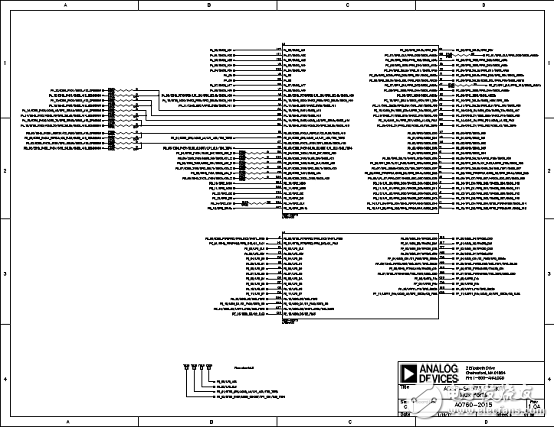

? Analog Devices ADSP-SC573 processor
? 400 ball BGA

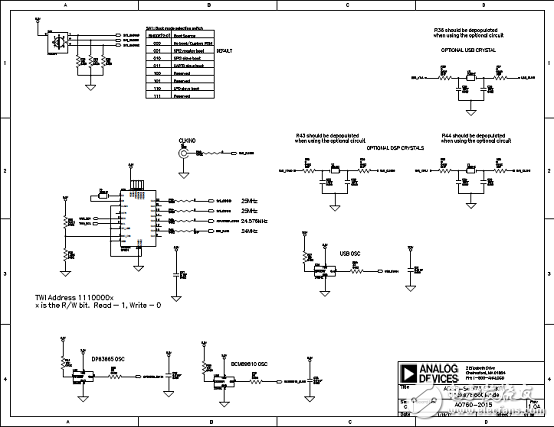

? 25 MHz oscillator

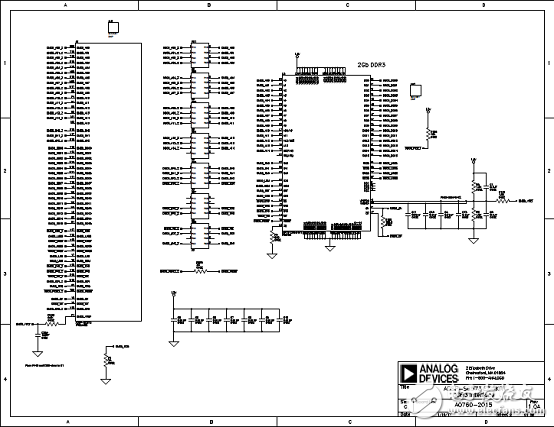

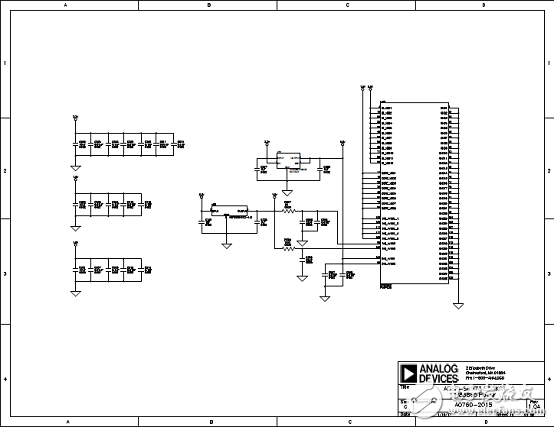

? DDR3 Memory
? 128Mx16 bit (2Gbit )
? Micron MT41J128M16JT-125
? 1.5V

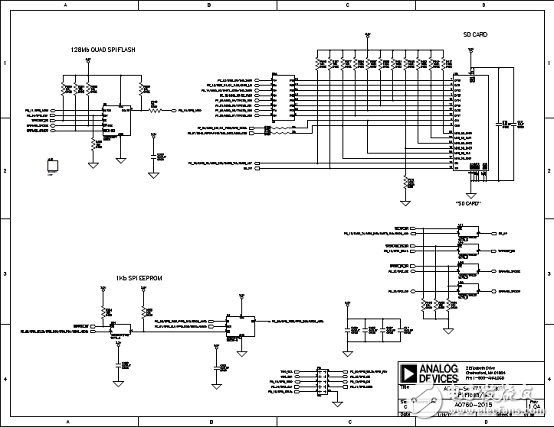

? SPI Flash (SPI2) Memory
? 128Mbit
? Windbond32M-bit Serial Flash Memory with Dual and Quad SPI (W25Q32)
? Single/Dual/Quad SPI
? SPI EEPROM
? Microchip 4K I2C Serial EEPROM (24AA04)

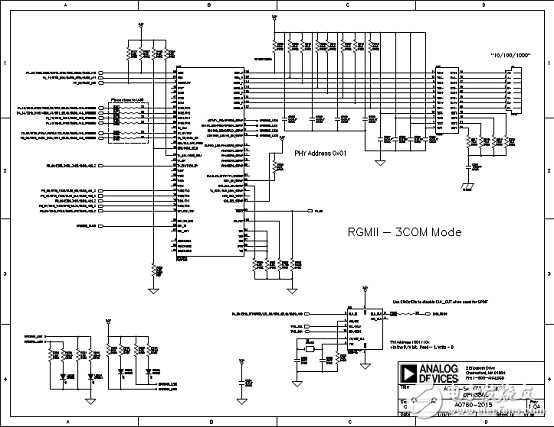

? Ethernet

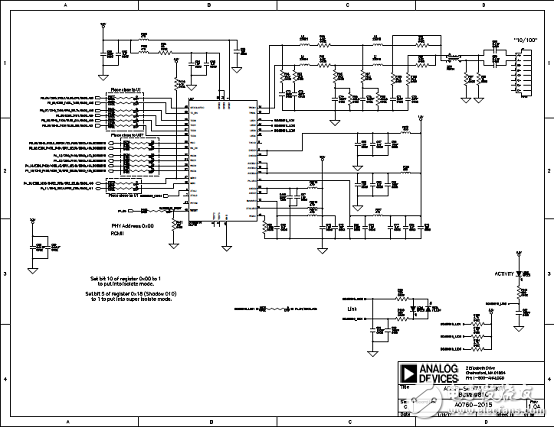

? Texas Instruments 10/100/1000 Ethernet Physical Layer (DP83865)
? Broadcom BroadR-Reach? Single Port Automotive Ethernet Transceiver (BCM89810)
? Cirrus Logic Fractional-N Clock Multiplier (CS2100)
? Two RJ45 connectors

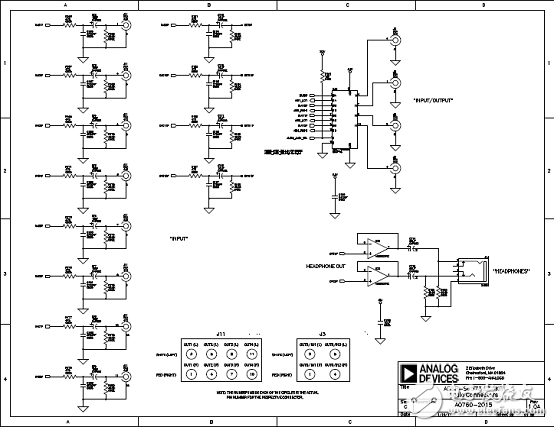

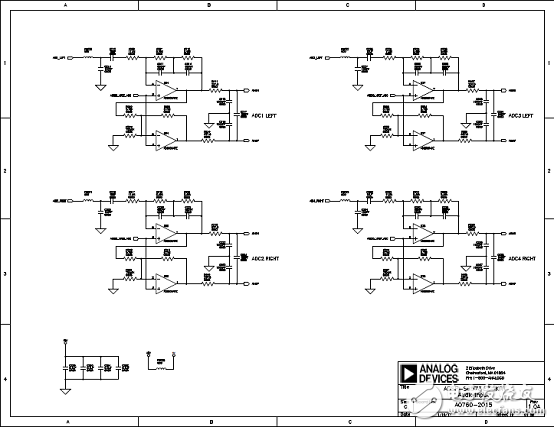

? Audio

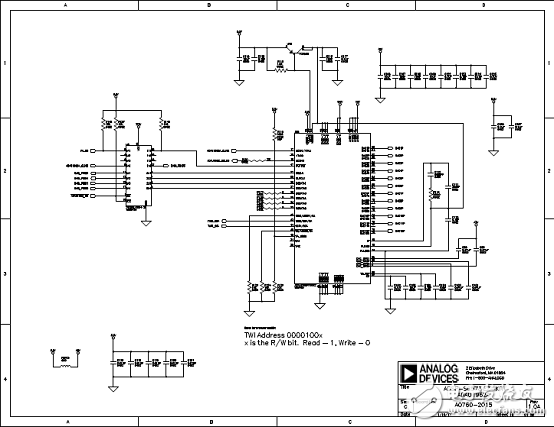

? Analog Devices 12 Channel, High Performance, 192kHz, 24-Bit DAC (ADAU1962A)

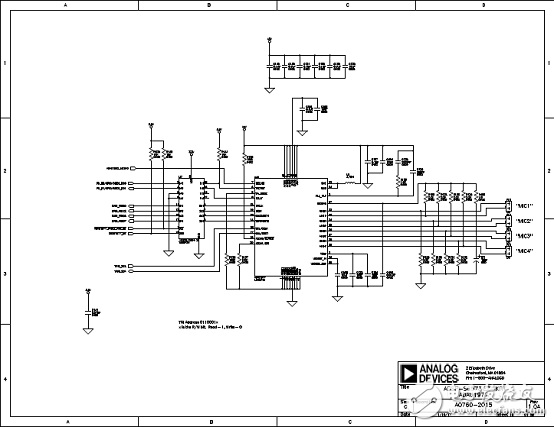

? Analog Devices Quad ADC with Diagnostics (ADAU1977)
? Analog Devices Quad Analog-to-Digital Converter (ADAU1979)
? 12 RCA connectors. 12 outputs or 8 outputs/4 inputs
? Universal Asynchronous Receiver/Transmitter (UART3)

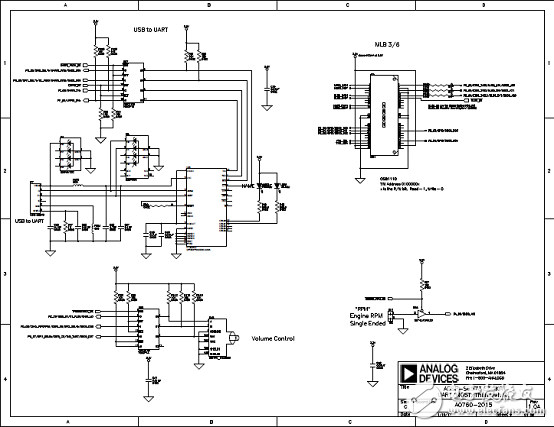

? FTDI USB to UART (FT232R)
? USB micro-B

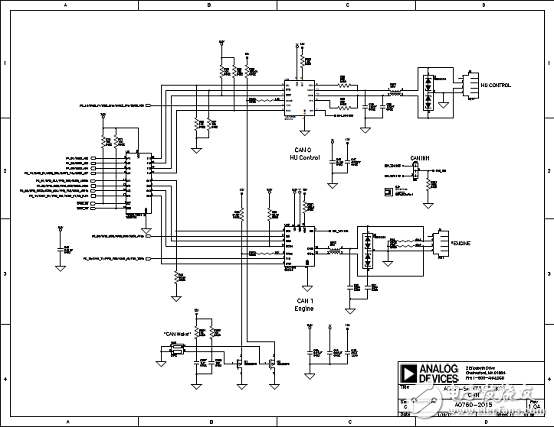

? CAN
? NXP Enhanced fault-tolerant CAN transceiver (TJA1055)
? NXP High-speed CAN transceiver for partial networking (TJA1145)
? Two RJ11connectors
? A2B
? Analog Devices Automotive Audio Bus A2B Transceiver (AD2410)
? Two DuraClik connectors
? Debug Interface (JTAG and Trace)
? ICE-1000 emulator
? JTAG 10-pin 0.05” header
? JTAG and Trace 38-pin Mictor connector

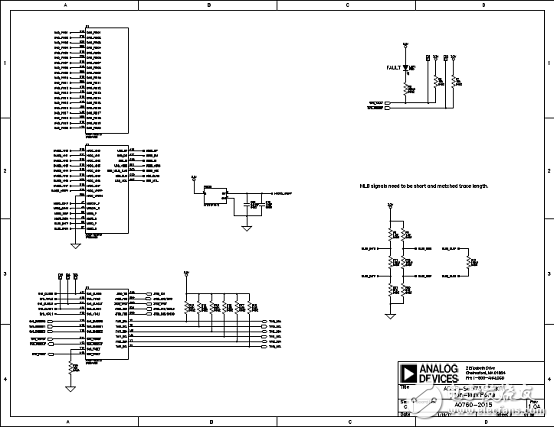

? LEDs
? Eleven LEDs: one power (green), one board reset (red), eight general-purpose (amber) and one fault (red)

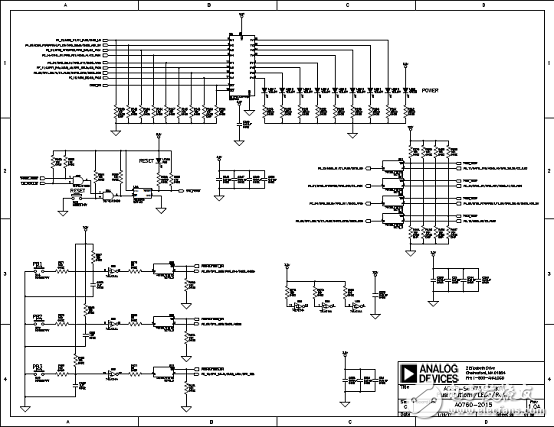

? Pushbuttons
? Four pushbuttons: one reset and three IRQ/Flag
? EI3 connector
? SMC
? EPPI
? SPORT
? SPI
? UART
? TWI
? TMR
? GPIO
? RESET
? GND/3.3V/5V output

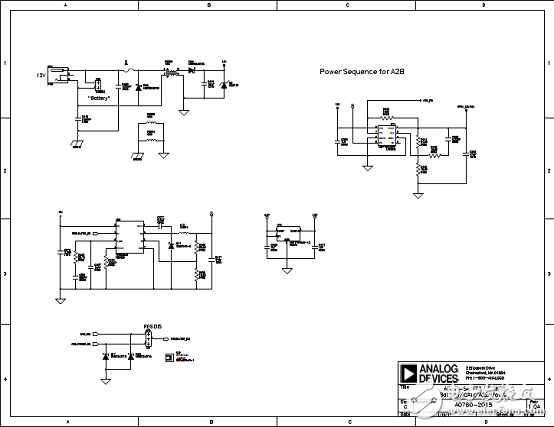

? External power supply
? CE compliant
? 12V @1.5 Amps
? Power measurement
? 0.051-ohm resistors for measuring current draw
Your ADSP-SC573 EZ-KIT package contains the following items.
? ADSP-SC573 EZ-KIT board
? Universal 12V DC power supply
? USB 2.0 type A to micro-B cable
? USB A receptacle to micro A plug
? Ethernet Cable
? SD Memory Card
? ICE-1000 emulator
