ST公司的BlueNRG-1是非常低功耗的藍牙低功耗(BLE)單模式系統級芯片(SoC),包括有160KB可編程閃存,24KB靜態RAM存儲器,以及SPI,UART,I2C標準通信接口,多功能定時器,看門狗,RTC和DMA控制器等.工作電壓1.7-3.6 V,主要用在汽車產出率,手表,健康和健身設備,消費類醫療產出,遙控,家庭和工業自動化,手機外設,照明和PC外設等.本文介紹了BlueNRG-1主要特性,架構框圖,RF軟件框圖,評估平臺STEVAL-IDB007V1主要特性,電路圖和材料清單.
The BlueNRG-1 is a very low power Bluetooth low energy （BLE） single-mode system-on-chip， compliant with Bluetooth specification.
The BlueNRG-1 extends the features of award-winning BlueNRG network processor， enabling the usage of the embedded Cortex M0 for running the user application code.
The BlueNRG-1 includes 160 KB of programming Flash memory， 24 KB of static RAM memory with retention （two 12 KB banks） and SPI， UART， I2C standard communication interface peripherals. It also features multifunction timers， watchdog， RTC and DMA controller.
An ADC is available for interfacing with analog sensors， and for reading the measurement of the integrated battery monitor. A digital filter is available for processing a PDM stream.
The BlueNRG-1 offers the same excellent RF performance of the BlueNRG radio， and the integrated high efficiency DC/DC converter keeps the same ultra-low power characteristics， but the BlueNRG-1 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.
BlueNRG-1主要特性：
? Bluetooth specification compliant master， slave and multiple roles simultaneously， single-mode Bluetooth low energy system-on-chip
? Operating supply voltage： from 1.7 to 3.6 V
? Integrated linear regulator and DC-DC step-down converter
? Operating temperature range： -40 °C to 105 °C
? High performance， ultra-low power Cortex-M0 32-bit based architecture core
? Programmable 160 KB Flash
? 24 KB RAM with retention （two 12 KB banks）
? 1 x UART interface
? 1 x SPI interface
? 2 x I2C interface
? 14 or 15 GPIO
? 2 x multifunction timer
? 10-bit ADC
? Watchdog & RTC
? DMA controller
? PDM stream processor
? 16 or 32 MHz crystal oscillator
? 32 kHz crystal oscillator
? 32 kHz ring oscillator
? Battery voltage monitor and temperature sensor
? Up to +8 dBm available output power （at antenna connector）
? Excellent RF link budget （up to 96 dB）
? Accurate RSSI to allow power control
? 8.2 mA maximum TX current （@ 0 dBm， 3.0 V）
? Down to 1 μA current consumption with active BLE stack （sleep mode）
? Compliant with the following radio frequency regulations： ETSI EN 300 328，EN 300 440， FCC CFR47 Part 15， ARIB STD-T66
? Pre-programmed bootloader via UART
? QFN32， WCSP34 package option
? Dedicated wettable flank QFN package for automotive grade qualification
BlueNRG-1應用：
? Automotive product
? Watches
? Fitness， wellness and sports
? Consumer medical
? Security/proximity
? Remote control
? Home and industrial automation
? Assisted living
? Mobile phone peripherals
? Lighting
? PC peripherals

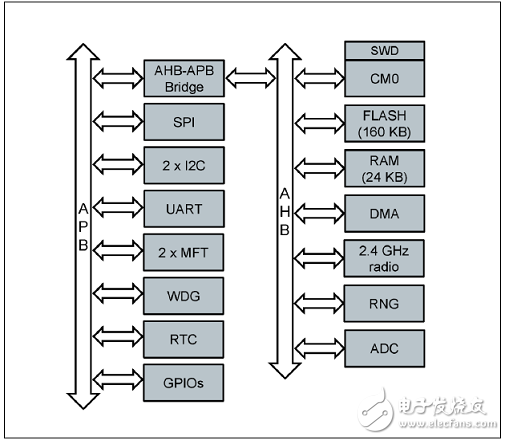

圖1.BlueNRG-1架構框圖
The BlueNRG-1 is complemented with a Bluetooth low energy stack C library that provides：
? Master， slave role support
? GAP： central， peripheral， observer or broadcaster roles
? ATT/GATT： client and server
? SM： privacy， authentication and authorization.
? L2CAP
? Link Layer： AES-128 encryption and decryption
The BlueNRG-1 can be configured for supporting Single Chip or Network processor applications.
In the first configuration， the BlueNRG-1 operates as single device in the application for managing both the application code and the Bluetooth low energy stack. The whole Bluetooth low energy stack is provided as object code in a single library file whereas the GATT low energy profiles are provided as object codes in separate libraries.

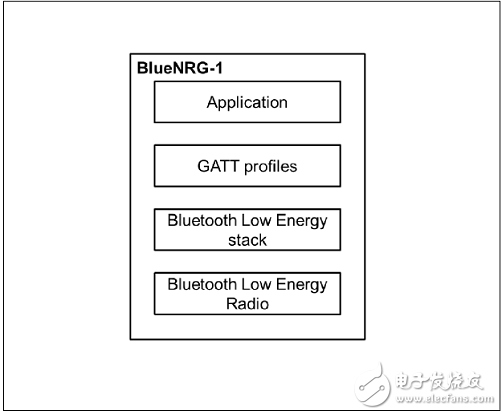

圖2.BlueNRG-1單片RF軟件層框圖
The BlueNRG-1 can be configured for operating as a network coprocessor. In this case a dedicated firmware is provided for supporting the interface with an external application processor. The whole Bluetooth Low energy stack runs in the BlueNRG-1; the GATT profiles are provided for running in the application processor together with the application code.
?

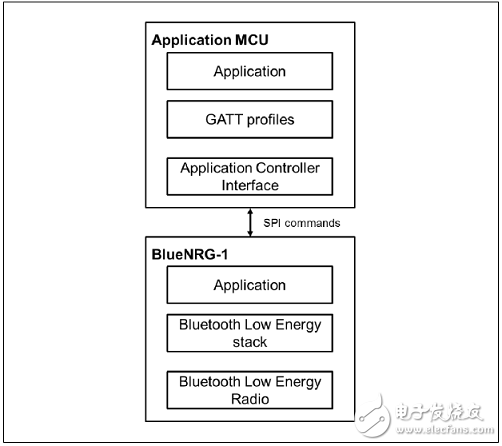

圖3.BlueNRG-1網絡處理器RF軟件層框圖
The BlueNRG-1 integrates the blocks listed below：
? Cortex M0 core
? Interrupts management
? 160 KB Flash memory
? 24 KB of RAM with two retention options （12 KB or 24 KB）
? Power management
? Clocks
? Bluetooth low energy radio
? Random number generator （RNG） （it is reserved to Bluetooth low energy protocol stack， but user application can read it）
? Public Key Cryptography （PKA） （reserved to Bluetooth low energy protocol stack）
? Peripherals：
? SPI interface
? UART interface
? I2C bus interface
? GPIO
? Multifunction timer
? DMA controller
? Watchdog
? RTC
? ADC with battery indicator
? PDM stream processor
BlueNRG-1評估平臺STEVAL-IDB007V1
The STEVAL-IDB007V1 is an evaluation platform based on the BlueNRG-1， low power Bluetooth? smart system on chip， compliant with the Bluetooth? v4.1 specification and supporting master， slave and simultaneous master-and-slave roles.
The STEVAL-IDB007V1 also provides a set of hardware resources for implementing a wide range of application scenarios： sensor data （accelerometer， pressure and temperature sensor）， remote control （buttons and LEDs） and manage debug messages though USB virtual COM.
Three power options are available （USB only， battery only， external power supply + USB） for high application development and testing flexibility.
圖4.評估平臺STEVAL-IDB007V1外形圖
評估平臺STEVAL-IDB007V1主要特性：
? Bluetooth? SMART board based on the BlueNRG-1 Bluetooth low energy system on chip
? Associated BlueNRG-1 development kit SW package including firmware and documentation
? Up to +8 dBm available output power （at antenna connector）
? Excellent receiver sensitivity （-88 dBm）
? Very low power consumption： 7.7 mA RX and 8.2 mA TX at +0 dBm
? Bluetooth? low energy v4.1 compliant， supports master， slave and simultaneous master-and-slave roles
? Integrated balun which integrates a matching network and harmonics filter
? SMA connector for antenna or measuring equipment
? 3 user LEDs
? 2 user buttons
? 3D digital accelerometer and 3D digital gyroscope
? MEMS pressure sensor with embedded temperature sensor
? Battery holder
? JTAG debug connector
? USB to serial bridge for providing I/O channel with the BlueNRG-1 device
? Jumper for measuring current for BlueNRG-1 only
? RoHS compliant
評估平臺STEVAL-IDB007V1包括：
? 1 BlueNRG-1 development platform
? 1 2.4 GHz Bluetooth antenna
? 1 USB cable

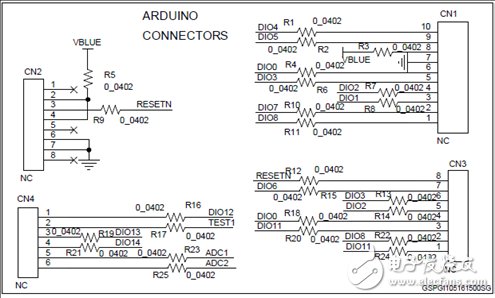

圖5.評估平臺STEVAL-IDB007V1電路圖:Arduino連接器

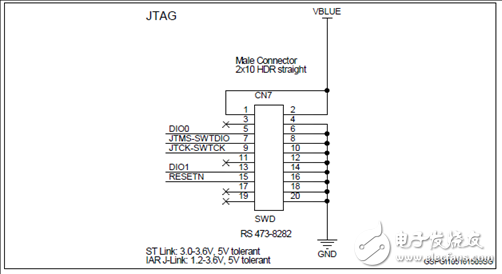

圖6.評估平臺STEVAL-IDB007V1電路圖:JTAG

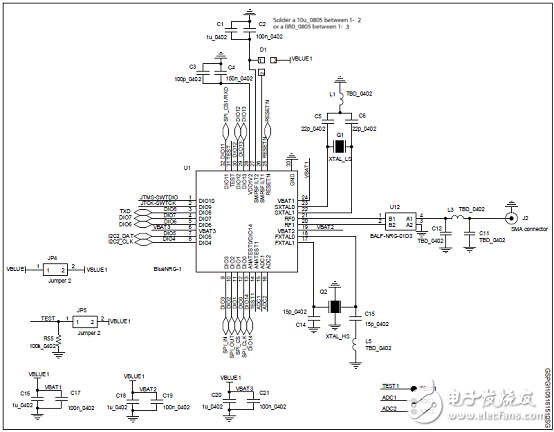

圖7.評估平臺STEVAL-IDB007V1電路圖:BlueNRG-1

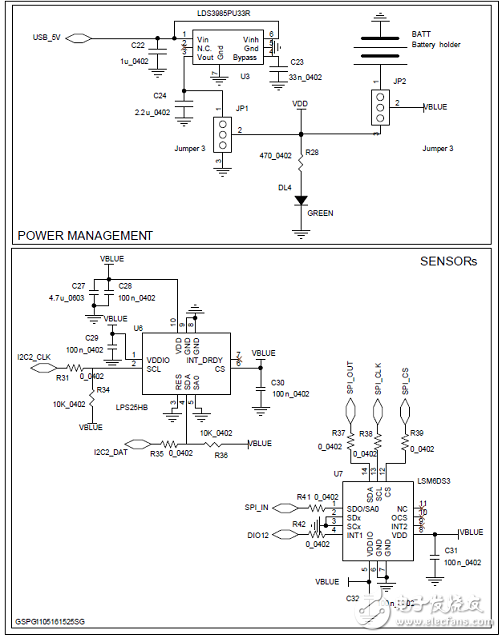

圖8.評估平臺STEVAL-IDB007V1電路圖:電源管理,傳感器

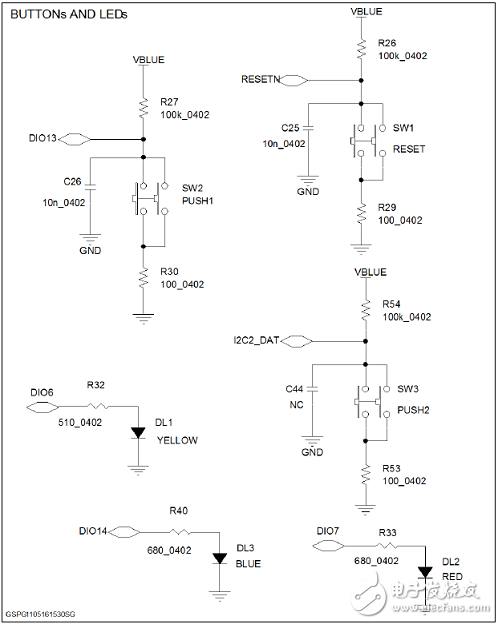

圖9.評估平臺STEVAL-IDB007V1電路圖:按鈕和LED

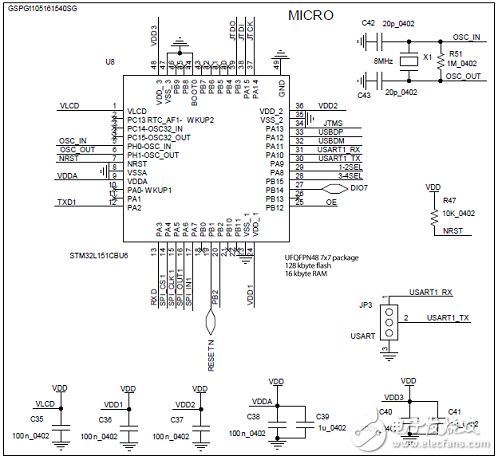

圖10.評估平臺STEVAL-IDB007V1電路圖:micro

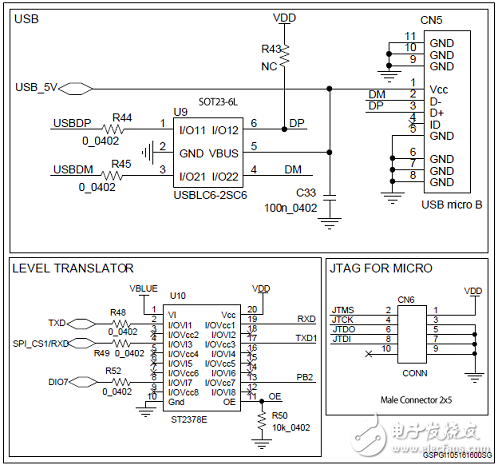

圖11.評估平臺STEVAL-IDB007V1電路圖:USB,電平轉換,JTAG

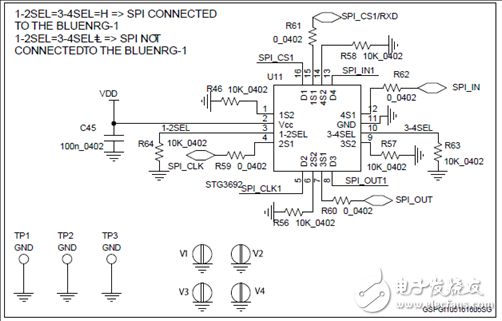

圖12.評估平臺STEVAL-IDB007V1電路圖:EEPROM

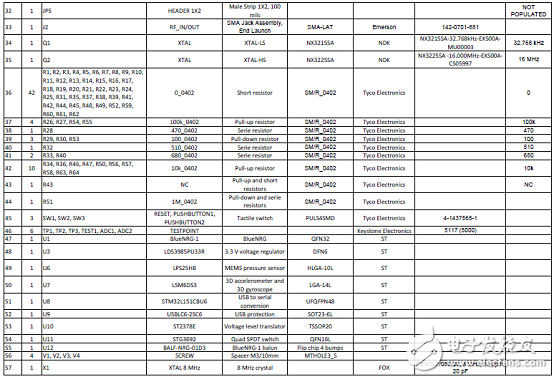

評估平臺STEVAL-IDB007V1材料清單:
