TI公司的TCAN1051HGV-Q1是滿足ISO11898-2 （2016）高速CAN物理層標準的收發器，滿足汽車應用AEC Q100，數據速率高達5Mbps，I/O電壓范圍支持3.5V和5V MCU，HBM ESD 保護電壓±16 kV， IEC ESD保護電壓高達 ±15 kV，主要用在所有的CAN網絡，重型機械ISO11783應用，和汽車與交通。本文介紹了TCAN1051HGV-Q1主要特性，框圖以及TCAN10xx系列CAN評估模塊主要特性和電路圖。

　　This CAN transceiver family meets the ISO11898-2 （2016） High Speed CAN （Controller Area Network） physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps （megabits per second）。 Devices with part numbers that include the “G” suffix are designed for data rates up to 5 Mbps， and versions with the “V” have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally， all devices include many protection features to enhance device and network robustness.

　　TCAN1051HGV-Q1主要特性：

　　AECQ100： Qualified for Automotive Applications

　　Meets the Requirements of ISO11898-2 （2016）

　　‘Turbo’ CAN：

　　All devices support 2 Mbps CAN FD （Flexible Data Rate） and “G” options support 5 Mbps

　　Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin

　　Higher Data Rates in Loaded CAN Networks

　　I/O Voltage Range Supports 3.3 V and 5 V MCUs

　　Ideal Passive Behavior When Unpowered

　　Bus and Logic Terminals are High Impedance （no load）

　　Power Up/Down With Glitch Free Operation On Bus and RXD Output

　　Protection Features

　　HBM ESD Protection： ±16 kV

　　IEC ESD Protection up to ±15 kV

　　Bus Fault Protection： ±58 V （non-H variants） and ±70 V （H variants）

　　Undervoltage Protection on VCC and VIO （V variants only） Supply Terminals

　　Driver Dominant Time Out （TXD DTO） - Data rates down to 10 kbps

　　Thermal Shutdown Protection （TSD）

　　Receiver Common Mode Input Voltage： ±30 V

　　Typical Loop Delay： 110 ns

　　Junction Temperatures from –55℃ to 150℃

　　TCAN1051HGV-Q1應用：

　　All devices support highly loaded CAN networks

　　Heavy Machinery ISO11783 Applications

　　Automotive and Transportation

圖1.TCAN1051HGV-Q1框圖

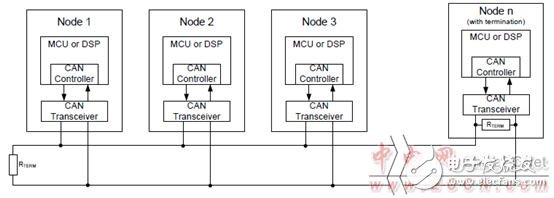

圖2.TCAN1051HGV-Q1典型CAN總線應用框圖

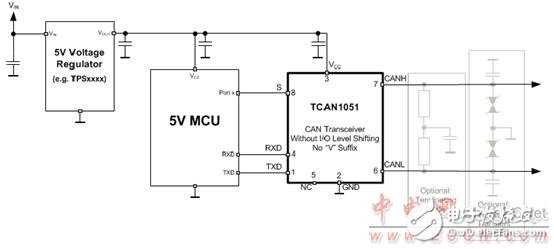

圖3.TCAN1051HGV-Q1采用5V CAN控制器的典型CAN總線應用框圖

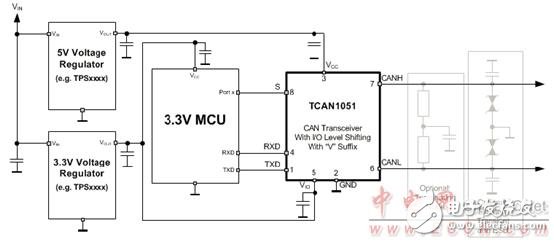

　　圖4.TCAN1051HGV-Q1采用3.3V CAN控制器的典型CAN總線應用框圖

　　TCAN10xx系列CAN評估模塊

　　This user guide details the TCAN10xx CAN （Controller Area Network） EVM transceiver operation. TheTCAN10xx CAN EVM is configurable for use with all TI CAN transceiver families： TCAN10xx， TCAN33x，SN65HVD23x， SN65HVD25x， SN65HVD10x0， and SN65HVDA54x by replacing the transceiver andsetting jumpers on the EVM as outlined in this document. This user guide explains the EVM configurationsfor basic CAN evaluation， various load and termination settings.

　　The EVM comes with the TCAN1042D CAN transceiver factory installed. The CAN EVM may be reconfigured by a user for use with all TI CAN transceiver families： TCAN33x， SN65HVD23x， SN65HVD25x， SN65HVD10x0 and SN65HVDA54x by replacing the transceiver and setting jumpers on the EVM. The EVM has configurations for basic CAN evaluation， various load and termination settings necessary to evaluate CAN transceiver performance.

　　TCAN10xx系列CAN評估模塊主要特性：

　　Meets the requirements of ISO11898-2

　　I/O Voltage Range Support 3.3V and 5V MCUs

　　Ideal passive behavior when unpowered

　　Bus pins are high impedance （no load to operating bus）

　　Logic pins are high impedance

　　Power up/down with glitch free operation on bus

　　Protection Features

　　ESD protection of bus pins

　　HBM ESD ±25kV

　　IEC ESD ±12kV

　　Bus Fault Protection ±14V

　　Under voltage protection on supply pins

　　TXD （Driver） dominant time out （DTO）

　　RXD （Receiver） dominant time out （DTO）

　　Thermal shutdown protection

Characterized for -40℃ to 125℃ operation

圖5.TCAN10xx系列CAN評估模塊外形圖

圖6.TCAN10xx系列CAN評估模塊電路圖
