基于A2F200設計的智能混合信號FPGA開發技術

SmartFusion 器件是基于愛特的快閃技術而開發，為需要真正的單芯片系統的硬件和嵌入式系統設計師提供比傳統專屬功能微控制器更大的靈活性，而成本又比現有使用軟核處理器的FPGA低得多。SmartFusion 是行業唯一集成 FPGA、ARM? Cortex?-M3處理器硬核，以及可編程模擬資源于一體的器件，能夠?qū)崿F(xiàn)完全可定制系統設計和IP保護能力，而且易于使用。

主要優點:

完全可定制系統設計能力

讓設計人員能夠使用真正所需的功能特性去開發產品

實現創新性和差異性，提高競爭力

利用片上FPGA 實現最后一分鐘的功能修改

利用應用可編程(in-application programming) 進行現場升級，使設計符合最新要求

可為FGPA架構內的個別算法試驗硬件加速

知識產權(IP)保護能力

完整的單芯片（SoC）方案提供內在快閃FPGA IP 保護能力

微控制器和 FPGA 接口沒有暴露在外

啟動時無須加載位流(bit-stream)，免除安全風險

安全系統內編程(ISP) 帶有通過JTAG提供的 128位先進加密標準

FlashLock? 防止反向讀取FPGA 內容

利用客戶可編程器件密鑰避免器件過建 (overbuilding)

易用性提高生產率

只須采用一個平臺，即可構建整個產品系列

同時為FPGA 和嵌入式設計人員而設的集成設計環境

利用簡單的GUI工具，即可對復雜的可編程模擬資源進行配置

提供來自Keil?、IAR Systems? 和 GNU 業界領先的編譯和調試工具

Micrium 提供實時操作系統 (RTOS) 和中間件支持SmartFusion

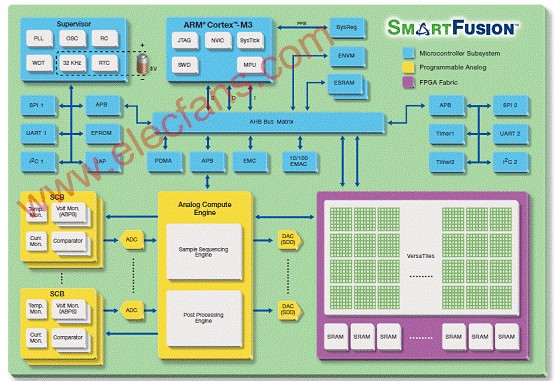

圖1。SmartFusion 方框圖

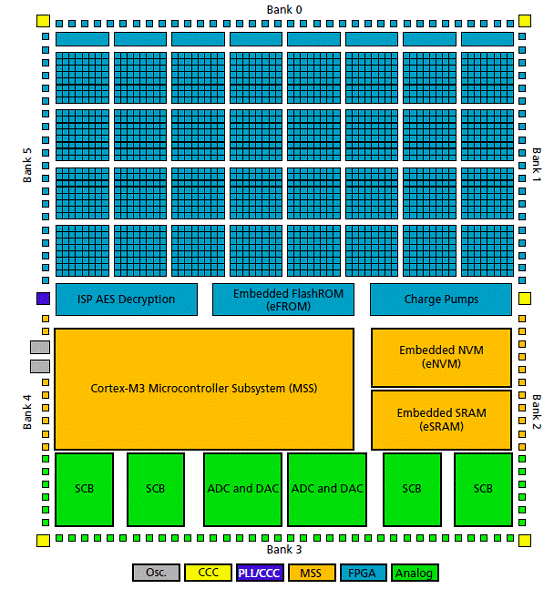

圖2。SmartFusion 系統架構圖

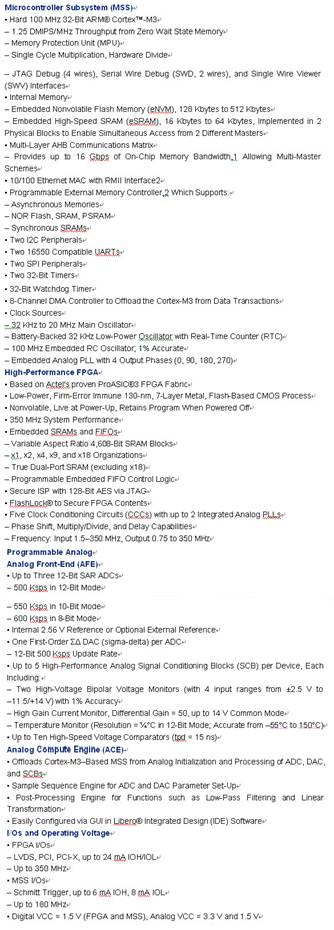

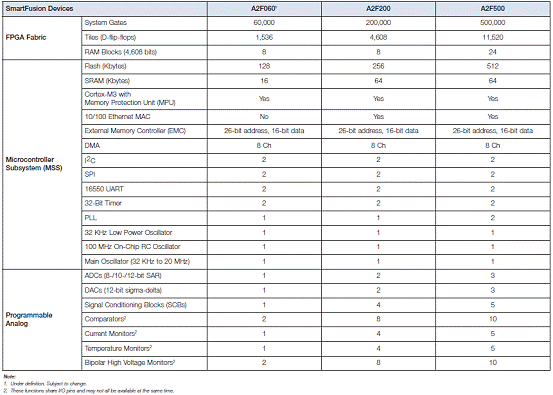

SmartFusion 系列參數表：

SmartFusion 系列的應用：

馬達控制：

SmartFusion intelligent mixed signal FPGAs are uniquely suited to ac tive motor control for permanent magnet motors, servo motors, series motors, separately excited

motors and alternating current induction motors. A SmartFusion FPGA can actively manage multiple electric motors, including start and stop, control of rotational

direction, speed and torque, protection against motor overloads or faults and active control using closed loop performance algorithms. SmartFusion on-chip resources

allow you to monitor motor performance in real time with or without dedicated encoders, applying corrective control signals to maintain commanded direction, speed

and torque and deliver precise motor position control.

Actel’s motor control partner, Power and Control Design, Inc.,

has produced a SmartFusion Motor Control Development Kit

that enables demonstration and benchtop development of

your world-class permanent magnet motor control products.

The kit includes five reference designs with source files:

? Trapezoidal using Hall effect sensor feedback

? Sinusoidal using Hall effect sensor feedback

? Sinusoidal with encoder feedback

? Sensorless trapezoidal with back-EMF feedback

? Ethernet interactive control of motors

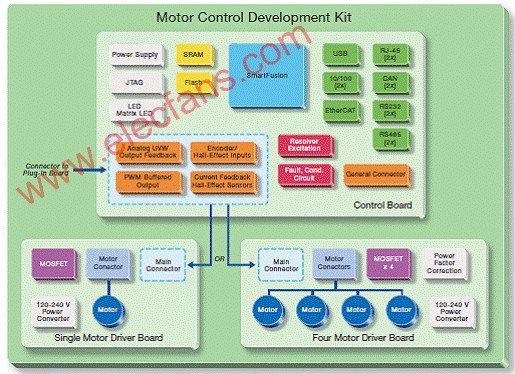

圖3。馬達控制開發套件

工業自動化：

The range of peripherals SmartFusion offers for the Cortex-M3 processor and the flexibility of its FPGA fabric make the device ideal for industrial automation. The

SmartFusion Development Kit supports Ethernet, EtherCAT, CAN, UART, I2C and SPI hardware, while firmware can be used for various other interface standards such

as Modbus? and PROFIBUS for industrial networking. With the use of the programmable analog for sensing and analog outputs, SmartFusion can also be used in

industrial control applications, including gateways, sensing, actuators and I/O devices. The list below describes how the various sections of the device could be used

in industrial automation.

Microcontroller Subsystem

? ARM Cortex-M3 running Fieldbus protocol stack

? Ethernet MAC – standard protocols

FPGA Fabric

? Multiple RS485 capable UARTs

- PROFIBUS, Modbus, WorldFIP, P-NET

? High Speed Manchester Encoding/Decoding

? CAN

Analog

? ADC for sensing

? DAC for excitation

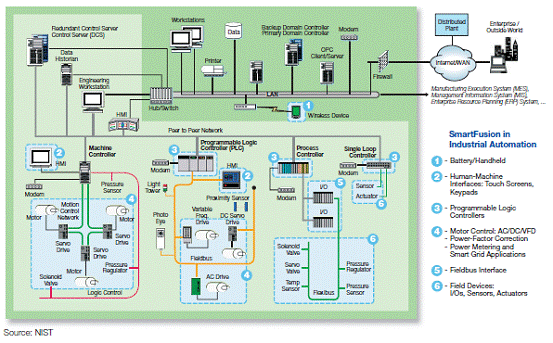

圖4。工業自動化應用框圖

Actel SmartFusion?開發工具套件

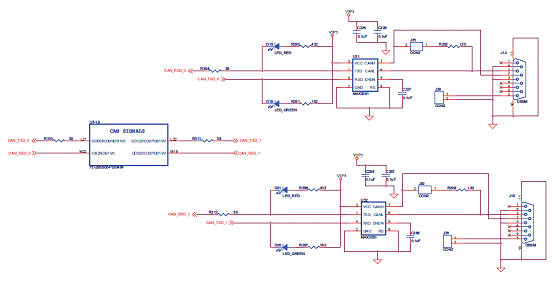

Actel SmartFusion?開發工具套件備有功能齊全的開發電路板，讓用戶可以試用世界唯一帶有ARM? Cortex?-M3硬核處理器和可編程模擬資源的FPGA器件。該器件包含片上閃存和片上SRAM存儲器，以及附加的片外存儲器。這塊電路板能夠通過以太網和HyperTerminal進行通信。它還包括 LED、開關、OLED，和包括有電壓軌監控、電流POT、溫度二極管及采用有源雙極預定標器(ABPS)的電壓掃描等豐富的模擬測試功能。聯網接口包括以太網PHY、EtherCAT、CAN、UART和 RS485。

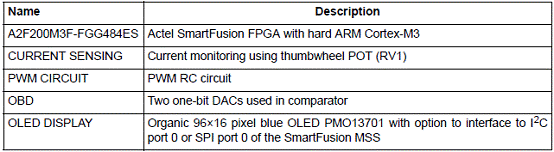

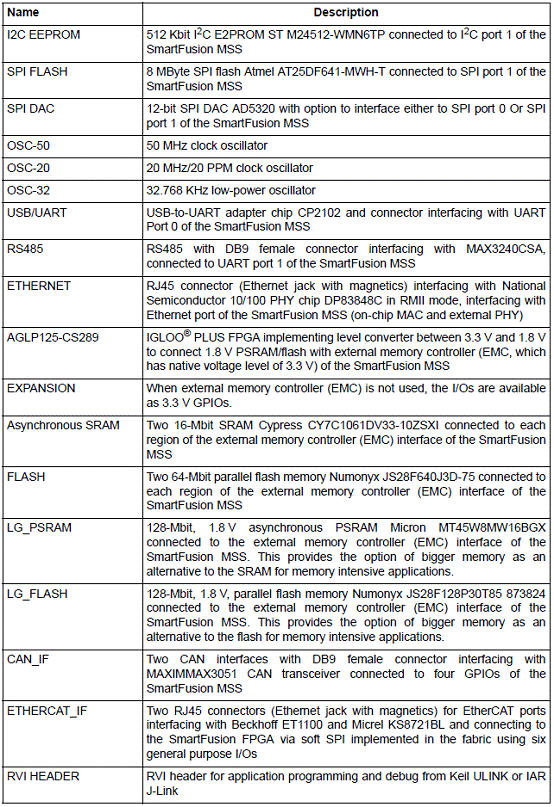

The board supports a SmartFusion device in an FG484 package. To enable the MSS, analog, and evaluation of features, the board includes the following:

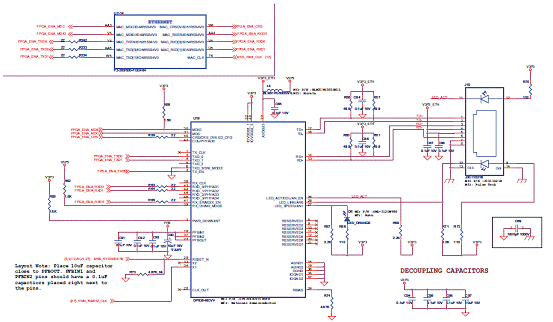

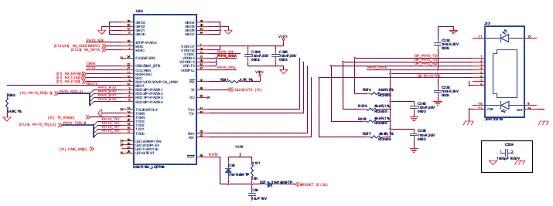

? Ethernet, EtherCAT and USB-to-UART interface for communication with Ethernet and UART peripherals of the SmartFusion MSS

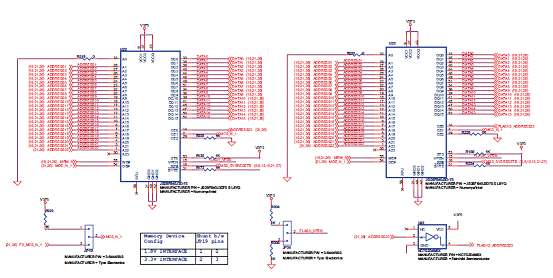

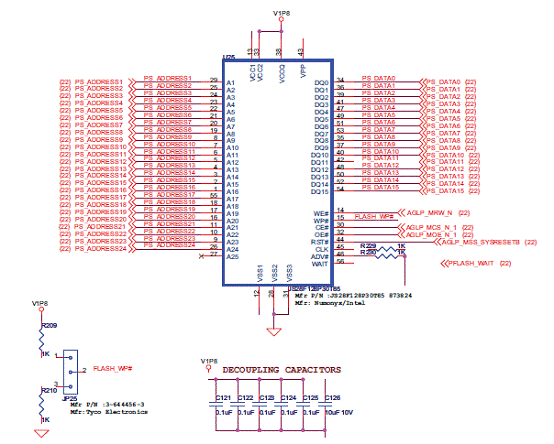

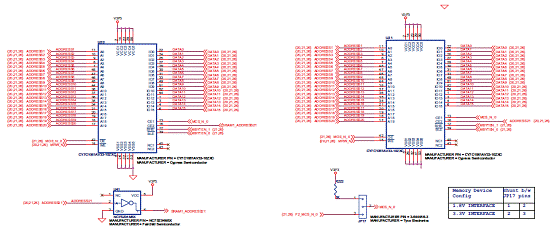

? SRAM, parallel flash, SPI flash and EEPROM that interface with EMC, SPI, and I2C peripherals of the SmartFusion MSS

? Digital-to-analog converter (DAC) that interfaces either to SPI port 0 Or SPI port 1 of the

SmartFusion MSS

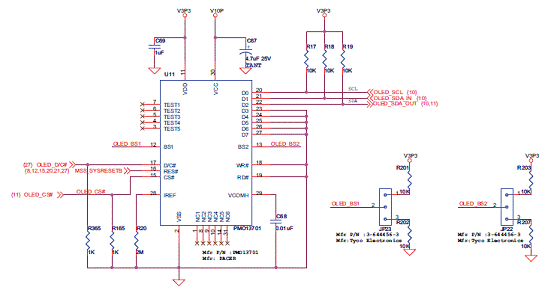

? Organic light-emitting diode (OLED) that interfaces with either SPI or I2C peripherals of the SmartFusion FPGA MSS

? I2C interface, temperature monitoring

? Mixed-signal header for daughter card interfacing

? RVI header for application programming and debug from either Keil? ULINK? or IAR J-link?

The board includes a FlashPro4 programming header to enable programming and debugging from Actel design tools FlashPoint and SoftConsole.

The RoHS-compliant SmartFusion? Development Kit (A2F-DEV-KIT) enables designers to develop applications that involve one or more of the following:

? Microcontroller applications

? Real-time operating system (RTOS)/OS development

? Embedded ARM? Cortex?-M3–based systems

? Motor control

? System management

? Power sequencing, trimming, and management

? Touch screen display control

? Audio processing

? FieldBus? demonstrator

? EtherCAT?

? Industrial network

The board also provides a standard 100-pin mixed-signal header for interfacing to the analog pins. This provides access for plugging in a daughter board with a mixed-signal interface.
