Intel MAX 10 FPGA系列低成本開發方案大合集

Intel公司的MAX 10 FPGA系列采用TSMC 55nm NOR閃存技術,容量從2K到50K 邏輯單元(LE),采用單個或雙核電源電壓和小尺寸3x3mm和高I/O引腳數封裝;器件具有全特性FPGA功能,支持Nios II軟核嵌入處理器,數字信號處理(DSP)區塊以及軟DDR3存儲器控制器,內部存儲雙配置閃存,用戶閃存存儲器,集成了模數轉換器(ADC).主要用在系統管理,I/O擴展,通信控制,工業應用,汽車電子和消費類電子.本文介紹了Intel? MAX? 10 FPGA系列主要優勢,器件平面布局圖以及MAX 10 FPGA開發套件主要特性和電路圖.

Intel? MAX? 10 FPGAs revolutionize non-volatile integration by delivering advanced processing capabilities in a low-cost, single chip small form factor programmable logic device. Building upon the single chip heritage of previous MAX device families, densities range from 2K – 50K LEs, using either single or dual-core voltage supplies. The MAX 10 FPGA family encompasses both advanced small wafer scale packaging (3 mm x 3 mm) and high I/O pin count packages offerings.

MAX 10 FPGAs are built on TSMC’s 55 nm embedded NOR flash technology, enabling instant-on functionality. Integrated features include analog-to-digital converters (ADCs) and dual configuration flash allowing you to store and dynamically switch between two images on a single chip. Unlike CPLDs, MAX 10 FPGAs also include full-featured FPGA capabilities, such as Nios? II soft core embedded processor support, digital signal processing (DSP) blocks, and soft DDR3 memory controllers.

Intel? MAX? 10 devices are single-chip, non-volatile low-cost programmable logic devices (PLDs) to integrate the optimal set of system components.

The highlights of the Intel MAX 10 devices include:
? Internally stored dual configuration flash
? User flash memory
? Instant on support
? Integrated analog-to-digital converters (ADCs)
? Single-chip Nios II soft core processor support
The MAX? 10 devices consist of the following:
? Logic array blocks (LABs)
? Analog-to-digital converter (ADC)
? User flash memory (UFM)
? Embedded multiplier blocks
? Embedded memory blocks (M9K)
? Clocks and phase-locked loops (PLL)
? General purpose I/O
? High-speed LVDS I/O
? External memory interfaces
? Configuration flash memory (CFM)
Intel MAX 10 devices are the ideal solution for system management, I/O expansion,
communication control planes, industrial, automotive, and consumer applications.

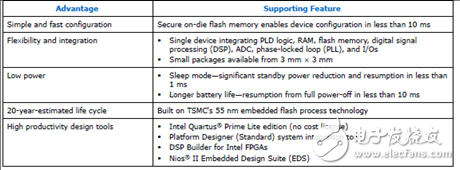

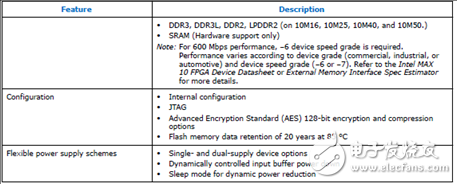

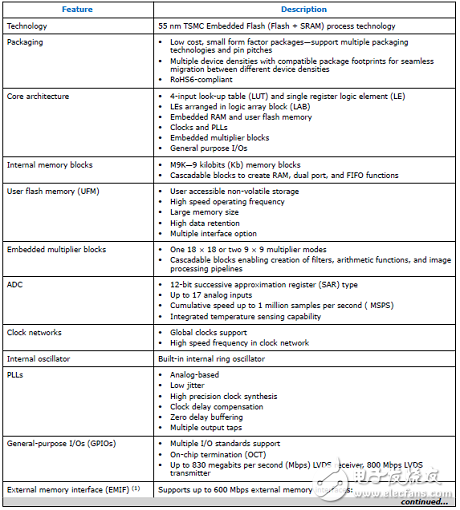

Intel? MAX? 10 FPGA系列主要優勢:

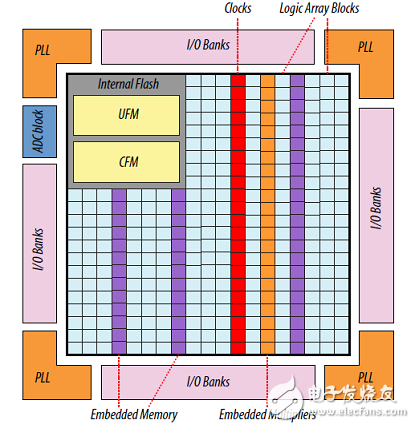

圖1. Intel? MAX? 10 FPGA器件平面布局圖

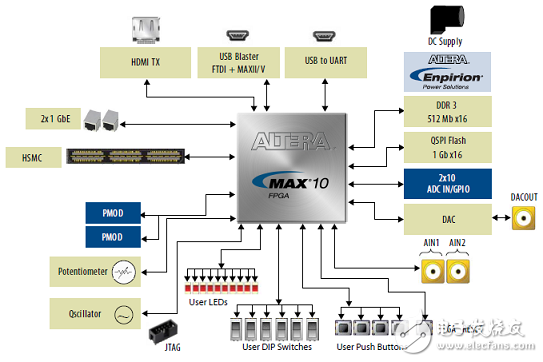

MAX 10 FPGA開發套件

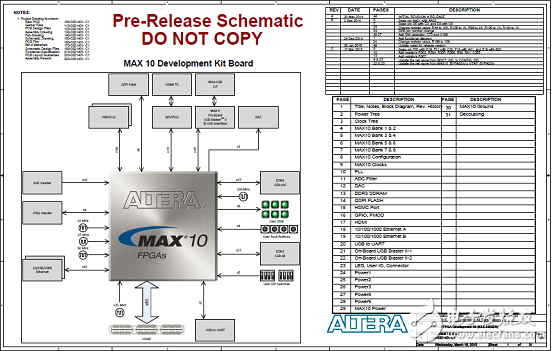

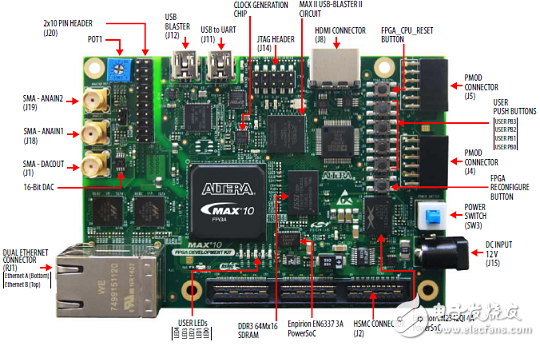

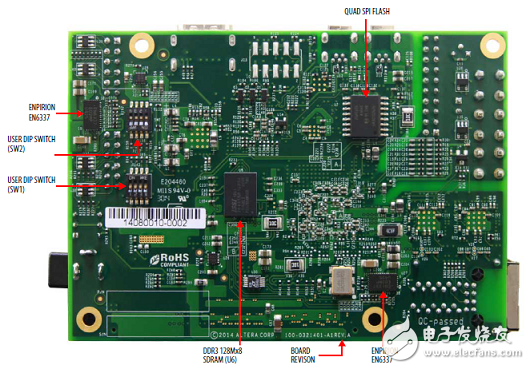

The MAX? 10 FPGA development board provides a hardware platform for evaluating the performanceand features of the Altera? MAX 10 device.
The development kit includes a RoHS- and CE-compliant MAX 10 FPGA Development board with thefollowing components:

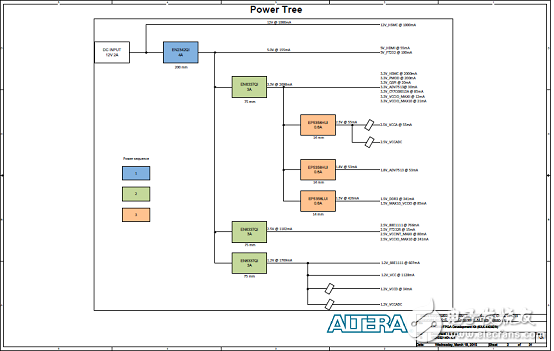

? Featured Devices:
? MAX 10 FPGA (10M50D, dual supply, F484 package)

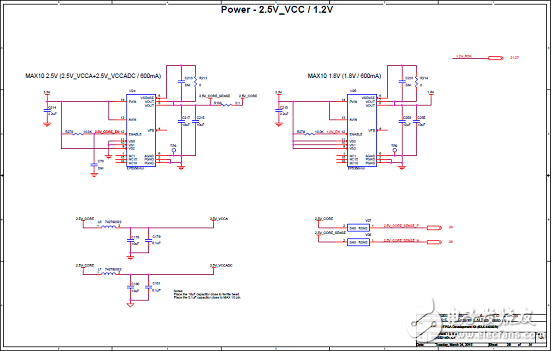

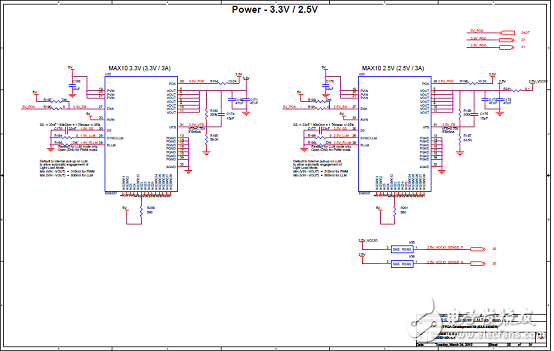

? Enpirion? EN2342QI 4 A PowerSoC Voltage-Mode Synchronous Step-Down Converter withIntegrated Inductor Enpirion
? EN6337QI 3 A High-Efficiency PowerSoC DC-DC Step-Down Converters with Integrated Inductor
? Enpirion EP5358xUI 600 mA PowerSoC DC-DC Step-Down Converters with Integrated Inductor

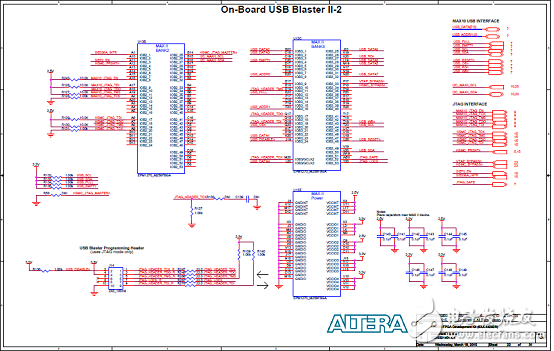

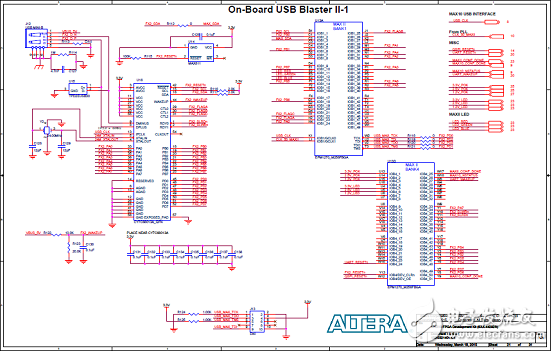

? MAX II CPLD – EPM1270M256C4N (On-board USB-Blaster? II)
? Programming and Configuration:
? Embedded USB-Blaster II (JTAG)
? Optional JTAG direct via 10-pin header
? Memory Devices:

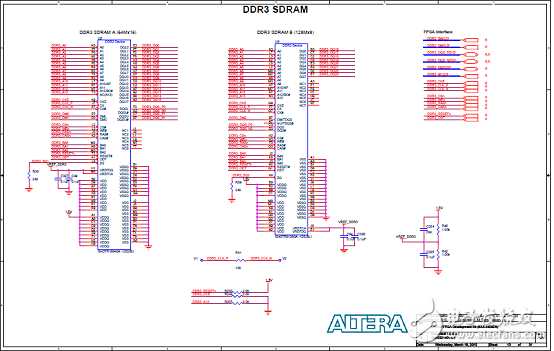

? 64-Mx16 1 Gb DDR3 SDRAM with soft memory controller
? 128-Mx8 1 Gb DDR3 SDRAM with soft memory controller
? 512-Mb Quad serial peripheral interface (quad SPI) flash
? Communication Ports:

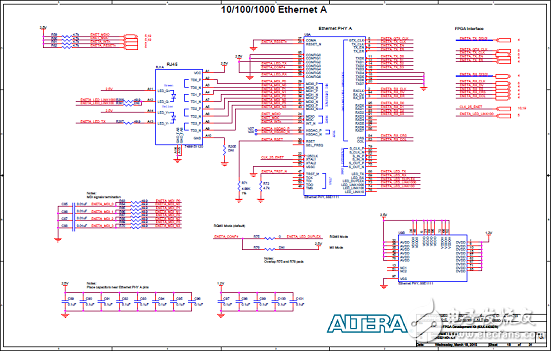

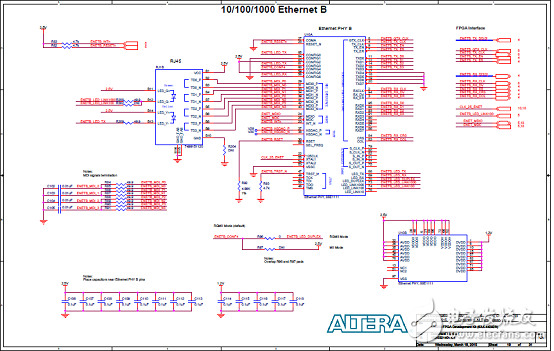

? Two Gigabit Ethernet (GbE) RJ-45 ports
? Ethernet Port A (Bottom)
? Ethernet Port B (Top)

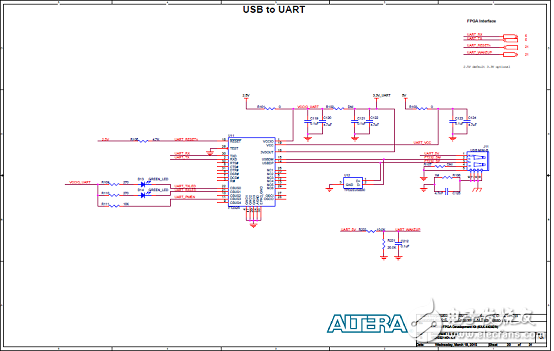

? One mini-USB2.0 UART

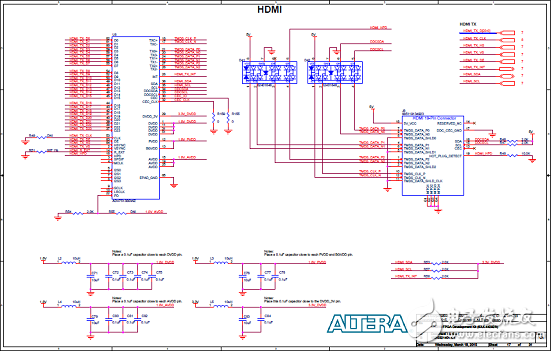

? One high-definition multimedia interface (HDMI) video output

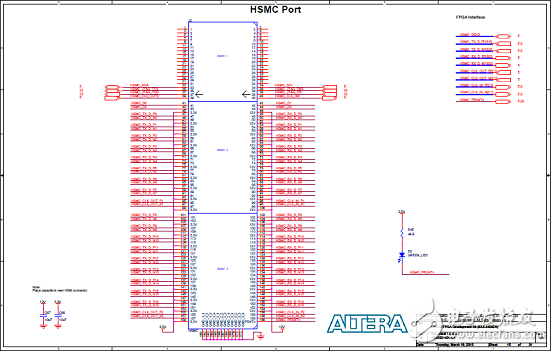

? One universal high-speed mezzanine card (HSMC) connector

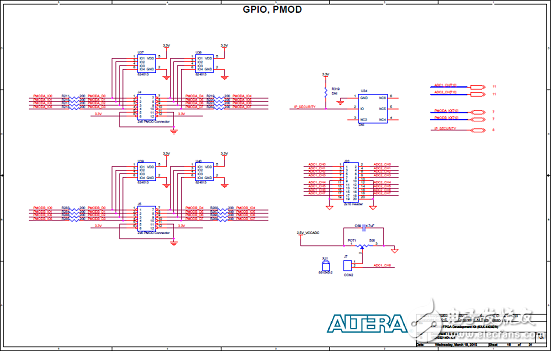

? Two 12-pin DigilentPmod? compatible connectors

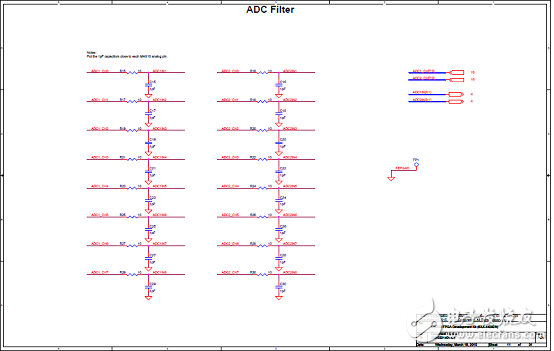

? Analog:

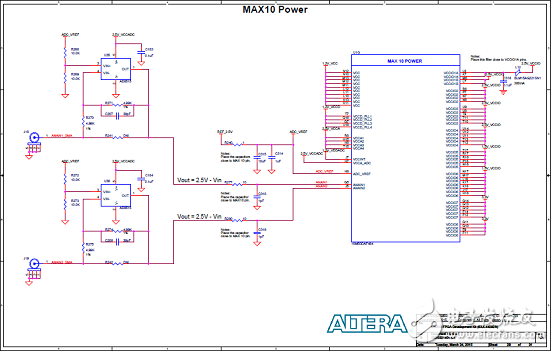

? Two MAX 10 FPGA analog-to-digital converter (ADC) SMA inputs
? 2x10 ADC header
? Potentiometer input to ADC

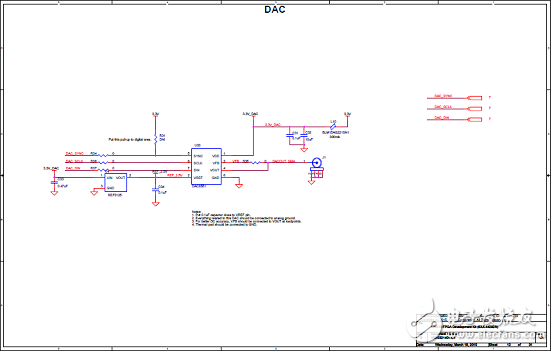

? One external 16 bit digital-to-analog converter (DAC) device with SMA output

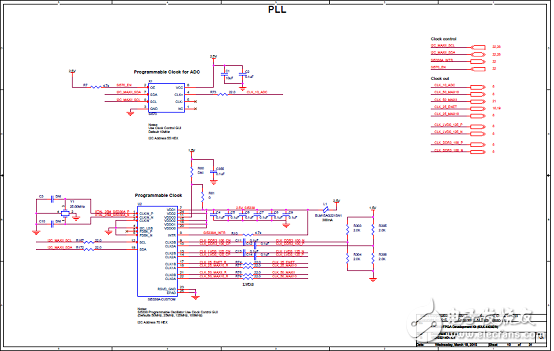

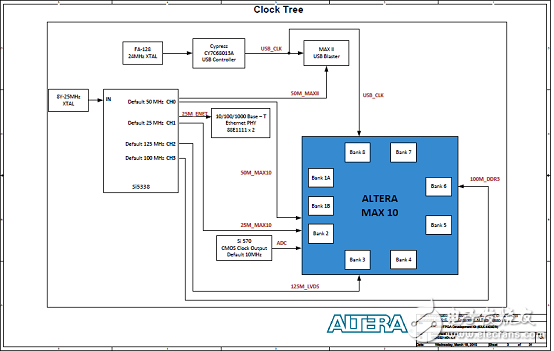

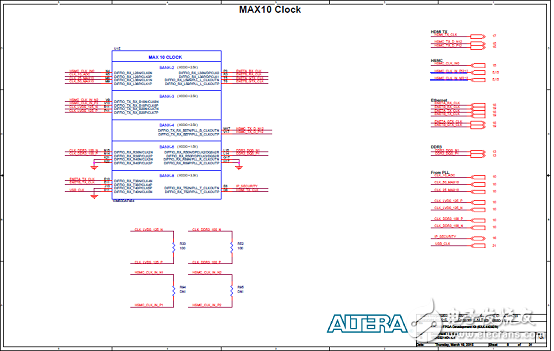

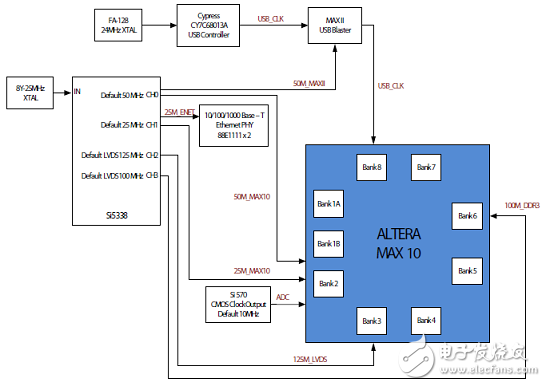

? Clocking
? 25 MHz single-ended, external oscillator clock source
? Silicon labs clock generator with programmable frequency GUI
? Mini-USB cable for on-board USB-Blaster? II

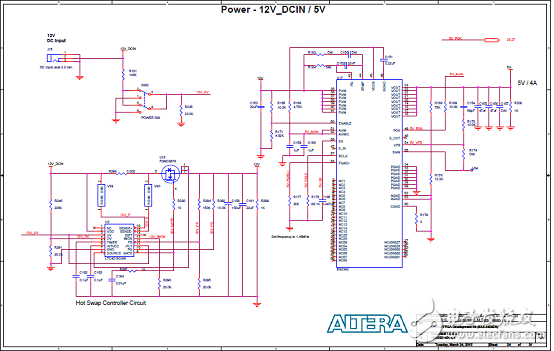

? 2A Power Supply and cord
? Free Quartus? II Web Edition design software (download software and license from website)
? Complete documentation

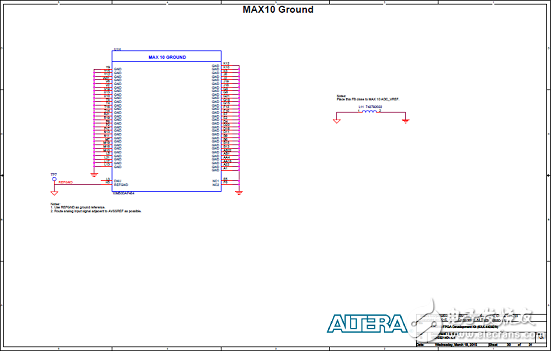

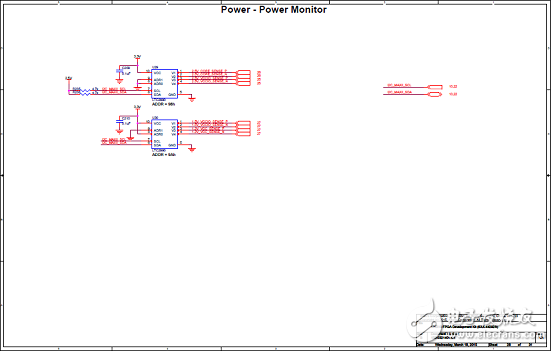

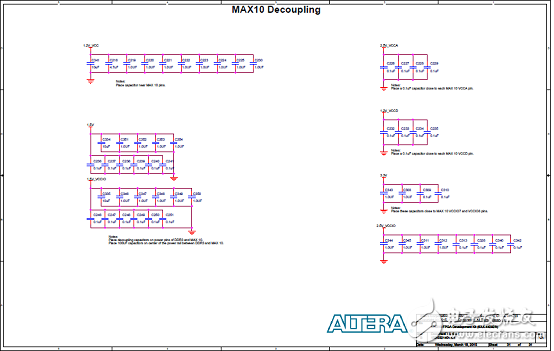

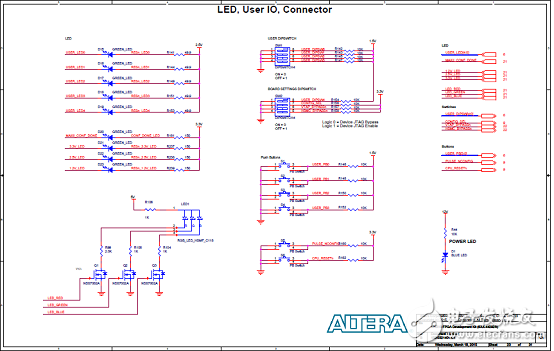

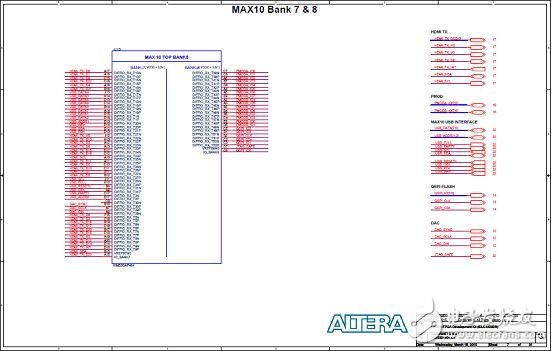

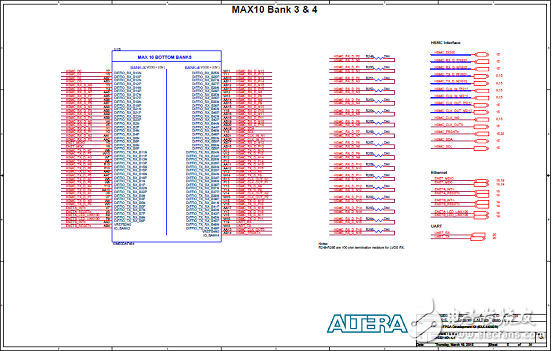

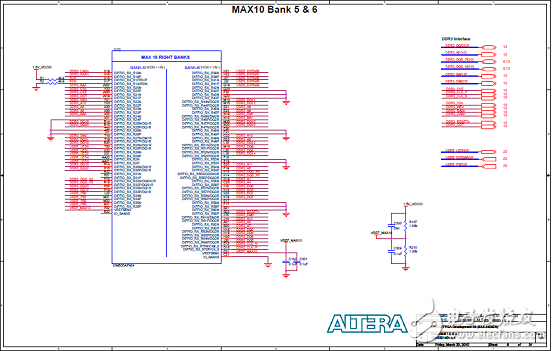

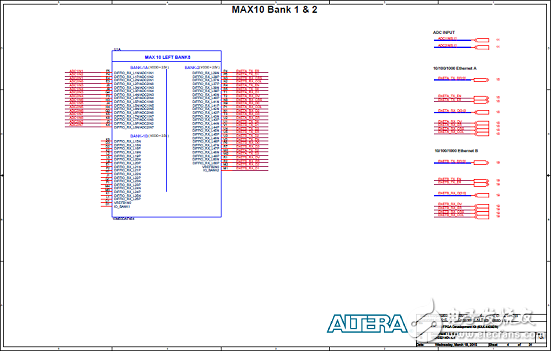

? User manual, bill of materials, schematic, and board files
